Vaisala Indigo 510 | Indigo 500 Series Transmitter | 100-240 VAC, IP66

Name: Vaisala Indigo 510 | Indigo 500 Series Transmitter | 100-240 VAC, IP66
Brand: VAISALA
SKU: Indigo 510
Availability: InStock

Part Number : Indigo 510

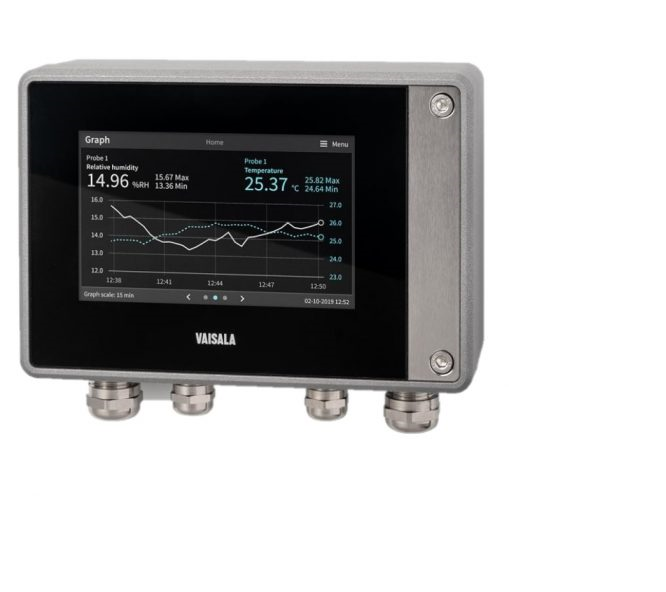

The Vaisala Indigo 510 is an Indigo 500 series industrial transmitter for standalone smart probes, powered from 100 to 240 VAC (50/60 Hz). Measurements are shown on a graphical touchscreen and can be passed to automation systems through relays, analogue signals or Modbus TCP/IP.

Plug-and-play probes, easy to remove for calibration
Touchscreen for local data and probe configuration
Mechanical support for wall-mounted probe installation
Metal enclosure rated IP66 and NEMA 4

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Part Number	Indigo 510
Brand	Vaisala
Display	Graphical, touch screen interface
Power	100 to 240 VAC 50/60 Hz
Protection	IP66

The Vaisala Indigo 500 Transmitter family comes in two versions:

Transmitter Vaisala Indigo 510.

Two analogue outputs from a single probe input (such as RH&T from a single probe).

Transmitter Vaisala Indigo 520.

permits two relay switches, four analogue outputs, and up to two probe inputs.
For instance, the heated HMP7 sensor and separate TMP1 temperature probe would necessitate the use of the Indigo 520.

Vaisala Indigo 500 offers the following probe options:

Humidity and temperature probes: HMP1, HMP3, HMP4, HMP5, HMP7, HMP8, HMP9, and TMP1
Dew point probes: DMP5, DMP6, DMP7, DMP8
CO2 probes: GMP251, GMP252
Vaporized hydrogen peroxide probes: HPP271, HPP272
MMP8 moisture in oil probe
