Wohler 1388 | IR Temp 310 Infrared Thermometer | -60 to 550 °C, 12:1, Adjustable Emissivity
The Wöhler IR Temp 310 is a handheld non-contact infrared thermometer for measuring surface temperatures from -60 to +550 °C with a 12:1 distance-to-spot ratio. A laser circle marks the measured area, and readings can be stored together with the emissivity setting. It is used to find thermal bridges and temperature differences on walls, ceilings and pipes, including hard-to-reach places.
Key features
- Non-contact measurement from -60 to +550 °C, resolution 0.1 °C
- Adjustable emissivity from 0.10 to 1.00
- Laser circle marks the measuring area
- Shows current, maximum or minimum temperature
- Stores 50 data sets including the emissivity factor
- Backlit display and quick response time (1 s to 90%)
- Optional Type K external sensor input (-64 to +1400 °C)
- Specifications
- Features
- Downloads
| Part Number | 1388 |
| Brand | Wöhler |
| Measuring Range (IR) | -60 to +550 °C (-76 to +1022 °F) |
| Resolution | 0.1 °C / 0.1 °F |
| Emissivity | 0.10 to 1.00, adjustable (default 0.95) |
| Distance-to-Spot Ratio | 12:1 |
| Response Time | 1 s to 90% |
| External Sensor (optional) | Type K thermocouple, -64 to +1400 °C |
| Data Memory | 50 data sets (temperature and emissivity) |
| Display | Backlit colour display |
| Power Supply | 2 x AAA 1.5 V |
| Operating Temperature | 0 to +50 °C |
| Dimensions | 53 x 124 x 171 mm |
| Weight | 240 g incl. batteries |
- Temperature measurement without physical contact, such as on wall surfaces.
- Determining the highest or minimum temperature is made possible by the display of the current temperature.
- 50 data sets (including the emission factor) can be stored.
- Safe measurement when working with high voltages or hostile compounds.
- Infrared measurement makes thermal bridges easy to detect.
- measuring the temperature in areas that are inaccessible.
- Quick identification of temperature variations.
- The surface's laser measuring circle provides an accurate measurement of the area.
Related Products
OPTEX FA PT-S80(E) | Non-Contact Infrared Thermometer | -30 to 600 °C, 33:1
OPTEX FA PT-S80(E) | Non-Contact Infrared Thermometer | -30 to 600 °C, 33:1
OPTEX FA PT-5LD(E) | Waterproof Handheld Infrared Thermometer | 0–500 °C, IP67, Laser Pointer
OPTEX FA PT-5LD(E) | Waterproof Handheld Infrared Thermometer | 0–500 °C, IP67, Laser Pointer
OPTEX FA PT-U80(E) | Non-Contact Infrared Thermometer | -30 to 600 °C, 33:1, USB Output
OPTEX FA PT-U80(E) | Non-Contact Infrared Thermometer | -30 to 600 °C, 33:1, USB Output
OPTEX FA PT-7LD(E) | Waterproof Handheld Infrared Thermometer | -30.0–200.0 °C, IP67, Laser Pointer
OPTEX FA PT-7LD(E) | Waterproof Handheld Infrared Thermometer | -30.0–200.0 °C, IP67, Laser Pointer
DeFelsko PRBIRT | PosiTector IRT Infrared Thermometer Probe Only | -70 to 380 °C, 5.7:1 D:S
DeFelsko PRBIRT | PosiTector IRT Infrared Thermometer Probe Only | -70 to 380 °C, 5.7:1 D:S
DeFelsko IRT3 | PosiTector IRT Infrared Thermometer, Advanced | -70 to 380 °C, 5.7:1 D:S
DeFelsko IRT3 | PosiTector IRT Infrared Thermometer, Advanced | -70 to 380 °C, 5.7:1 D:S
DeFelsko IRT1 | PosiTector IRT Infrared Thermometer, Standard | -70 to 380 °C, 5.7:1 D:S
DeFelsko IRT1 | PosiTector IRT Infrared Thermometer, Standard | -70 to 380 °C, 5.7:1 D:S

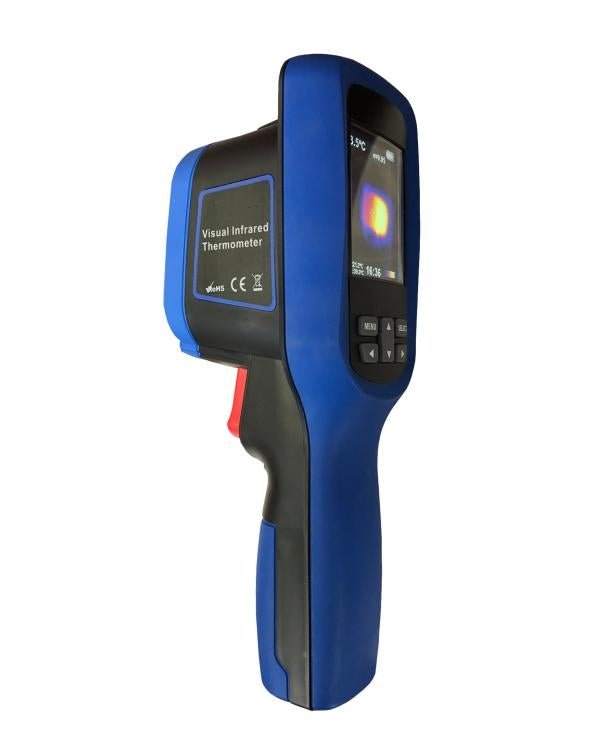

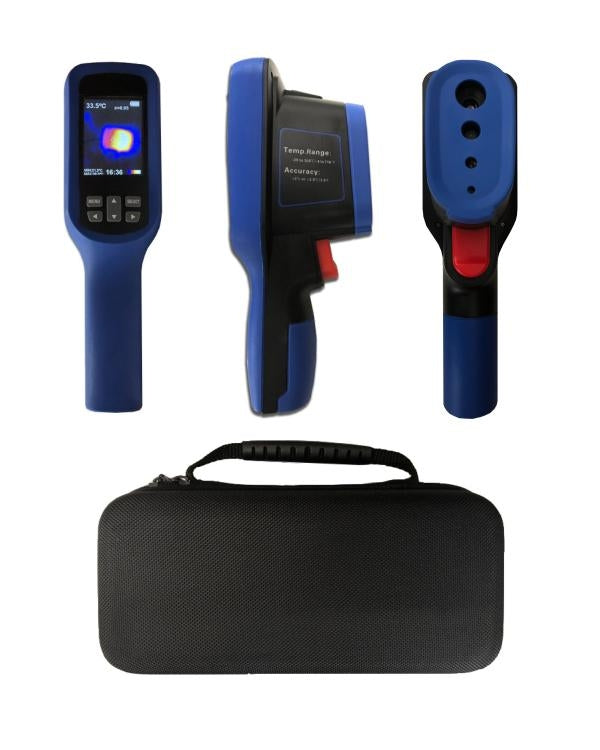

Brannan 38/709/0 | Thermal Imager Visual Infrared Thermometer | -20 to +300 °C, 60 x 60 IR
