How to Read a Micrometer Correctly (Beginner’s Guide)
Reading a micrometer means adding together three scale values — the sleeve’s main scale, the sleeve’s half-millimeter line (if visible), and the thimble scale — to get a measurement accurate to 0.01mm or 0.001 inch. It takes a bit of practice to do quickly, but the method itself is simple once you know what each part of the scale represents.

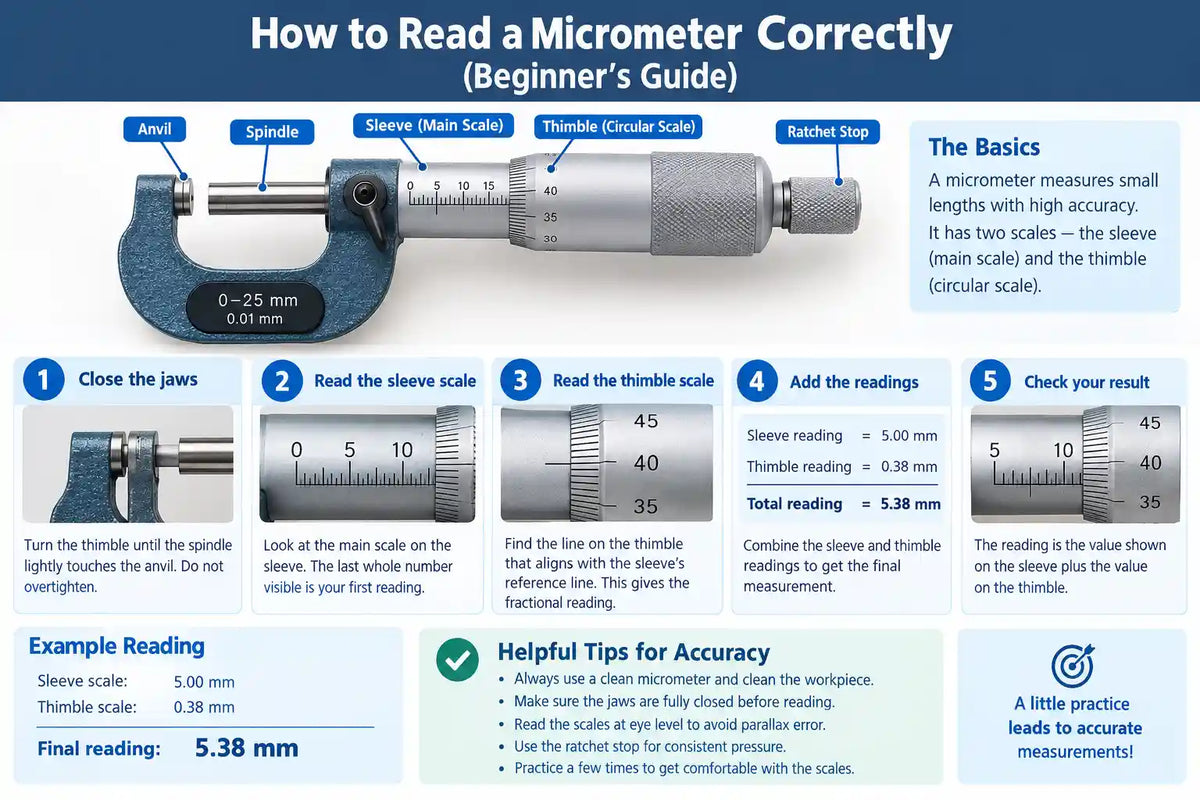

What Are the Parts of a Micrometer?
Before reading a micrometer, it helps to know what each part does, since the reading comes from two of them working together.
• Frame — the C-shaped body that holds everything together and provides rigidity for accurate measurement.
• Anvil and spindle — the two faces that contact the object being measured; the spindle moves, the anvil stays fixed.
• Sleeve (barrel) — the fixed scale marked with the main measurement lines.
• Thimble — the rotating sleeve marked with fine graduations that align with the sleeve’s reference line.
• Ratchet stop — a mechanism that applies consistent, limited pressure when closing the micrometer, preventing over-tightening that would throw off the reading.
Most outside micrometers measure a 25mm or 1-inch range per unit, so the correct micrometer size needs to be chosen for the object being measured.
How Do You Read a Micrometer in mm?
Reading a metric micrometer in millimeters involves adding two or three scale values together.
1. Read the sleeve’s main scale — count the number of visible millimeter lines, each representing 1mm.
2. Check for a half-millimeter line — if visible below the main scale, add 0.5mm to your reading.
3. Read the thimble scale — find which line on the thimble aligns with the sleeve’s horizontal reference line; each line typically represents 0.01mm.
4. Add the three values together — sleeve main scale + half-millimeter (if present) + thimble reading = total measurement.
For example, if the sleeve shows 5mm, the half-millimeter line is visible, and the thimble shows 0.27mm, the total reading is 5 + 0.5 + 0.27 = 5.77mm.
How Do You Read a Micrometer in Inches?
Reading an imperial (inch) micrometer follows the same principle but uses different scale units.
1. Read the sleeve’s main scale — each full line typically represents 0.025 inch (1/40 inch), grouped in sets of four to mark each 0.100 inch.
2. Note the number of visible lines — multiply the count by 0.025 to get the sleeve reading.
3. Read the thimble scale — each line typically represents 0.001 inch, since the thimble has 25 graduations across its 0.025 inch rotation.
4. Add sleeve reading and thimble reading together for the total measurement.
For example, if the sleeve shows 3 lines past the last 0.100 mark (0.075 inch) plus a 0.300 inch base reading, and the thimble shows 0.013 inch, the total is 0.300 + 0.075 + 0.013 = 0.388 inch.
A Complete Micrometer Scale Reading Guide, Step by Step
Whether in mm or inches, the overall process for reading any analog micrometer follows the same logical sequence.
• Step 1: Close the micrometer on the object using the ratchet stop, not the thimble directly, to apply consistent pressure.
• Step 2: Read the sleeve’s main scale value first — this gives the whole-number or near-whole-number portion of the measurement.
• Step 3: Identify the exact line on the thimble that aligns with the sleeve’s reference line.
• Step 4: Add the sleeve and thimble values together for the final reading.
• Step 5: Double-check by reading the measurement a second time before recording it.
How Do You Zero a Micrometer Before Use?
Zeroing confirms a micrometer reads exactly 0.00 when fully closed with no object between the anvil and spindle.
1. Close the micrometer gently using the ratchet stop until it clicks.
2. Check that the thimble’s zero line aligns exactly with the sleeve’s reference line.
3. If misaligned, use the adjustment tool (usually included) to rotate the sleeve until zero aligns correctly.
4. Re-check alignment after adjustment, and repeat if necessary.
Skipping this step is one of the most common sources of systematic measurement error, since every subsequent reading will be off by the same amount.
What Are the Most Common Micrometer Reading Mistakes?
A few recurring errors account for most beginner misreadings.
• Forgetting the half-millimeter line — missing this on a metric micrometer throws the reading off by exactly 0.5mm.
• Misreading which thimble line aligns — reading an adjacent line instead of the one precisely in line with the sleeve’s reference mark.
• Over-tightening with the thimble — applying force directly on the thimble instead of the ratchet stop compresses the part slightly and introduces error.
• Not accounting for temperature — handling the micrometer or workpiece with bare hands for extended periods can introduce thermal expansion error on tight-tolerance work.
• Skipping the zero check — using an unzeroed micrometer carries its error into every subsequent measurement.
Digital vs Analog Micrometer Reading: What Changes?
Digital micrometers remove the scale-reading step entirely, displaying the measurement directly on an LCD screen.
• No sleeve-and-thimble calculation is needed — the value appears as a direct numeric readout.
• Many digital models, including Mitutoyo’s Absolute (ABS) technology, retain their zero position even after power-off, reducing a common source of error.
• Digital micrometers typically offer accuracy around ±0.001mm (±0.00004 inch) on standard industrial models, matching or exceeding careful analog reading.
For training purposes, many QA departments still start new staff on analog micrometers, since understanding the scale builds a stronger foundational grasp of measurement principles than reading a digital number alone.
Outside Micrometer Reading Steps for Everyday Industrial Use
An outside micrometer — the most common type — follows a consistent routine in daily industrial use.
1. Clean the anvil, spindle, and the workpiece surface before measuring.
2. Open the micrometer wider than the object, then close gently using the ratchet stop.
3. Hold the micrometer steady and take the reading at eye level to avoid parallax error on analog scales.
4. Record the measurement, then release and re-measure once to confirm consistency.
Why Does Micrometer Accuracy and Precision Matter in QA Work?
Micrometer accuracy and precision directly affect whether a manufactured part passes or fails inspection against its specified tolerance.
• Standard mechanical micrometers typically offer accuracy around ±0.002mm to ±0.004mm across their range.
• High-accuracy digital models, such as certain Mitutoyo ranges, can achieve tighter tolerances suited to precision machining and calibration work.
• A micrometer’s accuracy is only reliable if it’s properly zeroed, used correctly, and calibrated on a regular schedule — typically every 12 months for instruments in daily industrial use.
General Tech Services has supplied genuine Mitutoyo micrometers as the UAE’s authorized Mitutoyo distributor since 1998, alongside ISO/IEC 17025 accredited calibration support for dimensional instruments.
FAQ: Reading a Micrometer
Q: Why does my micrometer reading seem inconsistent each time I measure the same part? Inconsistent pressure is the most common cause — always close the micrometer using the ratchet stop, not the thimble, to apply the same force every time.
Q: What does each full rotation of the thimble represent on a metric micrometer? One full thimble rotation typically moves the spindle 0.5mm, which is why the sleeve has a half-millimeter line that the thimble reveals or covers with each rotation.
Q: Can a beginner get accurate readings without much practice? With a careful, step-by-step approach — zeroing first, reading the sleeve, then the thimble — beginners can get reliable readings fairly quickly, though speed comes with practice.
Q: How often should an analog micrometer be checked against a reference standard? Most industrial micrometers in regular use are checked or calibrated every 12 months, with more frequent checks for high-precision or heavily used instruments.
Q: Is a digital micrometer more accurate than a well-read analog one? Not necessarily more accurate in raw mechanical terms, but digital models remove the reading-error risk that comes with manually interpreting sleeve and thimble scales.
