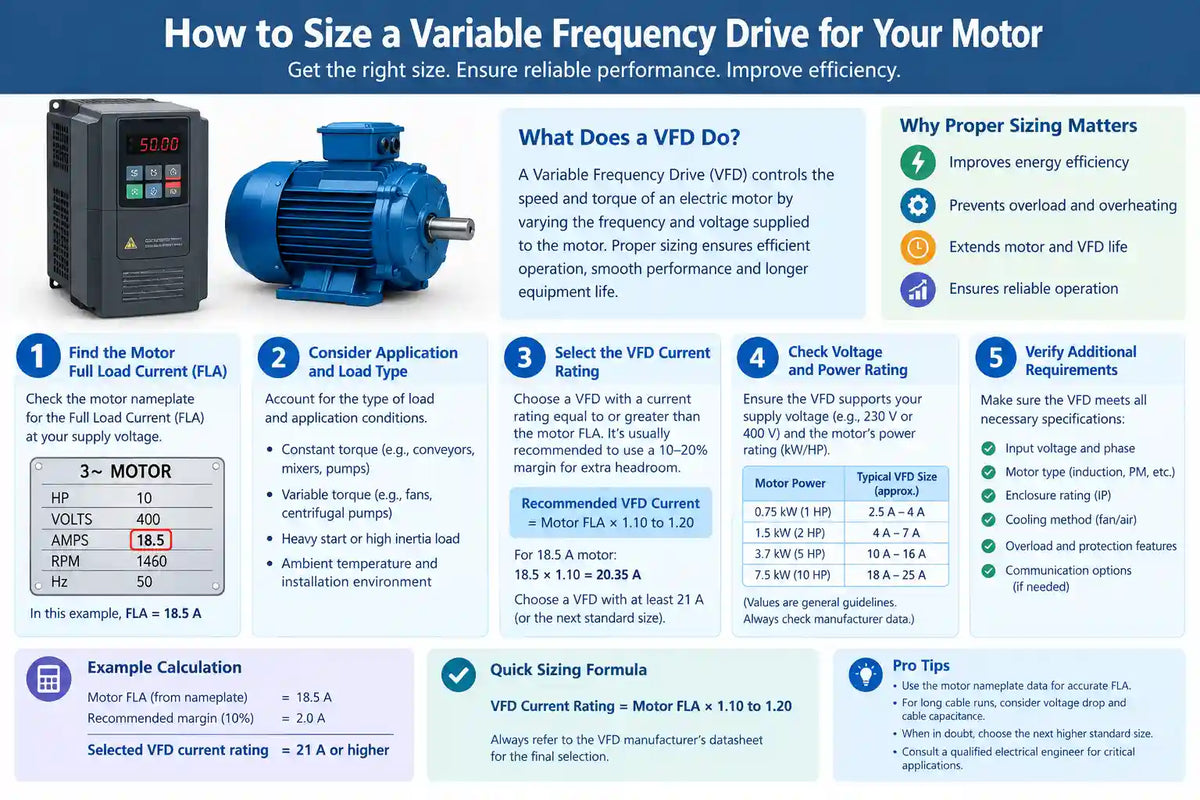

How to Size a Variable Frequency Drive for Your Motor
Sizing a VFD correctly means matching the drive’s rated output current — not just its horsepower label — to the motor’s full-load amps, then adjusting for voltage, altitude, temperature, and application-specific derating factors. Getting this wrong is one of the most common causes of nuisance trips and premature drive failure in industrial installations.
Why Does VFD Sizing Matter So Much?
A VFD sized incorrectly for its motor either trips unnecessarily or runs the motor without proper protection, and both outcomes cost money.
• An undersized VFD will overheat, trip on overcurrent, or fail prematurely under normal load.
• An oversized VFD costs more upfront and can reduce control sensitivity at low-speed, low-load conditions.
• Correct sizing also affects energy efficiency, since a mismatched drive-motor pairing rarely runs at its optimal operating point.
What Is the Basic VFD Sizing Calculation?
VFD sizing calculation starts with the motor’s full-load amperage (FLA), not its horsepower rating, since current is what actually determines the correct drive size.
1. Find the motor’s full-load amps (FLA) from its nameplate — this is the baseline figure the drive must handle continuously.
2. Match the VFD’s rated output current to equal or exceed the motor’s FLA, not just match the horsepower label.
3. Check the voltage class — the VFD’s input and output voltage ratings must match the motor and supply voltage exactly.
4. Apply any relevant derating factors for altitude, ambient temperature, or switching frequency before finalizing the selection.
Horsepower-based sizing charts are a useful starting point, but the motor’s actual nameplate current is always the figure that should drive the final decision.
How Do You Match a VFD to Motor Horsepower Correctly?
Matching VFD to motor horsepower is the simplified version of sizing, useful for quick selection but not a substitute for checking actual current ratings.
• VFD horsepower ratings are typically based on a standard 4-pole induction motor at rated voltage and standard conditions.
• A motor that’s more efficient, has a different pole count, or runs at non-standard voltage may draw different current than the horsepower chart assumes.
• Always cross-check the VFD manufacturer’s rated output current against the specific motor’s nameplate FLA, especially for motors outside typical NEMA/IEC standard designs.
Relying purely on a horsepower-to-horsepower match without checking current can lead to an undersized drive on motors with higher-than-typical current draw.
How Is VFD Sizing Different for Pumps and Fans?
VFD sizing for pumps and fans follows a different load profile than constant-torque applications like conveyors, which changes how aggressively the drive needs to be sized.
• Centrifugal pumps and fans are variable-torque loads, meaning torque demand drops sharply at lower speeds, following the affinity laws.
• This generally allows VFDs for pumps and fans to be sized closer to the motor’s exact rating, without the extra margin needed for constant-torque starting loads.
• However, pumps with high static head or fans with high static pressure may still require full starting torque, so the application’s specific load curve should be checked rather than assumed.
Oversizing a VFD “just in case” on a standard pump or fan application usually just adds unnecessary cost without a meaningful performance benefit.
What Happens with an Oversized vs Undersized VFD?
The oversized vs undersized VFD trade-off affects cost, performance, and reliability in different ways.
• Undersized VFD: overheats under normal load, trips on overcurrent faults, and experiences accelerated component wear from running near or beyond its rated limits.
• Oversized VFD: costs more to purchase, may reduce current sensing resolution at low loads, and can make certain protective functions less precise for the actual motor being driven.
• Correctly sized VFD: runs within its rated thermal and electrical limits while providing accurate current-based motor protection.
A drive sized one frame size larger than strictly necessary is sometimes a reasonable safety margin; a drive sized multiple ratings larger typically indicates a sizing error rather than a deliberate safety choice.
What Are the Main VFD Derating Factors to Account For?
VFD derating factors reduce a drive’s usable output rating below its nameplate value under certain operating conditions.
• Altitude — most VFDs are rated for derating above 1,000 meters elevation, since reduced air density affects cooling efficiency.
• Ambient temperature — operation above the drive’s rated temperature (commonly 40°C) typically requires output current derating.
• Switching frequency — higher PWM carrier frequencies (used to reduce motor noise) often require output current derating due to increased switching losses.
• Altitude and temperature combined — in Gulf region installations with high ambient heat, enclosure ventilation and panel cooling become critical sizing considerations alongside the drive’s base rating.
Ignoring derating factors is a common reason a “correctly sized” drive on paper still overheats or trips in actual field conditions.
A Step-by-Step VFD Sizing Checklist
Bringing the above factors together, here’s a practical sequence for sizing a VFD correctly.
1. Record the motor’s full-load amps, voltage, and pole count from its nameplate.
2. Identify the load type — constant torque (conveyors, compressors) or variable torque (pumps, fans).
3. Select a VFD with rated output current equal to or greater than the motor’s FLA.
4. Check installation conditions — altitude, ambient temperature, and enclosure ventilation.
5. Apply any required derating factors and re-verify the selected drive still meets the motor’s current requirement.
6. Confirm voltage class and control type (open-loop vs closed-loop) match the application’s needs.
Why Professional VFD Sizing Support Matters
Incorrect VFD sizing is one of the most frequent causes of early drive failure and unplanned downtime across industrial facilities.
• A drive that trips repeatedly under normal operation often gets blamed on “a faulty drive” when the real issue is incorrect sizing from installation.
• Proper sizing considers not just nameplate horsepower but actual current draw, load type, and site-specific environmental conditions.
• General Tech Services supports VFD selection, sizing, and supply backed by over 30 years of engineering experience with industrial motor and drive systems across the UAE.
FAQ: Sizing a Variable Frequency Drive
Q: Can I size a VFD using horsepower alone without checking the motor’s FLA? It’s a reasonable starting point, but the motor’s actual full-load amperage should always be checked against the drive’s rated output current before finalizing the selection.
Q: Does a VFD need to be sized larger for a pump than for a conveyor of the same horsepower? Generally no — pumps and fans are variable-torque loads needing less starting torque margin than constant-torque loads like conveyors, so sizing can often be tighter for pump/fan applications.
Q: What’s a safe margin to add when sizing a VFD? A small margin, such as one frame size above the calculated minimum, is common practice; multiple sizes larger usually signals an unnecessary oversizing rather than genuine safety margin.
Q: How much does ambient temperature actually affect VFD sizing? Operating above a drive’s rated temperature (commonly 40°C) typically requires output current derating, which can be significant in hot industrial or outdoor Gulf-region environments.
Q: Is it worth paying more for a slightly oversized VFD as insurance against future motor upgrades? Sometimes, if a future motor upgrade is genuinely planned — but sizing for a hypothetical future load rather than the actual current motor adds cost without immediate benefit.
