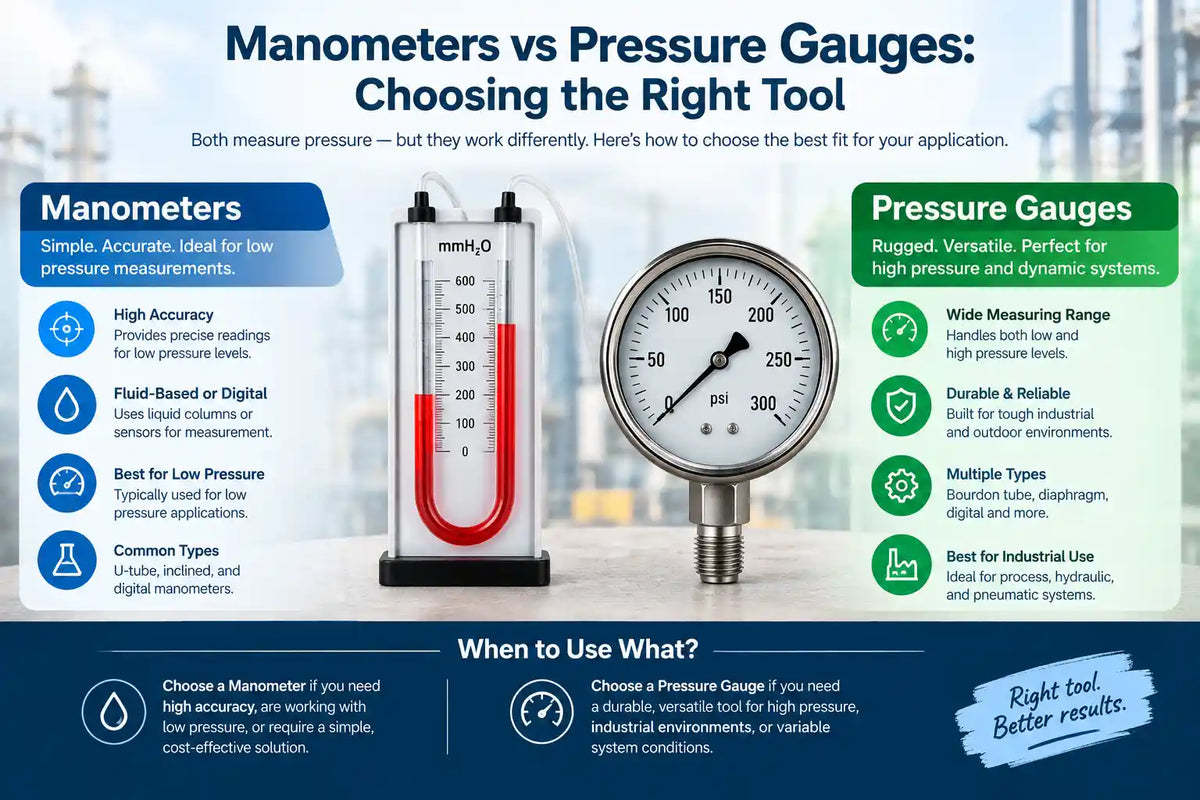

Manometers vs Pressure Gauges: Choosing the Right Tool
A manometer measures pressure by comparing it against a reference — often used for low-pressure and differential readings — while a pressure gauge uses a mechanical element like a Bourdon tube to display pressure directly on a dial. Both measure pressure, but they’re built for different pressure ranges and levels of precision.
What Is a Manometer Used For?
A manometer measures gas or liquid pressure by comparing it to a reference pressure, traditionally using a column of liquid but now more commonly a digital sensor.
• HVAC system testing — checking duct static pressure, filter pressure drop, and airflow balance.
• Gas pressure verification — confirming supply pressure on gas lines before equipment commissioning.
• Cleanroom and lab pressure differential monitoring — verifying pressure relationships between adjoining spaces.
• Combustion and boiler tuning — measuring draft pressure and gas train pressures during setup.
Manometers are particularly suited to low-pressure measurements, often in the range of inches of water column (in. w.c.), where standard pressure gauges lack sufficient resolution.
What Are the Main Pressure Gauge Types?
Pressure gauges cover a much wider pressure range than manometers and come in several distinct types.
• Bourdon tube gauges — the most common mechanical gauge, using a curved tube that straightens slightly under pressure to move a pointer.
• Diaphragm gauges — use a flexible diaphragm, suited to lower pressures and viscous or corrosive media.
• Digital pressure gauges — use an electronic pressure sensor with a numeric LCD display instead of a mechanical needle.
• Differential pressure gauges — measure the difference between two pressure points, commonly used for filter monitoring and flow calculation.
Standard industrial Bourdon tube gauges commonly cover ranges from a few PSI up to several thousand PSI, far beyond typical manometer ranges.
Digital Manometer vs Analog: What’s the Real Difference?
The digital manometer vs analog comparison mainly comes down to reading method, accuracy, and functionality beyond a simple pressure value.
• Analog (liquid column) manometers — read pressure via the height of a liquid column against a printed scale, requiring the user to read the level visually.
• Digital manometers — use an electronic pressure sensor with a numeric display, often accurate to within 0.05% to 0.5% of reading depending on the model.
• Data logging — many digital manometers can log readings over time or hold a maximum/minimum value, which analog units cannot do.
• Portability and setup time — digital units typically start up faster and don’t require filling or leveling a liquid column.
For most modern HVAC and industrial applications, digital manometers have largely replaced liquid-column models, though analog units remain valued for their simplicity and lack of battery dependency.
What Is a Differential Pressure Manometer, and When Do You Need One?
A differential pressure manometer measures the pressure difference between two points rather than pressure relative to atmosphere.
1. Filter monitoring — rising differential pressure across an HVAC filter signals it needs replacement.
2. Flow measurement — differential pressure across an orifice plate or venturi correlates directly to flow rate.
3. Room pressurization verification — confirming a cleanroom or isolation room maintains the correct pressure relationship to adjacent spaces.
4. Duct and damper balancing — verifying airflow distribution across an HVAC system during commissioning.
Differential pressure manometers typically offer finer resolution at low pressure differentials than a standard single-point pressure gauge could provide.
When Should You Use a Manometer Instead of a Pressure Gauge?
Choosing between a manometer and a pressure gauge usually comes down to pressure range and required resolution.
• Use a manometer for low-pressure applications — HVAC ductwork, gas line testing, and differential pressure work in the inches-of-water-column range.
• Use a pressure gauge for higher-pressure industrial applications — hydraulic systems, compressed air, and process piping typically measured in PSI or bar.
• Use a differential pressure manometer specifically when the measurement that matters is the difference between two points, not an absolute value.
Applying a standard pressure gauge to a low-pressure HVAC application often produces a reading too imprecise to be useful, since the gauge’s full-scale range is far larger than the actual pressure being measured.
How Accurate Are Manometers Compared to Pressure Gauges?
Manometer accuracy varies significantly by type, with digital precision manometers reaching the tightest tolerances available for pressure measurement.
• High-precision digital manometers can achieve accuracy as tight as ±0.05% of reading, suitable for calibration and critical process verification.
• Standard analog liquid-column manometers are typically accurate to within a small fraction of their scale division, sufficient for most HVAC balancing work.
• Standard industrial pressure gauges commonly carry accuracy grades of 1.0% to 2.5% of full scale, adequate for general monitoring but less precise at the low end of their range.
Because gauge accuracy is often specified as a percentage of full scale rather than of reading, a pressure gauge reading near the bottom of its range can carry a much larger relative error than the same reading on an appropriately-ranged manometer.
Manometer vs Pressure Transmitter: Are They the Same Thing?
A manometer gives a local, often visual reading; a pressure transmitter converts pressure into an electrical signal (commonly 4-20mA) for a control system to read remotely.
• Manometers are typically used for spot checks, commissioning, and troubleshooting rather than continuous automated monitoring.
• Pressure transmitters are built for permanent installation, feeding continuous data into a PLC, SCADA system, or building management system.
• Some digital manometers include a transmitter-style output option, blurring the line for facilities that want both a local display and a remote signal.
Why Does Pressure Gauge Calibration Matter?
Pressure gauge calibration verifies that a gauge’s displayed reading matches the true applied pressure, since mechanical gauges drift with age, vibration, and pressure cycling.
• A common industrial default is calibration every 12 months, though gauges in critical safety applications may need more frequent checks.
• Calibration should be traceable under ISO/IEC 17025 so results hold up under audit or customer inspection.
• A gauge that’s been over-pressurized, dropped, or shows a needle that doesn’t return to zero should be recalibrated or replaced immediately.
General Tech Services provides ISO/IEC 17025 accredited pressure calibration as one of 15 disciplines under its EIAC and ENAS accreditation scope, covering gauges, manometers, and transmitters alike.
FAQ: Manometers vs Pressure Gauges
Q: Can a manometer measure high pressures like a pressure gauge? Not typically — manometers are built for low-pressure and differential applications, while pressure gauges are designed for the higher ranges common in hydraulic and process piping systems.
Q: Is a digital manometer more accurate than an analog one? Often yes, particularly at low pressures, since digital sensors avoid the parallax and reading errors possible when visually reading a liquid column.
Q: What does “inches of water column” mean on a manometer scale? It’s a low-pressure unit equal to the pressure exerted by one inch of water, commonly used for HVAC and gas pressure measurements far below standard PSI ranges.
Q: Do manometers need calibration like pressure gauges do? Yes — both instrument types can drift from their true reading over time and should be calibrated on a scheduled interval against a traceable reference.
Q: Why would a facility choose a pressure transmitter over a manometer? When continuous, automated monitoring is needed rather than periodic manual checks, a pressure transmitter feeds a control system directly, which a standalone manometer cannot do.
