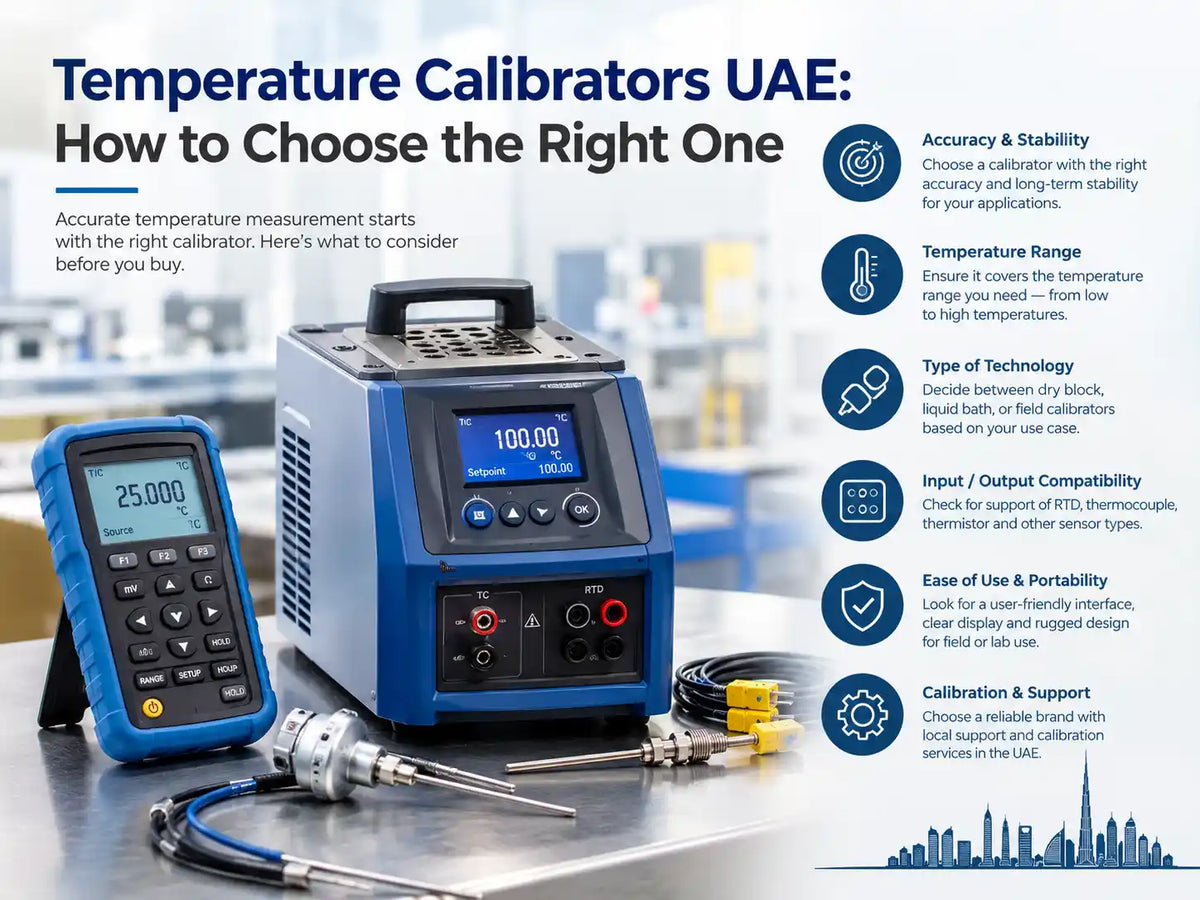

Temperature Calibrators UAE: How to Choose the Right One
Choose a temperature calibrator UAE labs trust when you need to simulate or measure thermocouple and RTD signals, and choose a dry block calibrator when you need to heat a sensor to a known temperature. Dry blocks are portable and fast, while liquid baths give better uniformity for odd-shaped probes. Most calibration teams end up needing both.
This guide to temperature calibrators UAE engineers and technicians use explains the differences, the specifications that matter, and how to choose.
What Is a Temperature Calibrator and What Does It Do?
A temperature calibrator UAE technicians carry is an electronic instrument that checks temperature sensors and the loops that read them. It can source or measure the signals that thermocouples and RTDs produce.
• Thermocouple signals — measured or simulated in millivolts for types such as K and J.
• RTD signals — measured or simulated in ohms, where a Pt100 sensor reads 100 ohms at 0 °C.
• Loop checks — many models also source or measure 4-20 mA signals to test transmitters.
Temperature calibration instruments UAE labs use for electrical checks do not heat the sensor itself, so a temperature calibrator UAE teams use for signals is only half the setup. For that, you need a heat source.
What Is a Dry Block Calibrator and How Does It Work?
A dry block calibrator is a heated metal block with holes, called inserts, that hold the sensor under test. A built-in controller brings the block to a set temperature, and you compare the sensor reading with a reference.
A dry block calibrator UAE crews take on site needs no liquid, warms up quickly and fits in a carry case. Many models cover roughly -30 °C to 650 °C depending on the design, and always check the exact range on the specification sheet.
Browse our temperature calibration equipment for dry block and handheld models suited to field and lab use.
What Are Dry Block Baths and How Do They Differ From Liquid Baths?
People often search for dry block baths UAE suppliers stock, but the term mixes two different tools. Dry block baths UAE buyers ask about are usually either a dry block or a stirred liquid bath. A dry block uses a metal block, while a liquid bath uses a stirred fluid.
• Dry blocks — portable, no fluid handling, fast to set up, ideal for field checks of standard probes.
• Liquid baths — better temperature uniformity, suited to short, odd-shaped or multiple sensors at once.
• Cost and weight — dry blocks are usually lighter and simpler, while baths need fluid and more care.
Dry Block vs Liquid Bath: Which Should You Choose?
The right tool depends on where you work and what you test.
• Choose a dry block calibrator UAE sites can carry for site work, routine checks and probes that match the insert holes.
• Choose a liquid bath for high-accuracy lab work, non-standard probe shapes and sensors that need full immersion.
• Choose both if your team handles field maintenance and accredited lab calibration.
How Do You Choose the Right Temperature Calibrator?
Choosing temperature calibrators UAE teams can rely on starts with your sensors and your accuracy needs. The same checks apply to any temperature calibration equipment UAE buyers compare.
1. Define the temperature range you need, including a margin above your highest process temperature.
2. Check sensor types — thermocouples, RTDs or both — and the signal ranges required.
3. Review stability and uniformity — stability shows how steadily the block holds a set point, and uniformity shows how evenly it heats the inserts.
4. Match the insert to your probe diameters, since a loose fit adds error.
5. Compare accuracy on the spec sheet with the tolerance your procedure requires.
6. Plan for a reference thermometer, since the block display alone is not a traceable reference.
What Is Immersion Depth and Why Does It Matter?
Immersion depth is how far the probe sits inside the block or bath. If the probe is not deep enough, heat conducts along the stem and the reading is wrong.
A common rule of thumb is to immerse the probe to at least 15 times its diameter plus the length of the sensing element. Always follow the manufacturer’s guidance for your tool and probe. Good temperature calibration instruments UAE suppliers offer will state the recommended immersion depth.
What Should UAE Buyers Consider Before Buying Temperature Calibration Equipment?
Local conditions affect which temperature calibration equipment UAE buyers should specify. Ambient temperatures regularly pass 45 °C in summer, which limits how far a dry block can cool below ambient.
• Cooling range — check the minimum temperature at your site conditions, not only in lab conditions.
• Power supply — confirm the tool runs on the UAE standard of 230 V, 50 Hz.
• Portability — look at weight, carry case and warm-up time for site work.
• Certificate — ask for a traceable calibration certificate, ideally from an ISO/IEC 17025 accredited laboratory.
For guidance on temperature standards, see the resources of the BIPM, which maintains the International Temperature Scale, ITS-90.
What Mistakes Should You Avoid When Using a Dry Block Calibrator?
Most errors with a dry block calibrator UAE users operate come from setup, not from the instrument.
• Skipping the stabilisation time — read the sensor only after the block settles at the set point.
• Using the wrong insert — a loose probe fit causes poor heat transfer.
• Ignoring immersion depth — shallow immersion causes stem conduction error.
• Trusting the display alone — use a reference thermometer when accuracy matters.
Why Does Calibration of Your Calibrator Matter?
A temperature calibrator UAE labs depend on is only as good as its own traceability. If the dry block or reference drifts, every sensor you check against it inherits that error.
General Tech Services provides 17025 calibration services as part of its EIAC and ENAS accreditation scope across 15 disciplines, serving facilities across every emirate. This lets you buy temperature calibration equipment UAE wide and arrange its calibration with one supplier.
FAQ: Temperature Calibrators and Dry Block Calibrators
Q: What is the difference between a temperature calibrator and a dry block calibrator? A temperature calibrator UAE users choose sources or measures electrical signals from sensors, while a dry block calibrator heats a sensor to a known temperature. Many labs use both.
Q: What temperature range does a dry block calibrator cover? Many models cover roughly -30 °C to 650 °C, depending on design. Check the exact range and the accuracy at both ends before you buy.
Q: Is a dry block as accurate as a liquid bath? Among dry block baths UAE buyers compare, a liquid bath usually has better uniformity, especially for odd-shaped probes. A dry block is accurate enough for most routine field checks when the probe fits the insert well.
Q: How often should a temperature calibrator be calibrated? Many sites calibrate once a year, but the interval depends on usage, the process and your quality system. Follow your manufacturer’s and auditor’s guidance.
Q: What do I need to calibrate a Pt100 sensor? You need a stable heat source such as a dry block and a reference thermometer, plus a way to read the Pt100 resistance, which should be 100 ohms at 0 °C.
Get the Right Temperature Calibrators for Your Lab or Site
From handheld units to every dry block calibrator UAE labs need, General Tech Services supplies genuine temperature calibrators from trusted brands, backed by accredited calibration support. Browse the related temperature measuring instruments range or get in touch to discuss dry block baths UAE sites need and the right temperature calibration instruments for your facility.
