Ultrasonic Thickness Gauges: How They Detect Corrosion and Wear

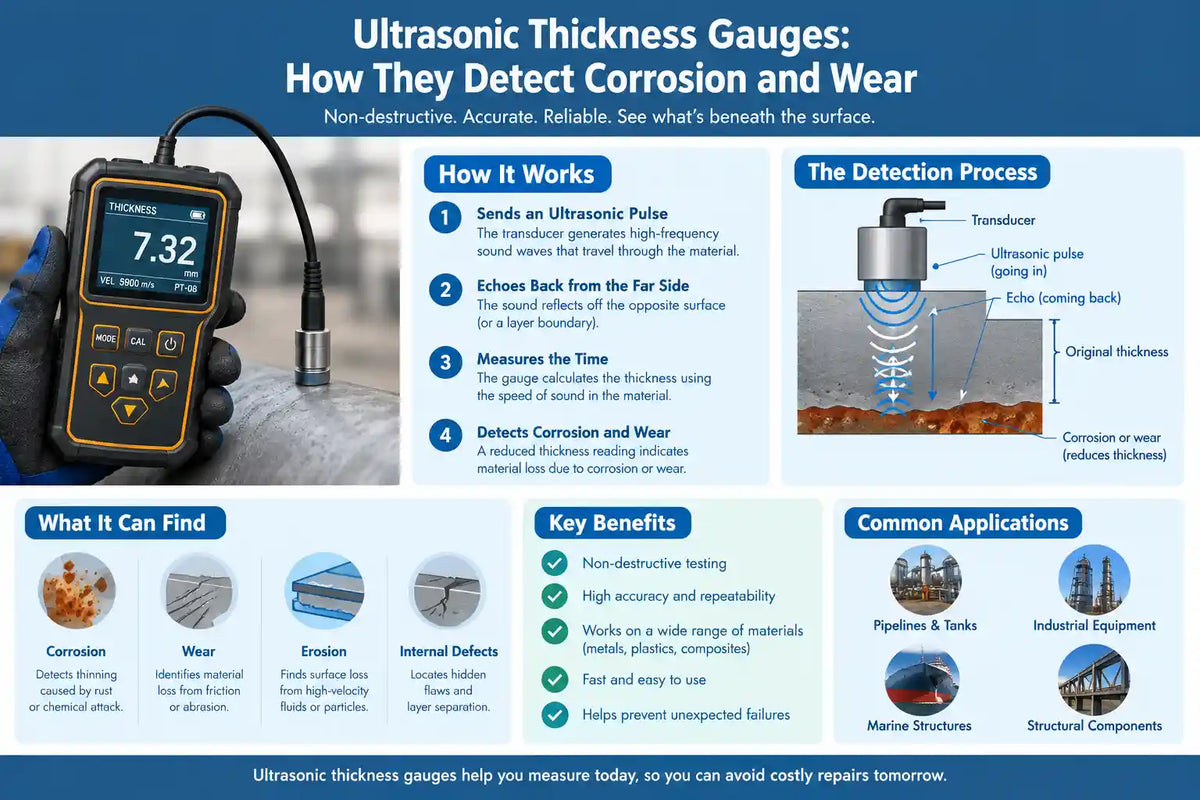

An ultrasonic thickness gauge measures material thickness by sending a sound pulse through the material and timing how long it takes to reflect back from the far wall. By comparing repeated readings at the same point over time, it reveals metal loss from corrosion or erosion long before a wall becomes dangerously thin.
How Does an Ultrasonic Thickness Gauge Work?
An ultrasonic thickness gauge relies on the predictable speed of sound through a known material to calculate thickness.
1. A transducer (probe) sends a high-frequency sound pulse — commonly 5 MHz — into the material through a couplant gel.
2. The pulse travels through the material and reflects off the back wall or any internal boundary.
3. The gauge measures the time it takes for the echo to return.
4. Using the material’s known sound velocity, the gauge calculates thickness from that time measurement.
Because the calculation depends on the material’s sound velocity, the gauge must be calibrated to the specific material being tested — a reading taken with the wrong velocity setting will be inaccurate even if the gauge itself is functioning correctly.
What Is an Ultrasonic Thickness Gauge Used for in Corrosion Inspection?
An ultrasonic thickness gauge for corrosion inspection detects internal and external metal loss that often isn’t visible from the surface.
• Baseline thickness recording — establishing the original wall thickness of a new asset for future comparison.
• Periodic monitoring — repeat readings at the same grid points over time reveal the corrosion rate.
• Localized thinning detection — scanning across a surface can reveal pitting or localized wall loss that a single-point reading would miss.
• Remaining life estimation — combining current thickness, original thickness, and corrosion rate to estimate how long an asset can safely remain in service.
Corrosion often progresses from the inside of a pipe or tank, where it can’t be seen visually — ultrasonic thickness measurement is often the only practical way to catch it before a failure.
How Is Ultrasonic Thickness Testing Done on Pipes?
Ultrasonic thickness testing on pipes follows a structured grid approach rather than random spot checks, since corrosion rarely occurs uniformly.
1. Establish a grid pattern — commonly a series of circumferential and longitudinal measurement points (CML - Corrosion Monitoring Locations) marked on the pipe.
2. Clean the surface — remove paint, rust, or scale at each measurement point for accurate coupling.
3. Apply couplant gel and take the reading at each grid point, recording the exact location for future comparison.
4. Compare against baseline and previous readings to calculate corrosion rate and identify any accelerating thinning.
Pipe inspection commonly focuses on known high-risk areas first — elbows, tees, and locations downstream of flow restrictions, where erosion-corrosion tends to concentrate.
What Accuracy Can You Expect from an Ultrasonic Thickness Gauge?
Ultrasonic thickness gauge accuracy varies by gauge quality and application, but industrial-grade units commonly offer strong precision across a useful range.
• Standard dual-element ultrasonic thickness gauges, like the DeFelsko UTG CA1, typically measure from 0.040” to 5.000” (roughly 1mm to 125mm) with accuracy around ±0.001” (±0.025mm) in ideal conditions.
• Multiple-echo models can achieve tighter minimum thickness measurement, useful for thinner materials where single-echo accuracy degrades.
• Accuracy depends heavily on proper probe contact, correct material velocity setting, and surface condition — a pitted or rough surface reduces reading reliability regardless of gauge quality.
Ultrasonic Thickness Gauge vs Caliper: Which Should You Use?
The ultrasonic thickness gauge vs caliper comparison comes down to access: whether you can physically reach both sides of the material being measured.
• Calipers and micrometers require physical access to both surfaces of the material — fine for a flat plate edge, but impossible for a sealed pipe or tank wall.
• Ultrasonic thickness gauges measure from one side only, making them the only practical option for inspecting pipes, pressure vessels, and tanks in service.
• For accessible flat stock where both sides are reachable, a caliper or micrometer can be faster and doesn’t require coupling gel or material velocity calibration.
In nearly all corrosion monitoring applications on in-service equipment, an ultrasonic gauge is the only viable method, since the equipment can’t be cut open or accessed from both sides.
What Are the Main UTG Probe Types?
Ultrasonic thickness gauge probe types are selected based on material condition and the minimum thickness that needs to be measured.
• Single-element probes — simple and effective on smooth, clean surfaces with adequate remaining thickness.
• Dual-element probes — use separate send and receive crystals, improving performance on corroded, pitted, or rough surfaces where single-element probes struggle.
• Delay line probes — add a buffer between the crystal and material, useful for measuring thin materials or high-temperature surfaces.
• High-temperature probes — rated for continued contact with hot surfaces, used for in-service piping and vessels that can’t be shut down for inspection.
Choosing the wrong probe type for a corroded or pitted surface is one of the most common causes of unreliable ultrasonic thickness readings in the field.
Why Does Gas and Oil Industry Use Depend So Heavily on UTG?
An ultrasonic thickness gauge for oil and gas applications is standard equipment because so much critical infrastructure can’t be visually inspected from the inside during operation.
• Pipelines, pressure vessels, and storage tanks require ongoing thickness monitoring to comply with asset integrity management programs.
• Erosion-corrosion at pipe bends and flow restrictions can thin walls faster than general corrosion, making targeted UTG monitoring essential at these locations.
• Regular thickness surveys feed directly into fitness-for-service assessments that determine whether equipment can continue operating safely.
How Often Should an Ultrasonic Thickness Gauge Be Calibrated?
Ultrasonic thickness gauge calibration confirms the instrument’s readings remain accurate against a known reference standard, since probe wear and electronic drift both affect results over time.
• Calibration should be checked against a stepped calibration block at the start of each inspection session, not just on an annual schedule.
• Full instrument calibration, traceable under ISO/IEC 17025, is typically performed every 12 months for gauges in regular field use.
• A gauge giving inconsistent readings on a known calibration block should be serviced immediately rather than used for inspection work.
