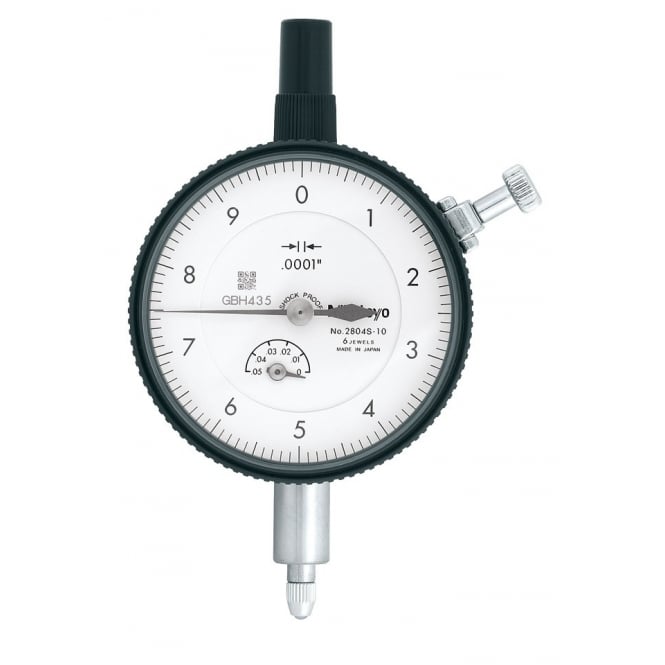

Mitutoyo 2804S-10 High Resolution Standard Dial Indicator Range 0.05", Graduation .0001"
A Mitutoyo shockproof, multi-revolution dial indicator suited to general measurement applications. The jewelled movement provides lowest friction and stiction for smooth and precise operation.
The outer clamp and lifting lever (optional) can be attached to either the right or left side. These parts can be easily installed and removed without tools.
• Secure adhesion between the bezel and crystal as well as the use of an O-ring prevents water or oil penetration.
• A carbide contact point is used.
• The stem and plunger are made of high-strength quench-hardened stainless steel which resists arduous use.
• A special alloy is used for the sector gears to provide improved wear resistance.
• The indicator uses jewelled bearings, providing excellent indication sensitivity and durability.
• Application of a hard coating on the surface of the crystal makes it highly resistant to scratching and chemical attack.
