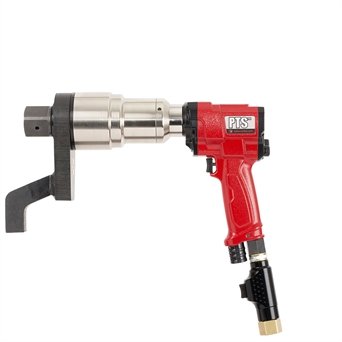

Norbar PneuTorque PTS-92 Pneumatic Torque Multiplier 800-4000NM

Name: Norbar PneuTorque PTS-92 Pneumatic Torque Multiplier 800-4000NM
Brand: Norbar
SKU: 180250.B12.DTM
Availability: InStock

Part Number : 180250.B12.DTM

The PTS is the outcome of a lengthy design initiative to create an efficient air motor that is specifically designed for use in an accurate torque tool. The new air motor is then coupled with Norbar's well-known gearbox line, which shares torque reaction accessories with PTM and EvoTorque® tools.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/-3%
Brand	Norbar
Free Speed	5.5 rpm
Max Air Pressure	6.5 bar
Model Number	PTS-92
Product Number	180250.B12.DTM
Range Imperial	590 - 2950 lbf·ft
Range Metric	800 - 4000 N·m
Reaction Plate Weight	2.5 kg
Square Size	1 1/2"
Tool Weight	8.95 kg

Designed to offer excellent power-to-weight ratio
Up to 2.5kg weight saving compared with PT equivalents
Easily accessible switch for forward and reverse operation
±5% repeatability of reading from 20% to 100% of range
Air coupling designed for safety and rapid operation
Directional exhaust barrel directs exhaust away from operator
Replaceable square drive
Fast operation for rapid bolt rundown. Up to 60% faster than PT-72 model
Non impacting - low vibration levels for comfortable and safe use
Steel reactions supplied as standard. Bespoke reactions available
The Dual Trigger Module requires the operator to use both hands to run the tool and so reduces the risk of hands getting trapped between the reaction bar and reaction point
Very quiet operation - reducing the need for protection with sound pressure levels from 77dB(A) to 79dB(A)
