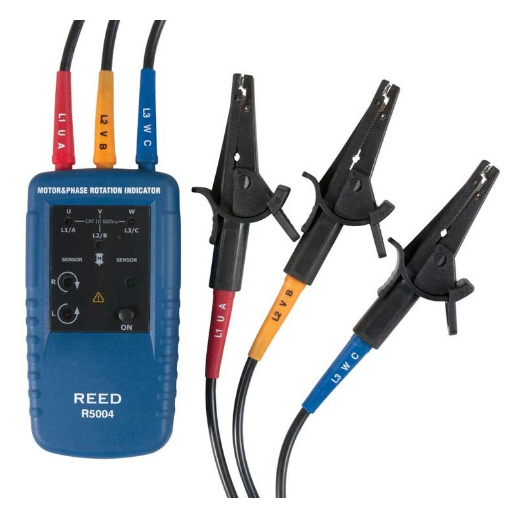

REED R5004 Motor Rotation / 3-Phase Tester

Name: REED R5004 Motor Rotation / 3-Phase Tester
Brand: REED Instruments
SKU: R5004
Availability: OutOfStock

Part Number : R5004

This motor rotation and 3-phase tester is capable of identifying phase orientation (clockwise or counter-clockwise). The R5004 features a rugged double molded plastic housing and has the ability to identify which of the 3-phases is live.

Availability: Sold out

Specifications
Features
Downloads

Battery Life	Approx. 1 year (regular usage)
Dimensions	5.1 x 2.7 x 1.3
Frequency (Hz)	2 to 400Hz
Operating Humidity Range	10 to 80%
Operating Temperature	0 to 122°F (0 to 50°C)
Power Supply	9V Battery
Product Certifications	CE
Storage Temperature	-4 to 140°F (-20 to 60°C)
Weight	4.5oz (130g)

Tests phase orientation of 3-phase power sources
Indicates phase orientation (clockwise or counter-clockwise) and whether each of the three phases is live
LEDs display motor rotation and phase status
Easy to open alligator clips with wide jaws
Durable double molded plastic housing
Cat. III 600V safety rating
