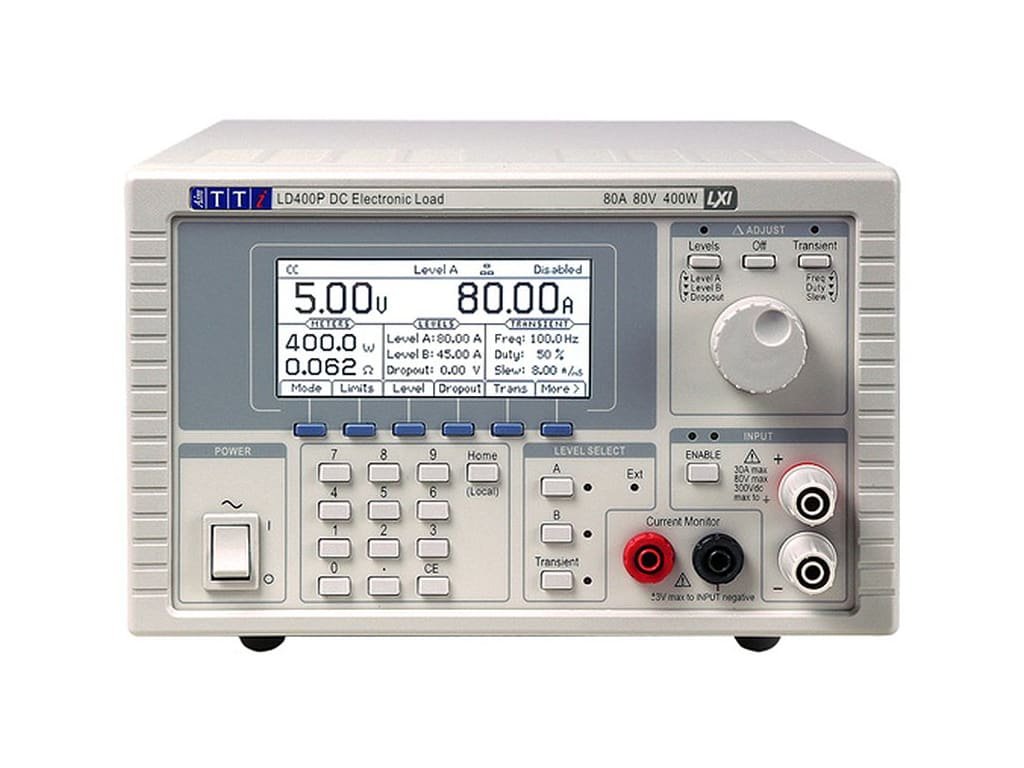

Aim TTi LD400P | 360W 80A 80V Electronic DC Loads | USB, RS232 LAN/LXI

Name: Aim TTi LD400P | 360W 80A 80V Electronic DC Loads | USB, RS232 LAN/LXI
Brand: Aim Tti
SKU: LD400P
Availability: InStock

Part Number : LD400P

A low-cost electronic load that may be used to test and characterise a variety of dc power sources is the LD400. It can be used to examine how many different kinds of power sources, including batteries, solar cells, and electronic power supply units, behave. It has the flexibility to provide test solutions from the design laboratory all the way to the component test area thanks to its wide voltage/current range, numerous working modes, and built-in transient generator. Full bus remote control is added by the LD400P via USB, RS-232, and LAN (Ethernet) interfaces.

Availability: low stock

Free UAE shipping available

Detailed Description
Specifications
Features
Downloads

Aim-TTi LD400 Series Electronic Load, 0 to 80 A Constant Current Mode Range, 0 to 80 V Constant Voltage Mode Range - LD400P

This electronic load by Aim-TTi is a versatile testing tool suitable for a wide range of applications in the fields of automation, electronics, electrical, and mechanical industries. It offers constant current, resistance, power, voltage, and conductance modes, making it ideal for testing power sources like batteries, solar cells, and electronic power supply units. The LD400 Series electronic loads provide high accuracy and resolution for precise testing requirements.

Features & Benefits

â€¢ Constant current, resistance, power, voltage, and conductance modes for versatile testing options
â€¢ Wide voltage/current range of 0-80V and 0-80A, suitable for various applications
â€¢ Built-in transient generator with variable slew rate for dynamic testing
â€¢ Front and rear input terminals for flexibility in connectivity
â€¢ USB, RS-232, GPIB, and LAN interfaces for easy integration into test setups

Applications

â€¢ Testing of normal voltage-source power supplies
â€¢ Constant current discharge testing of batteries
â€¢ Load testing of constant current power supplies
â€¢ Simulation of resistive loads for detailed power source regulation testing

Can it simulate resistive loads for power source regulation testing?

Yes, the electronic load can simulate a standard resistive load by providing a current drain proportional to voltage, allowing for accurate power source regulation testing.

Will it provide precise controllable resistance with high power dissipation?

Yes, the load offers precisely controllable resistance with high temperature stability over a wide range, ensuring reliable and accurate testing results.

Is it suitable for testing constant current power supplies?

Yes, the electronic load operates as a high-power shunt regulator, making it ideal for load testing of constant current power supplies in various applications.

Supplied with

Test Bridge Logging and sequencing software:
Multi instrument control
Logging to table and graph format
Timed sequence control across all instruments and channels
USB, LAN and RS232 compatible

Dimensions	130mm H (3U) x 212mm W (1/2 rack) x 435mm D
Display	256 x 112 pixel backlit graphic LCD
Operating Temperature	+ 5oC to + 40oC, 20% to 80% RH.
Storage Temperature	" 40oC to + 70oC
Voltage	110V"120V or 220V"240V AC +/-10%, 50/60Hz. Installation Category II.
Weight	5.7 kg

Low minimum operating voltage of below 1V at 40A
Built-in transient generator with variable slew
Current monitor output for waveform viewing
Variable drop-out voltage for battery testing
Versatile solution for testing dc power sources
Constant current, resistance, conductance, voltage and power modes
Wide voltage and current range, 0 to 80 V and 0 to 80 A
400 watts continuous dissipation at 28 degrees C
360 watts continuous dissipation at 40 degrees C
600 watts short-term dissipation capability
