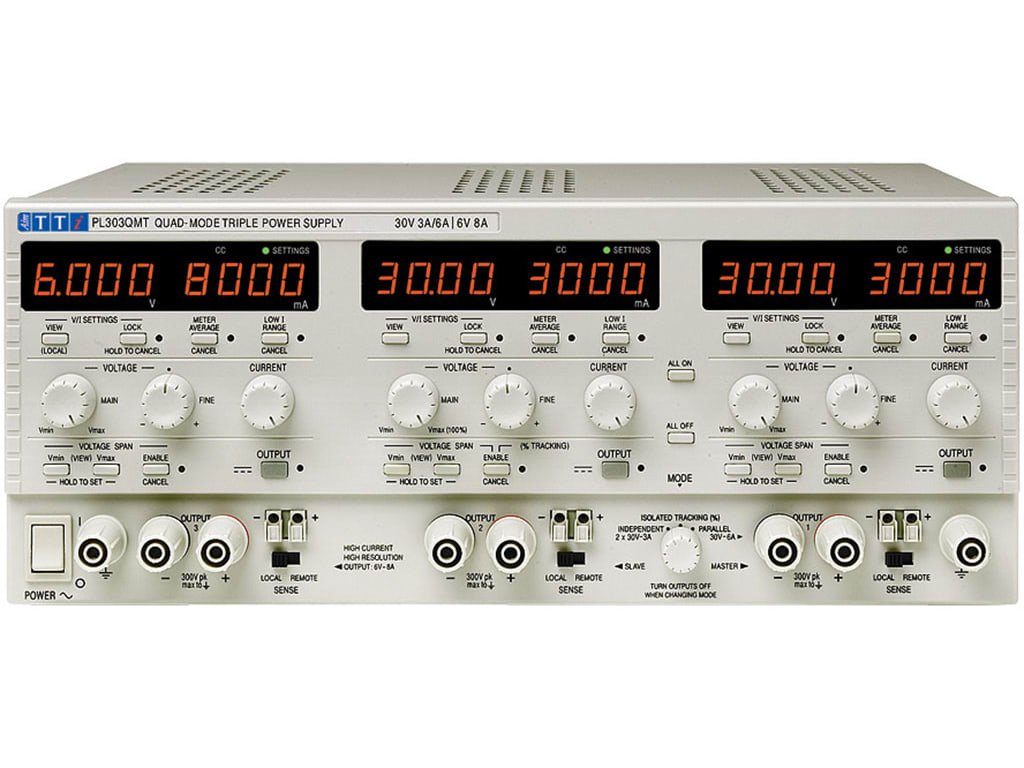

Aim TTi PL303QMT | DC Bench Power Supplies | Triple Precision | 0-30V/0-3A,0-6V/0-8A

Name: Aim TTi PL303QMT | DC Bench Power Supplies | Triple Precision | 0-30V/0-3A,0-6V/0-8A
Brand: Aim Tti
SKU: PL303QMT
Availability: InStock

Part Number : PL303QMT

The New PL Series is TTi's most recent line of high-performance linear regulated dc power supplies. It takes the place of the original PL series, which was widely regarded as the best laboratory power supply available. The Additional PL Series incorporates new digitally based convenience features, greater power density, and better performance while maintaining the authentic analogue control of the original PL series.

Availability: low stock

Free UAE shipping available

Detailed Description
Specifications
Features
Downloads

New PL & New PL-P Series Single, Dual and Triple Output PSUs

Single, dual or triple output models
Models from 6V/8A up to 60V/1.5A
Linear regulation - for the best performance
Ultra-compact design - uses up less space
True Analog controls - for ease of use
S-Lock function - instantly lock settings
V-Span function - customise the voltage range
Low current range and current meter averaging
DC output switches and 'view limits' button
Selectable remote sense terminals
Independent, Isolated Tracking, Ratio Tracking and True Parallel modes on dual & triple models
High current low voltage output on triple output model

Note

RM460 rack mount kit 493-522 caters for up to four single output units or two dual output units or any combination. Total height 4U includes ventilation spaces above and below, together with blanking panels for unused positions.

Approvals

EN61010-01 (Safety); EN61326 (EMC)

Supplied with

user manual and mains lead

Aim-TTi Series PL Bench Power Supply, 228W Power Rating, 0 to 3 A / 0 to 8 A Output Current - PL303QMT

This bench power supply from Aim-TTi is a versatile and reliable power source with adjustable settings for voltage and current. With a power rating of 228W, this power supply is ideal for a wide range of applications in the fields of automation, electronics, electrical, and mechanical industries. The digital interface and binding post terminals make it easy to set up and use for various projects.

Features & Benefits

â€¢ Adjustable power supply with a voltage output range of 0 to 30V
â€¢ Precise control over current output from 0 to 3A
â€¢ Digital interface for easy monitoring and adjustment
â€¢ High power rating of 228W for demanding systems
â€¢ Linear power supply design for low noise and fast response times
â€¢ Binding post terminals for secure and reliable connections

Applications

â€¢ Ideal for electronic circuit testing and development
â€¢ Suitable for powering motors and actuators in automation systems
â€¢ For powering sensors and control systems in industrial Applications

Can it provide a stable voltage output for delicate electronic components?

Yes, the Aim-TTi bench power supply offers precise control over voltage and current to ensure stable power delivery.

Will it work for setting up different voltage ranges for testing purposes?

The V-Span function allows users to define specific voltage ranges for different tasks, providing flexibility and accuracy.

Is it suitable for use in rack-mounted systems?

Yes, the New PL-P series includes models with remote control facilities, making them ideal for both benchtop and system applications.

Dimensions	107mm x 131mm (1/4 rack 3U) x 288mm
Display	Dual 4-digit meters, 10mm (0·39�) LED
Operating Temperature	+5oC to +40oC, 20% to 80% RH
Storage Temperature	-40oC to + 70oC
Voltage	230V AC or 115V AC +/- 10%, 50/60Hz. Installation Category II
Weight	4·5kg

True Analog controls - for ease of use
S-Lock function - instantly lock settings
V-Span function - customise the voltage range
Low current range and current meter averaging
DC output switches and "view limits" button
Bench System DC Power Supply, Linear Regulation,
Smart Analog Controls Triple Output, 2 x 30V/3A plus 6V/6A, No Interfaces
2x (30V/3A) & 1x (6V/8A) or 1x (30V/6A) & 1x (6V/8A)
PL303QMT Triple Precision DC Bench Power Supplies, 0-30V/0-3A,0-6V/0-8A
Linear regulation - for the best performance
Ultra-compact design - uses up less space
