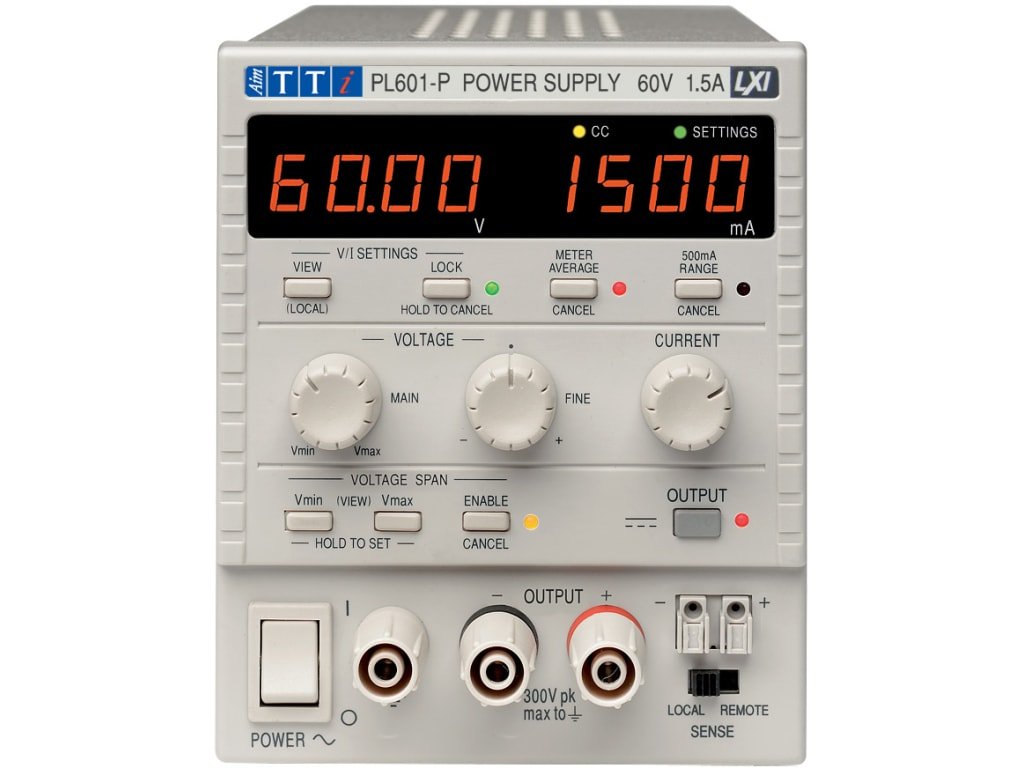

Aim TTi PL601-P | Single 0-60V/0-1.5A USB/RS232/LAN(LXI)/Analog
The most recent linear regulated power supply series from TTi is called the New PL-P Series, and it is bus programmable. The New PL-P series adds complete remote control capabilities while maintaining all of the manual control features of the New PL series. Its user-friendly manual controls are still available for bench top applications, but its ultra-compact rack-modular design makes it excellent for rack mounted system applications.

Free UAE shipping available
- Specifications
- Features
- Downloads
Dimensions | Single output models - 107mm x 131mm (1/4 rack 3U) x 315mm, Dual output model - 214mm x 131mm (1/2 rack 3U) x 288mm Triple output model - 321mm x 131mm (3/4 rack 3U) x 288mm (sizes exclude feet, knobs and terminals). |
Operating Temperature | +5oC to +40oC, 20% to 80% RH |
Storage Temperature | -40oC to + 70oC |
Voltage | 230V AC or 115V AC +/- 10%, 50/60Hz. Installation Category II |
Weight | Single output models - 4·9kg; Dual output model - 8.6kg; Triple output model - 12.8kg |
Interfaces are opto-isolated from outputs
IVI Driver supplied
Analog remote control of V and I
Front and rear terminals
Selectable remote sense terminals
High performance linear regulated power supplies
0 to 60V at 0 to 1.5A
Full digital remote control and readback
RS-232, USB and LAN (Ethernet), GPIB optional
LAN Interface conforms with LXI standard
