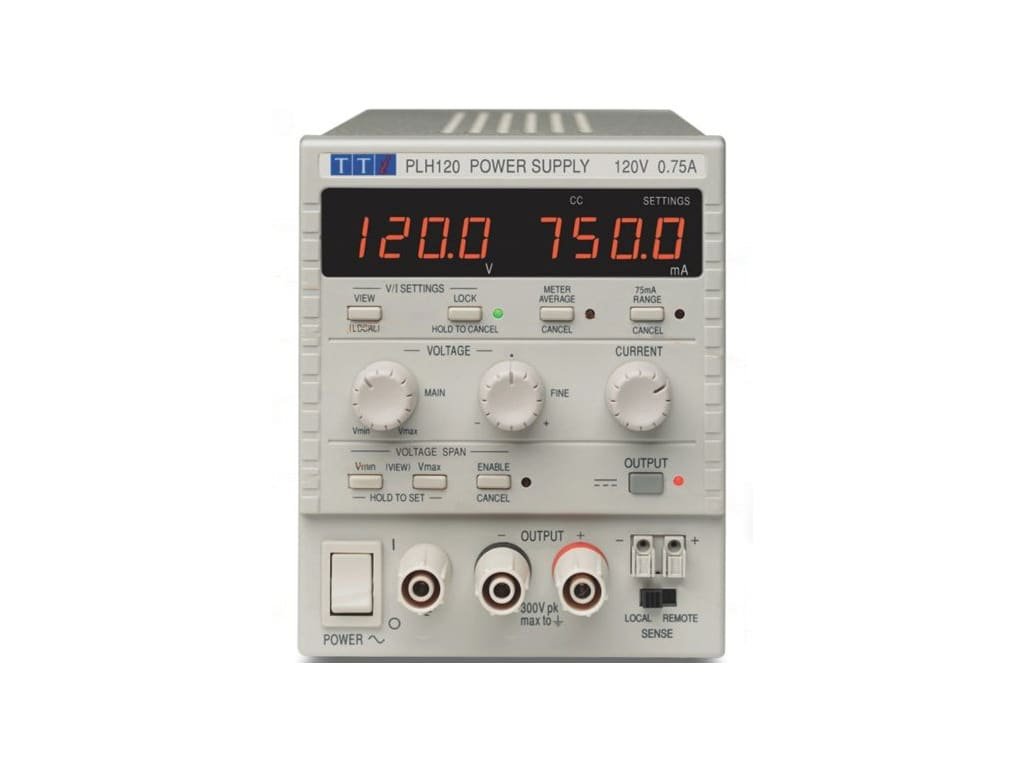

Aim-TTi PLH120 | Higher Voltage Linear DC Power Supply | 120V/0.75A, 90W
The Aim-TTi PLH120 is a higher voltage linear regulated supply with a single 120V/0.75A output rated at 90W. Analogue controls and a low current range suit work on circuits that need more than the usual 30V or 60V bench supply.
Key features
- Single 120V/0.75A output, 90W
- No remote interfaces
- Linear regulation with true analogue controls
- S-Lock setting lock and V-Span voltage range customisation
- Low current range and current meter averaging
- DC output switch and 'view limits' button
- Selectable remote sense terminals
- Detailed Description
- Specifications
- Features
- Downloads
PLH & PLH-P Series
Low output noise and fast transient recovery
High power density - up to 94W from a quarter-rack, 3U sized casing
Unusually small bench footprint and, for rack-mount applications, up to 4 units can be mounted into a single slot
Exceptional line and load regulation, easy-switch remote sense
High accuracy 4-digit fixed-resolution meters, low current range, current meter averaging
Quick and intuitive adjustment of voltage and current
Unique S-Lock function digitally locks voltage and current settings at the touch of a button
Unique V-Span function enables the full 300° rotation of the voltage control to cover any voltage range
DC output switch enables voltage and current to be set up before connecting the load
Operating temperature range +5ºC → +40ºC, 20% → 80% RH
Storage temperature range -40ºC → +70ºC
Suitable for indoor use at altitudes up to 2000m, Pollution Degree 2
Intelligent variable-speed low-noise fan assists convection cooling
Standards
Supplied with
Aim-TTi Series PL Bench Power Supply, IEC 320 Input Connector, 90W Power Rating - PLH120
Features & Benefits
• Ultra-compact design for minimal bench space
• High power density for efficient use
• Low output noise and fast transient response
• Voltage span control for precise voltage adjustment
• Analogue remote control for easy parallel connection
• Enhanced safety features for protection
• Various interfaces including RS-232, USB, and LAN
Applications
• Suitable for electrical engineering projects
• Essential for electronic circuit design and testing
• Beneficial in educational institutions for teaching purposes
Can it be used for sensitive electronic components?
Will it provide precise voltage output?
Is it user-friendly for beginners?
Can it be used in educational settings?
Is it suitable for circuit testing?
| Part Number | PLH120 |
| Brand | Aim-TTi |
| Outputs | 1 |
| Regulation | Linear |
| Output Rating | 120V/0.75A |
| Interfaces | None |
| Controls | Analogue, S-Lock, V-Span |
| Output Power | 90W |
Low current range; current meter averaging
Lockable voltage and current settings (using S-Lock)
Connect via safety binding-post terminals
Dc output switch - check your settings before applying them;
View settings button - check and adjust limits at any time
PLH120 Single 0-120V/0-0.75A Higher Voltage Linear Regulated DC Bench Power Supply
Up to 94 watts from an ultra-compact case size
Exceptional line and load regulation
High accuracy four digit fixed-resolution meters
Easy-switch remote sense
