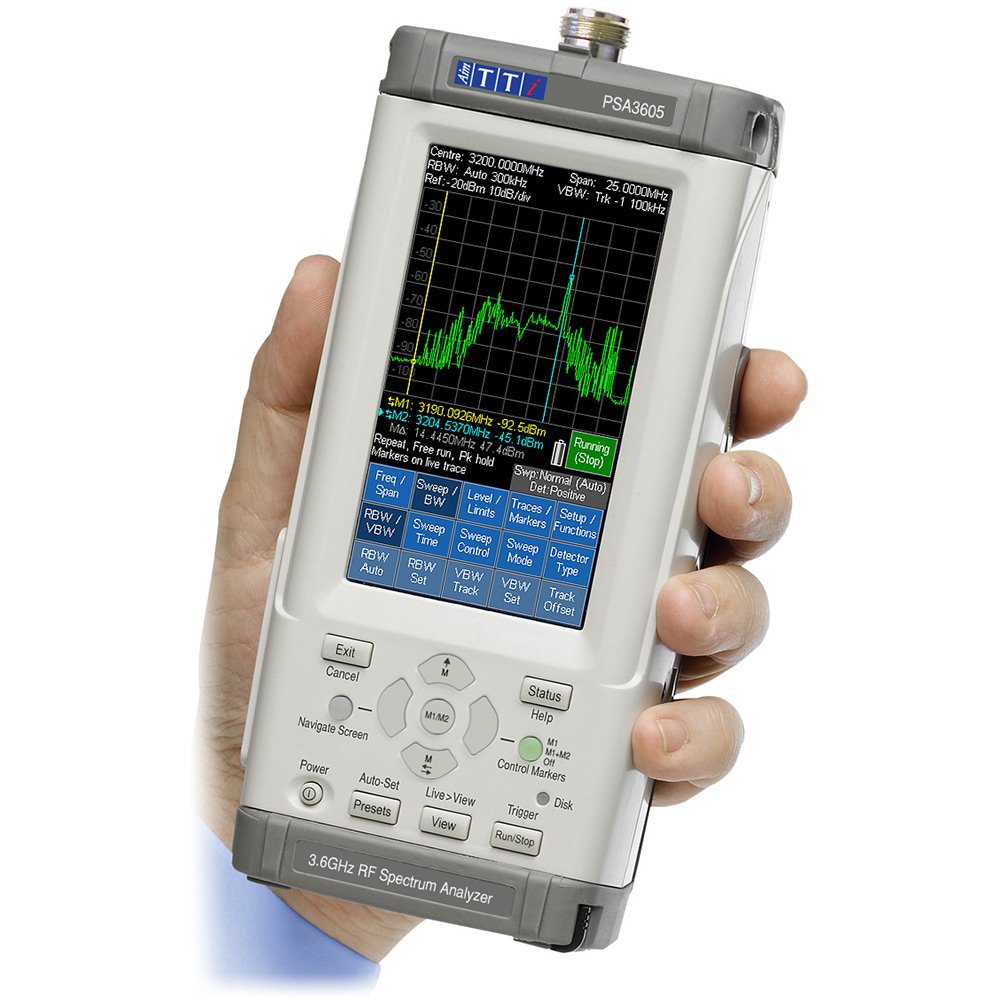

Aim-TTi PSA3605 | Handheld RF Spectrum Analyzer | 10MHz to 3.6GHz

Name: Aim-TTi PSA3605 | Handheld RF Spectrum Analyzer | 10MHz to 3.6GHz
Brand: Aim Tti
SKU: PSA3605
Availability: InStock

Part Number : PSA3605

The Aim-TTi PSA3605 is a PSA Series 5 handheld spectrum analyzer covering 10MHz to 3600MHz. It weighs only 0.56kg, runs more than 3 hours from its lithium-ion battery and offers a -120dBm typical noise floor, suiting installers and RF engineers working on systems up to 3.6GHz.

Key features

10MHz to 3600MHz frequency range
-120dBm typical noise floor (-40dBm ref., 10kHz RBW)
300Hz to 10MHz resolution bandwidths
Zero span with AM and FM audio demodulation
Frequency counter down to 10Hz resolution
Lithium-ion battery, more than 3 hours per charge

Availability: low stock

Free UAE shipping available

Detailed Description
Specifications
Features
Downloads

Aim-TTi Spectrum Analyser, 3.6 GHz Maximum Frequency, USB Interface Type - PSA3605

This handheld spectrum analyser by Aim-TTi offers a bandwidth of 3.6 GHz, making it a versatile tool for professionals in the automation, electronics, electrical, and mechanical industries. With advanced features and robust design, the spectrum analyser is designed to meet the diverse needs of technical users.

Features & Benefits

The compact design of the spectrum analyser allows for easy handling and operation on the go.
With a frequency range of 10 MHz to 3.6 GHz, this analyser can cover a broad spectrum of signals.
The backlit TFT LCD screen provides detailed information with colour coding for easy trace differentiation.
With a lithium-ion rechargeable battery, the analyser offers more than 3 hours of continuous operation.
The USB connectivity allows for easy data transfer and storage, enhancing the efficiency of the device.

Applications

Suitable RF signal analysis
Can be used for spectrum monitoring
Reliable for wireless communication testing

Can it be used for frequency analysis?

Yes, the spectrum analyser is ideal for frequency analysis with its wide frequency range and accurate readings.

Will it work for signal monitoring in the field?

Yes, the handheld design and durable construction make it suitable for field applications requiring signal monitoring and analysis.

Is it compatible with external devices for data transfer?

Yes, the USB interface facilitates easy connectivity with external devices such as PCs or USB Flash drives for data transfer and storage.

Can it handle varying signal strengths?

Yes, the analyser is equipped to handle varying signal strengths with precision and accuracy, making it suitable for a wide range of signal analysis tasks.

Part Number	PSA3605
Brand	Aim-TTi
Frequency Range	10 MHz to 3600 MHz
RBW	300 Hz to 10 MHz (1:3:10)
Noise Floor	-120 dBm typical
Frequency Counter	Down to 10 Hz resolution
Interfaces	USB (flash drive and PC)
Battery	Li-ion, >3 hours
Weight	0.56 kg

Radio frequency analyzer on the go.
The frequency range is from 10MHz to 3600MHz.
Resolution bandwidths ranging from 300Hz to 10MHz (1:3:10).
Typical noise floor of -120dBm at -40dBm ref. level/ 10kHz RBW.
Frequency counter with a resolution of 10Hz.
Preset frequencies.
Smart marker movement with peak tracking that can be customised.
Auto-Find function: sets sweep parameters based on the highest detected signal.
AM and FM audio demodulation in Zero Span mode.
Trace modes include Normal, Peak Hold, and Average.
The Live, View, and Reference traces are shown in different colours.
TFT touchscreen display (4.3").
View measurements in dBm, dBV, mV, and W.
Twin markers with absolute and difference value readouts.
1.8GB of memory.
USB interfaces for connecting Flash Drives and PCs.
Waveforms, set-ups, and screens can be saved indefinitely.
