AlphaLab GM330TT | Gaussmeter Model GM330 with Thin Transverse Probe | AC/DC to 30 kG
Part Number : GM330TT
Part GM330TT supplies the AlphaLab GM330 gaussmeter fitted with the Thin Transverse probe, whose slim rigid tip reads fields across its face in narrow gaps. It is the configuration to pick for measuring between magnet poles or in motor and speaker air gaps. The GM330 itself is a laboratory-class meter, successor to the GM2, covering fields up to 30 kG.
Key features

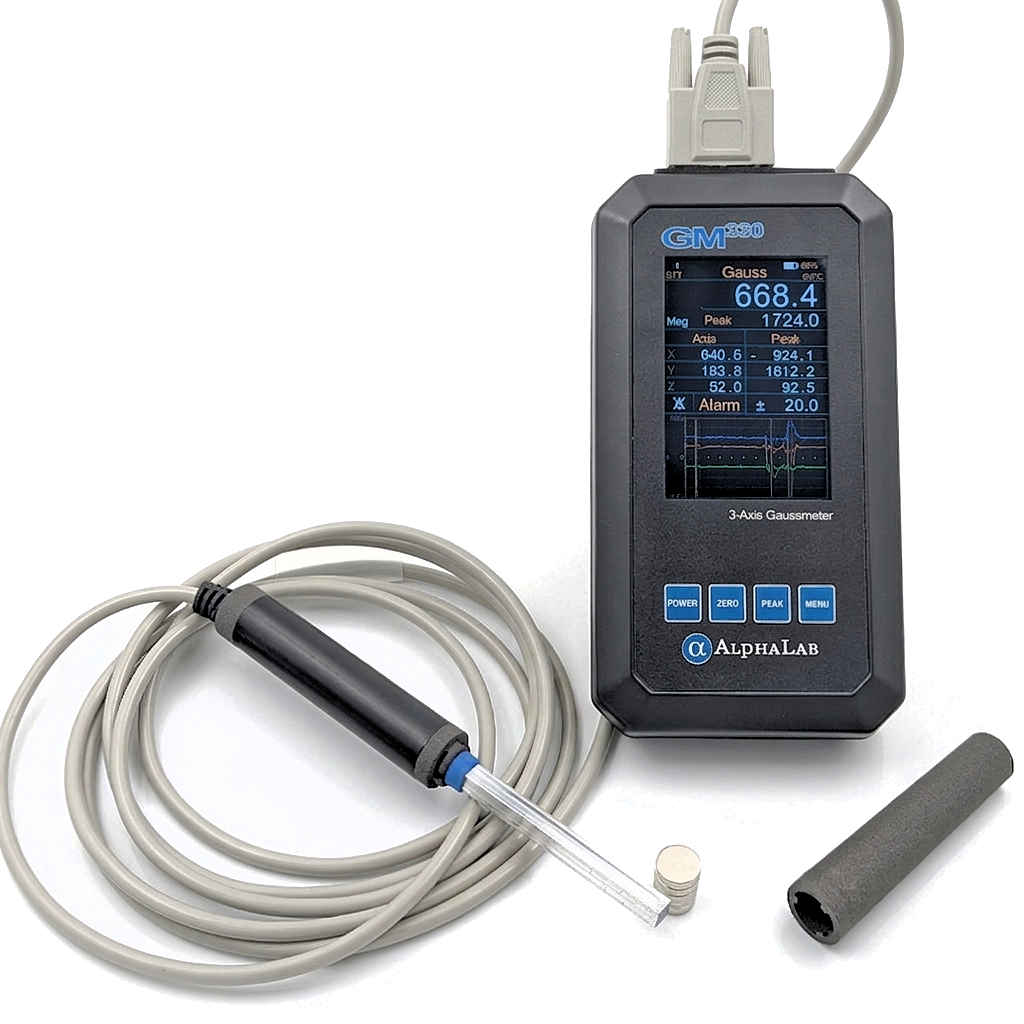

- Supplied with the Thin Transverse probe for narrow-gap measurement
- 0.1 G resolution up to 19,999.9 G, switching automatically to 1 G steps from 20 to 29.999 kG
- Measures DC field, AC field and peak field; peak hold catches short positive or negative transients
- Alarm can trigger when the field rises above or falls below a threshold, or leaves or enters a band
- Records to an onboard SD card; high-speed AC capture follows changing fields

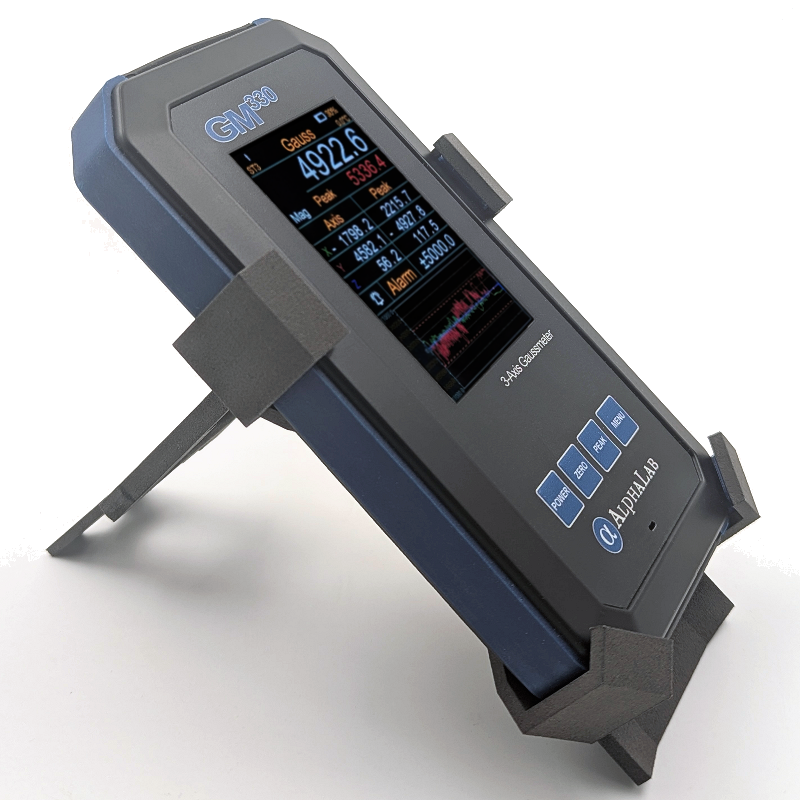

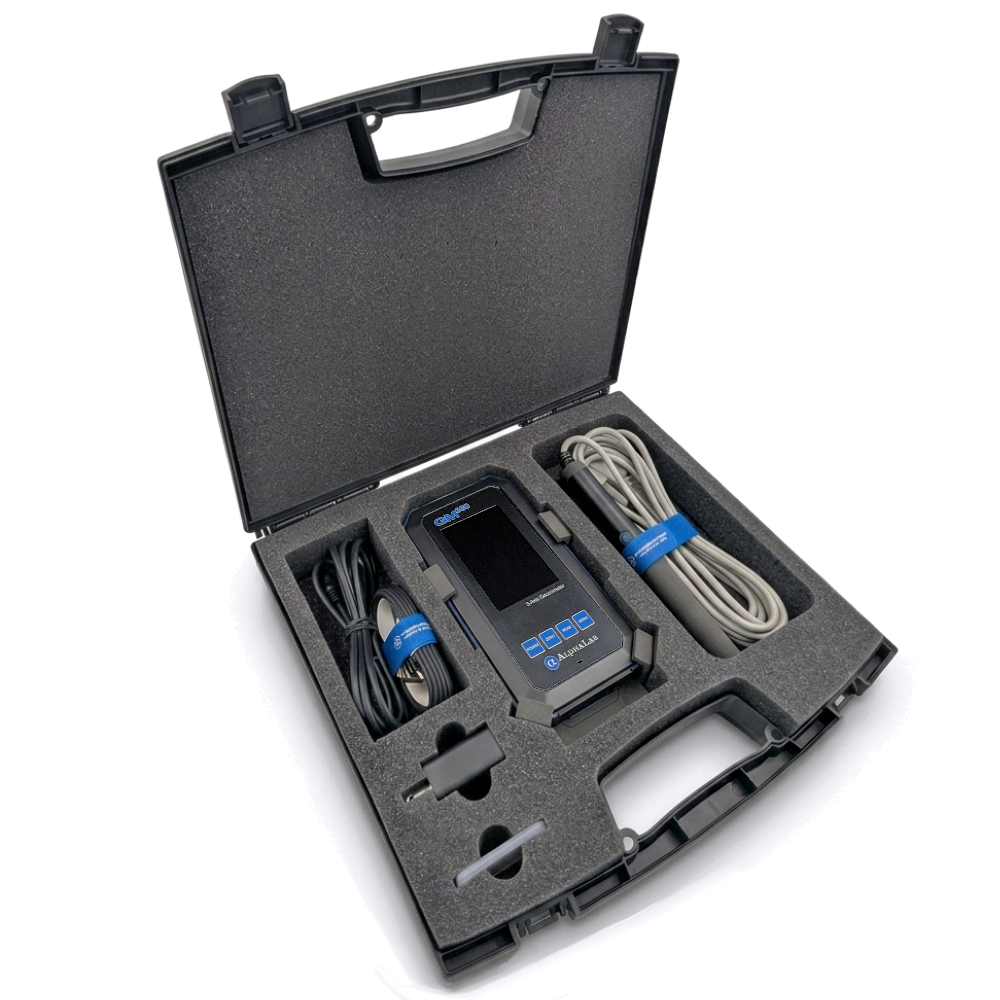

- Kit includes hard case, USB-C power/data cable, analog output cable, kickstand cradle and NIST-traceable calibration certificate
For pricing, please contact our experts.
