ASCO 10900001.230/50-60, Solenoid Valve , 3 port(s) , NC, 230 V ac, M5

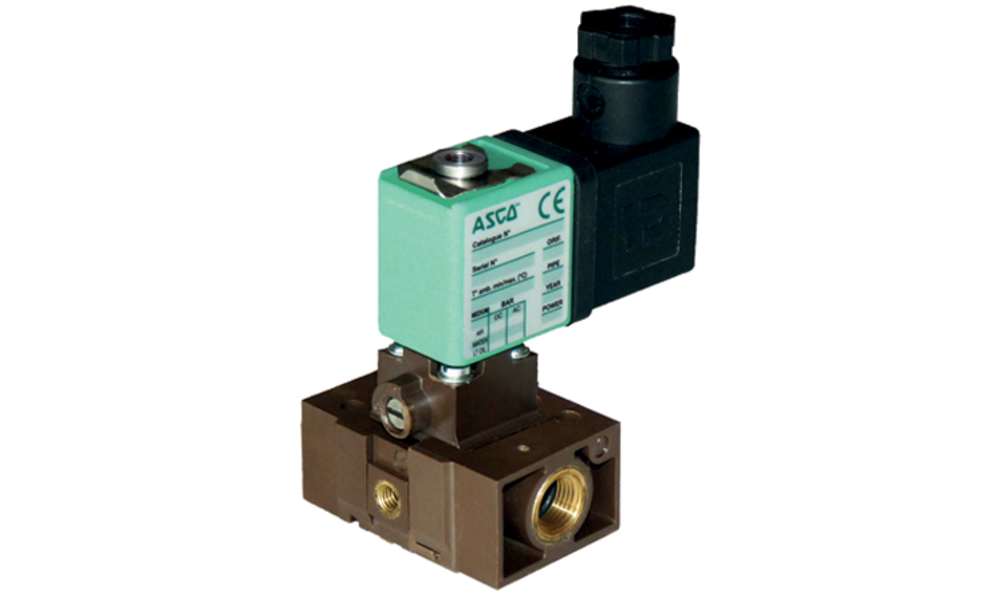

Name: ASCO 10900001.230/50-60, Solenoid Valve , 3 port(s) , NC, 230 V ac, M5
Brand: Asco
SKU: 10900001.230/50-60
Availability: OutOfStock

Part Number : 10900001.230/50-60

Availability: Sold out

Detailed Description
Specifications

2//2 and 3//2 base-mounting solenoid valves

Range of solenoid valves series 108 2//2 NF and 109 3//2 NF for base mounting.
Compact and lightweight for easy installation.
No minimum control pressure.
Standard manual control.
Polyphenylene sulphide (PPS) body shell
Pluggable connectors.

Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left-hand side of the diagram describes the valves operation when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and is described on the right-hand side of the diagram. The 3 / 2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2 / 2-way valves as two ways. The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications indicates the appropriate connections and pressure capabilities when an alternative circuit function is required.

Brand	Asco
Supply Voltage	230 V ac
Number of Ports	3
Connection Size	M5
Connection	M5 Metric Female
Operation	Direct
Default Valve Position	NC
Suitable Applications	Air, Inert Gas, Oil, Water
Type	3/2
Orifice Diameter	1mm
Body Material	PPS
Series	109
Maximum Working Pressure	15 bar
Operating Temperature Range	-10 → +60 °C
Thread Standard or Connection Type	Metric
Connection Gender	Female
Maximum Operating Temperature	+60°C
Minimum Operating Temperature	-10°C
Flow Factor Kv	0.03m³/h
Maximum Opening Time	10ms
Maximum Closing Time	10ms
