ASCO 18900007.24/DC, Solenoid Valve , 3 port(s) , NC, 24 V, 3/4in

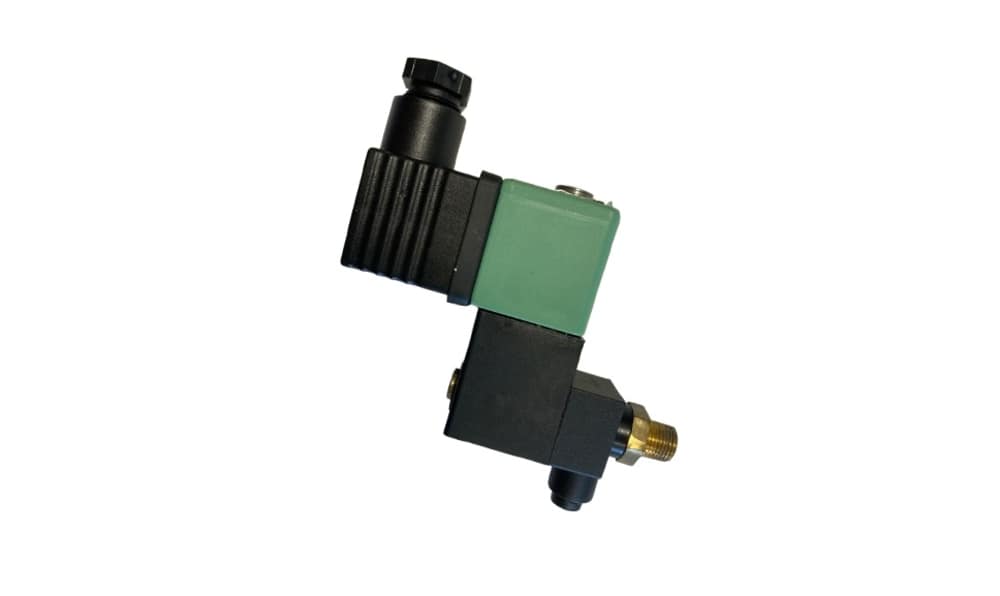

Name: ASCO 18900007.24/DC, Solenoid Valve , 3 port(s) , NC, 24 V, 3/4in
Brand: Asco
SKU: 18900007.24/DC
Availability: OutOfStock

Part Number : 18900007.24/DC

Availability: Sold out

Detailed Description
Specifications

The Asco Solenoid Valve is a reliable and efficient solution designed for various valve piloting applications. This compact device features a three-way, normally closed/normally open configuration, ensuring seamless integration into your existing systems. Thanks to its ISO 15218 (CNOMO, size 30) interface, installation is both straightforward and flexible. The valve's robust construction and low weight make it ideal for various mounting scenarios, while its AC/DC interchangeability allows for easy operation across different power supplies. Additionally, this solenoid valve meets all relevant EU directives, guaranteeing compliance and peace of mind in your operational environments.

Designed with a CNOMO pad-mount version for enhanced versatility
Convenient AC/DC interchangeability without disassembly
Allows for flexible installation on both single and joinable subbases
Standard manual operator feature ensures operational reliability
Constructed with high-quality materials to ensure longevity
Compatible with a range of connector specifications for added convenience
Moulded electrical enclosure protection meets IP65 standards

Brand	Asco
Supply Voltage	24 V
Number of Ports	3
Connection Size	3/4in
Connection	3/4 in G
Operation	Direct
Default Valve Position	NC
Suitable Applications	Air, Inert Gas
Type	Solenoid
Orifice Diameter	1.2mm
Series	189
Body Material	Polyamide
Maximum Working Pressure	10 bar
Operating Temperature Range	-10 → +60 °C
Servo Assist	No
Minimum Operating Temperature	-10°C
Thread Standard or Connection Type	G
Maximum Operating Temperature	+60°C
Flow Factor Kv	1.2L/min
