ASCO 18900032.24/50-60, Solenoid Valve , 3 port(s) , NC, 24 V ac, 1/8in

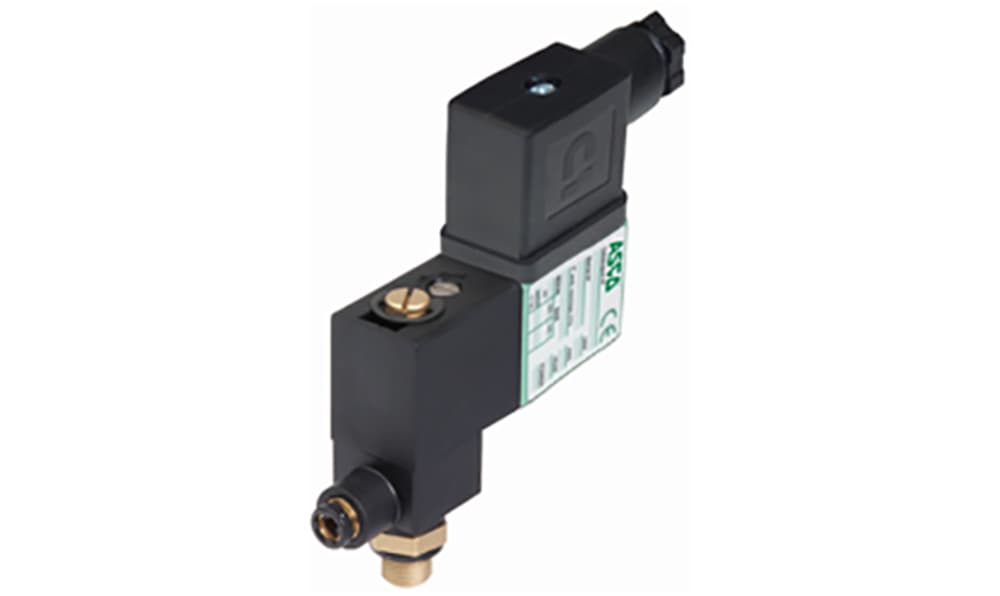

Name: ASCO 18900032.24/50-60, Solenoid Valve , 3 port(s) , NC, 24 V ac, 1/8in
Brand: Asco
SKU: 18900032.24/50-60
Availability: OutOfStock

Part Number : 18900032.24/50-60

Availability: Sold out

Detailed Description
Specifications

Accessories for piston valves

Control solenoids, signalling support and mini-sensor for E290 series valves.

Two-way Valves and Control Modules

Valves and control modules designed specifically to operate together, provide a valve opening which is proportional to the input signal and allows this to be correlated to the respective operating conditions.

Two-way Proportional Flow Valves & Control Modules

Brand	Asco
Supply Voltage	24 V ac
Number of Ports	3
Connection Size	1/8in
Connection	1/8 in G Female
Operation	Direct
Default Valve Position	NC
Suitable Applications	Filtered Air
Type	3/2
Orifice Diameter	1.2mm
Body Material	Glass Fibre Reinforced PA
Series	189
Maximum Working Pressure	10 bar
Operating Temperature Range	-10 → +60 °C
Thread Standard or Connection Type	G
Connection Gender	Male
Maximum Operating Temperature	+60°C
Minimum Operating Temperature	-10°C
Maximum Closing Time	20ms
Flow Factor Kv	0.03m³/h
Maximum Opening Time	20ms
