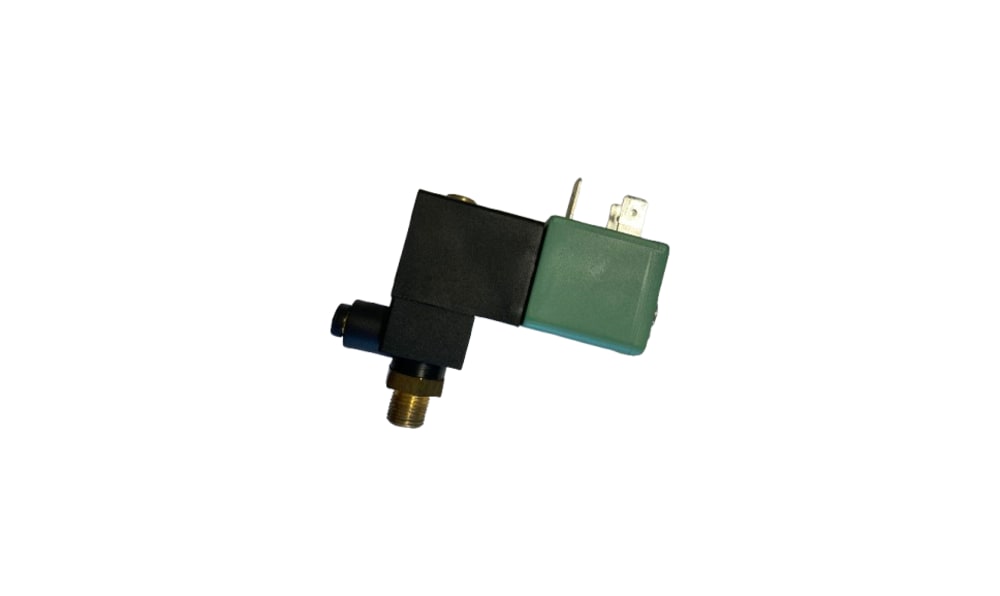

ASCO 18900070.24/DC, Solenoid Valve , 3 port(s) , NC, 24 V, 3/4in

Name: ASCO 18900070.24/DC, Solenoid Valve , 3 port(s) , NC, 24 V, 3/4in
Brand: Asco
SKU: 18900070.24/DC
Availability: OutOfStock

Part Number : 18900070.24/DC

Availability: Sold out

Detailed Description
Specifications

The Asco Solenoid Valve represents an ideal solution for efficient control in various industrial applications. Built to ISO 15218 standards, this three-way, direct-operated valve boasts a compact and lightweight design, facilitating easy installation on both individual and joinable subbases. Its AC/DC interchangeable solenoid operator allows for seamless adaptability, while the robust construction ensures compliance with comprehensive EU directives for safety and reliability. With features like manual operation and enhanced electrical safety standards, this solenoid valve is perfect for demanding environments. The compatibility with both M12 and spade plug connections provides flexibility for diverse installation needs, ensuring that operational efficiency is maintained across various systems.

Exclusive pad-mount design for straightforward piloting
Rapid response times enhance system efficiency
Manual operator feature ensures reliability during outages
Compact construction offers versatility in cramped spaces
Robust materials guarantee longevity and performance
Multiple connector options accommodate various setups
Electrical enclosure protection meets rigorous standards
Designed for simple maintenance and trouble-free operation

Brand	Asco
Supply Voltage	24 V
Number of Ports	3
Connection Size	3/4in
Connection	3/4 in G
Operation	Direct
Default Valve Position	NC
Suitable Applications	Air, Inert Gas
Type	Solenoid
Orifice Diameter	1.2mm
Series	189
Body Material	Polyamide
Maximum Working Pressure	10 bar
Operating Temperature Range	-10 → +60 °C
Servo Assist	No
Maximum Operating Temperature	+60°C
Minimum Operating Temperature	-10°C
Thread Standard or Connection Type	G
Flow Factor Kv	1.2L/min
