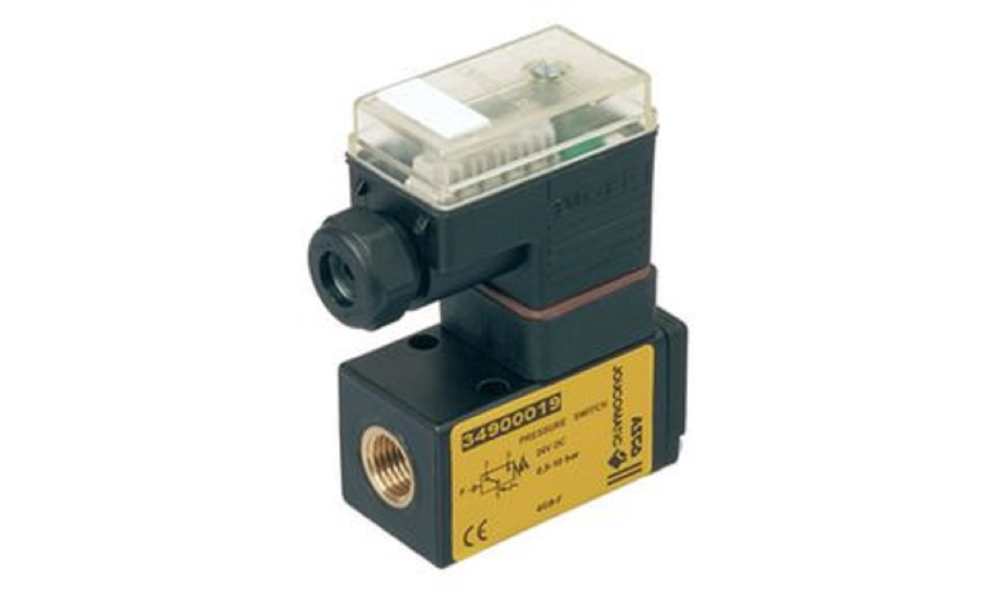

ASCO 34900018 | Adjustable Pressure Switch | 0.5 to 10 bar, G 1/4 tapped port
The ASCO 34900018 is an adjustable pneumatic pressure switch with a setting range of 0.5 to 10 bar, tapped port g 1/4. It is used to monitor pressure in compressed-air circuits.
Key features
- Adjustable switching pressure, 0.5 to 10 bar
- Engineered plastics body
- Operating pressure 0 to 10 bar, air and inert gas
- Tapped port G 1/4
- Detailed Description
- Specifications
- Downloads
Maximum allowable pressure (MAP) 16 bar
Fluid temperature -10°C to +60°C
| Part Number | 34900018 |
| Brand | ASCO |
| Series | 346 pneumatic accessory range |
| Function | Adjustable pressure switch |
| Setting Range | 0.5 to 10 bar |
| Mounting | Tapped port G 1/4 |
| Port Size | G 1/4 (ISO 228/1), tapped |
| Body Material | Engineered plastics |
| Operating Pressure (Air) | 0 to 10 bar |
| Media | Air, inert gas |
| Fluid Temperature | 0 to 60 °C |
| Weight | 0.16 kg |
