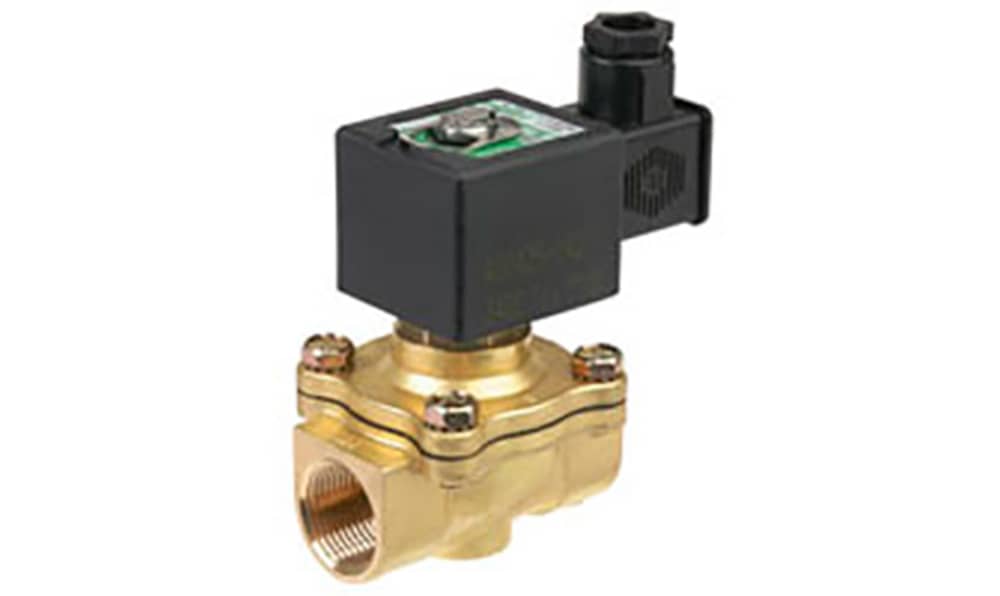

ASCO E210C035SCA8, Solenoid Valve , 2 port(s) , NO, 230 V ac, 3/4in

Name: ASCO E210C035SCA8, Solenoid Valve , 2 port(s) , NO, 230 V ac, 3/4in
Brand: Asco
SKU: E210C035SCA8
Availability: OutOfStock

Part Number : E210C035SCA8

Availability: Sold out

Detailed Description
Specifications

Two-way, Pilot Operated, Zero Pressure, N/O Valves

Two-way pilot operated solenoid valves with zero bar minimum operating pressure, normally open with threaded port connection.

Brass body
Pressure not required for operation
Compact & lightweight
DIN plug connection
Can be mounted in any position

Note

Pressure ranges are for water and may differ for other media.

Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left-hand side of the diagram describes the valves operation when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and is described on the right-hand side of the diagram. The 3 / 2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2 / 2-way valves as two ways. The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications indicates the appropriate connections and pressure capabilities when an alternative circuit function is required.

Brand	Asco
Supply Voltage	230 V ac
Number of Ports	2
Connection Size	3/4in
Connection	3/4 in Rp Female
Operation	Pilot
Default Valve Position	NO
Suitable Applications	Air, Inert Gas, Oil, Water
Type	2/2
Orifice Diameter	19mm
Body Material	Brass
Series	210
Maximum Working Pressure	9 bar
Operating Temperature Range	-20 → +75 °C
Thread Standard or Connection Type	Rp
Minimum Operating Temperature	-20°C
Connection Gender	Female
Maximum Operating Temperature	+75°C
Maximum Closing Time	120ms
Maximum Opening Time	120ms
Flow Factor Kv	4.7m³/h
