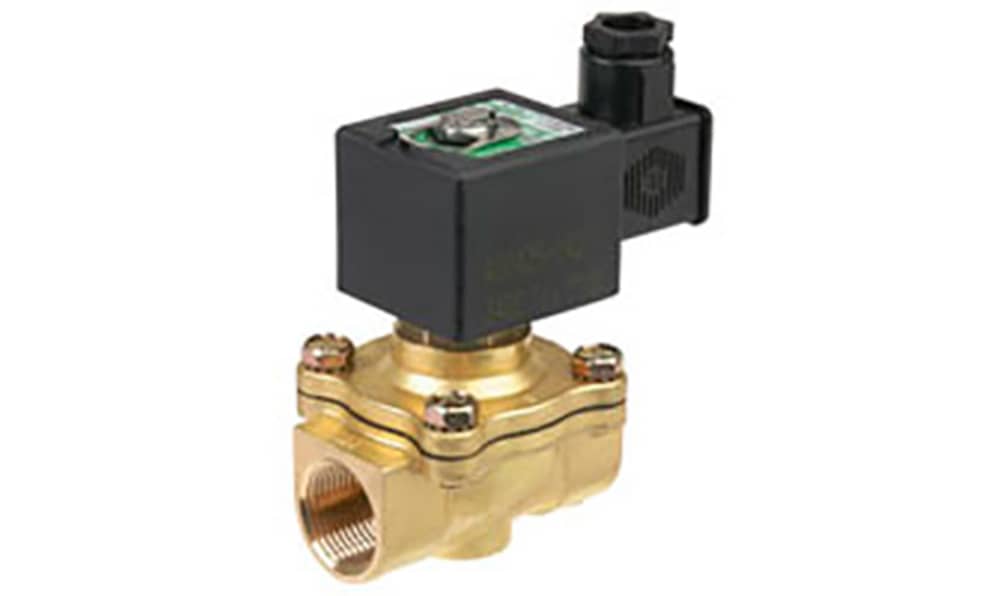

ASCO E210C094SCD2, Solenoid Valve , 2 port(s) , NC, 24 V dc, 1/2in

Name: ASCO E210C094SCD2, Solenoid Valve , 2 port(s) , NC, 24 V dc, 1/2in
Brand: Asco
SKU: E210C094SCD2
Availability: OutOfStock

Part Number : E210C094SCD2

Availability: Sold out

Detailed Description
Specifications

Two-Way, Pilot Operated, Zero Pressure, N/C Valves

Two-way, pilot operated solenoid valves, zero bar minimum operating pressure, normally closed with threaded port connection.

Brass body
Pressure not required for operation
Compact & lightweight
DIN plug connection
Can be mounted in any position

Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left-hand side of the diagram describes the valves operation when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and is described on the right-hand side of the diagram. The 3 / 2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2 / 2-way valves as two ways. The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications indicates the appropriate connections and pressure capabilities when an alternative circuit function is required.

Brand	Asco
Supply Voltage	24 V dc
Number of Ports	2
Connection Size	1/2in
Connection	1/2 in Rp Female
Operation	Pilot
Default Valve Position	NC
Suitable Applications	Air, Inert Gas, Oil, Water
Type	2/2
Orifice Diameter	16mm
Series	210
Body Material	Brass
Maximum Working Pressure	3 bar
Operating Temperature Range	-20 → +75 °C
Minimum Operating Temperature	-20°C
Thread Standard or Connection Type	Rp
Maximum Operating Temperature	+75°C
Connection Gender	Female
Maximum Closing Time	120ms
Flow Factor Kv	3.4m³/h
Maximum Opening Time	120ms
