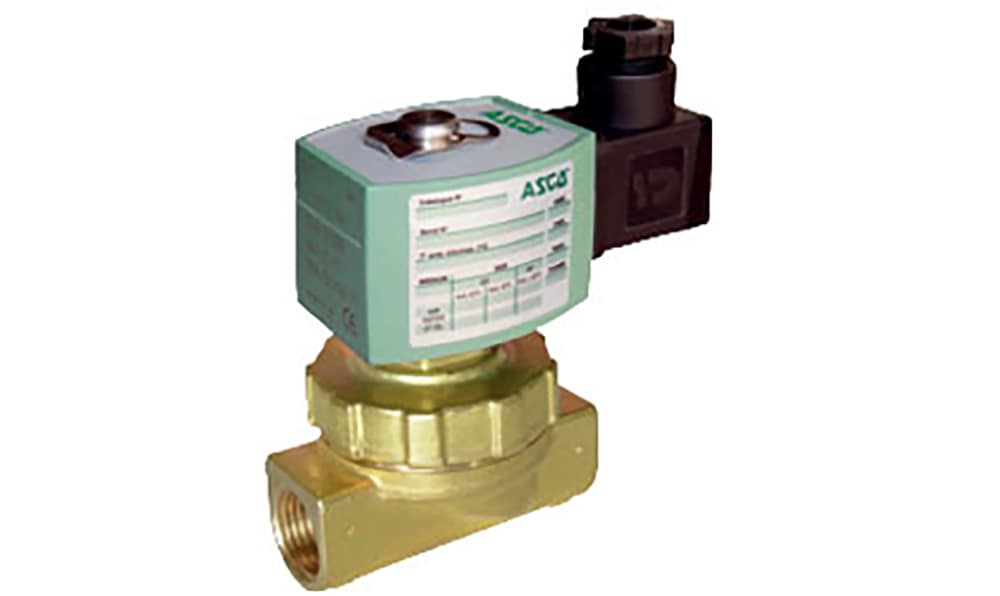

ASCO E220K409S1T00H8, Solenoid Valve , 2 port(s) , NC, 230 V ac, 3/4in

Name: ASCO E220K409S1T00H8, Solenoid Valve , 2 port(s) , NC, 230 V ac, 3/4in
Brand: Asco
SKU: E220K409S1T00H8
Availability: OutOfStock

Part Number : E220K409S1T00H8

Availability: Sold out

Detailed Description
Specifications

Two-way, Direct Operated Steam Valve

Direct operated solenoid valves with a brass body designed for steam and hot water applications. High temperature coils and PTFE seals are used ensuring long life and maximum reliability. Normally closed operation.

Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left-hand side of the diagram describes the valves operation when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and is described on the right-hand side of the diagram. The 3 / 2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2 / 2-way valves as two ways. The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications indicates the appropriate connections and pressure capabilities when an alternative circuit function is required.

Brand	Asco
Supply Voltage	230 V ac
Number of Ports	2
Connection Size	3/4in
Connection	3/4 in G Female
Operation	Pilot
Default Valve Position	NC
Suitable Applications	Steam, Water
Type	2/2
Orifice Diameter	19mm
Series	E220K
Body Material	Brass
Maximum Working Pressure	10 (Water) bar, 7.5 (Steam) bar
Operating Temperature Range	-20 → +177 (Steam) °C, -20 → +98 (Hot Water) °C
Maximum Operating Temperature	+177 (Steam) °C, +98 (Hot Water) °C
Thread Standard or Connection Type	G
Minimum Operating Temperature	-20°C
Connection Gender	Female
Maximum Opening Time	120ms
Flow Factor Kv	7.5m³/h
