ASCO E262C090E7A8, Solenoid Valve , 2 port(s) , NC, 230 V ac, 1/4in

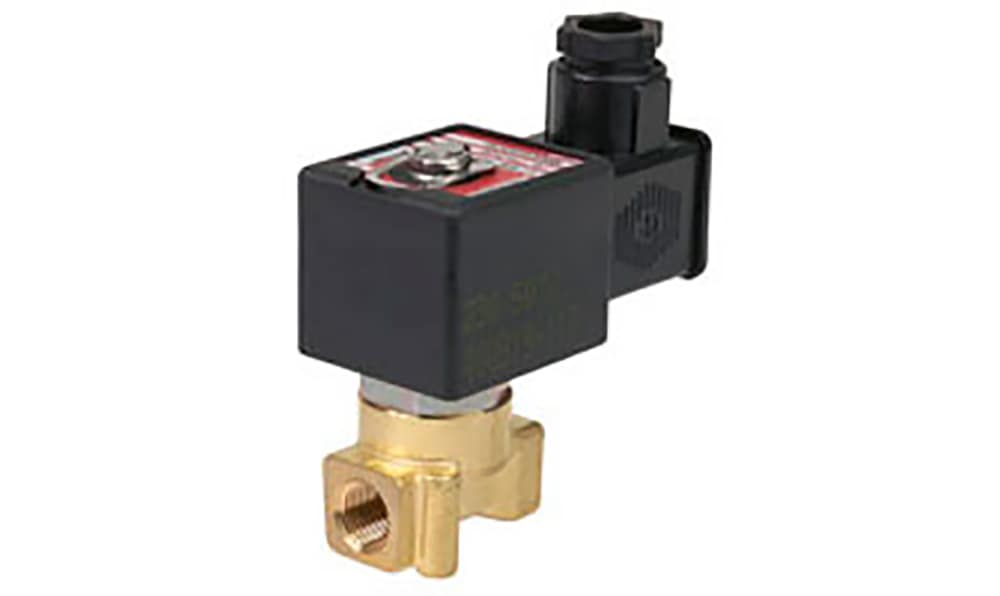

Name: ASCO E262C090E7A8, Solenoid Valve , 2 port(s) , NC, 230 V ac, 1/4in
Brand: Asco
SKU: E262C090E7A8
Availability: OutOfStock

Part Number : E262C090E7A8

Availability: Sold out

Detailed Description
Specifications

Two-way, N/C, Gas Pilot/Burner Control Valves

Two-way, direct operated, EN161 approved solenoid valves for use on gas pilot and gas burner control, zero bar minimum operating pressure, normally closed, threaded port connection.

Pressure not required for operation
Compact & lightweight
ISO 4400 DIN connection
Class A, group 2 service & Gas families 1 & 2
Can be mounted in any position

Approvals

EN161

Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left-hand side of the diagram describes the valves operation when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and is described on the right-hand side of the diagram. The 3 / 2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2 / 2-way valves as two ways. The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications indicates the appropriate connections and pressure capabilities when an alternative circuit function is required.

Brand	Asco
Supply Voltage	230 V ac
Number of Ports	2
Connection Size	1/4in
Connection	1/4 in Rp Female
Operation	Direct
Default Valve Position	NC
Suitable Applications	Combustible Gas
Type	2/2
Orifice Diameter	6.7mm
Series	262
Body Material	Brass
Maximum Working Pressure	2.1 bar
Operating Temperature Range	0 → +60 °C
Connection Gender	Female
Thread Standard or Connection Type	Rp
Maximum Operating Temperature	+60°C
Minimum Operating Temperature	0°C
Maximum Closing Time	1s
Maximum Opening Time	1s
Flow Factor Kv	1.12m³/h
