ASCO E262K184S1N01-24VCC, Solenoid Valve , 2 port(s) , NC, 24 V dc, 1/4in

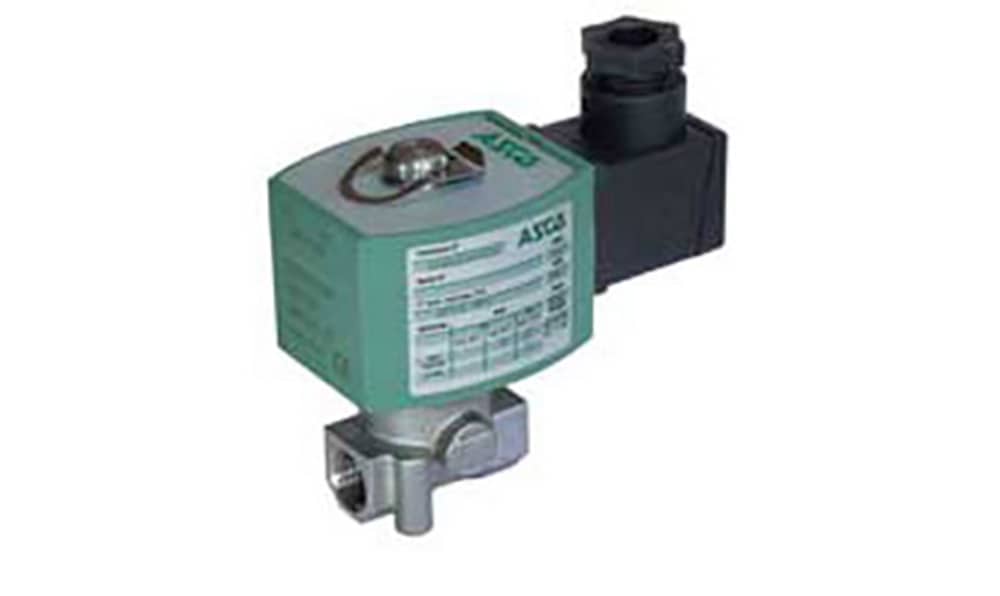

Name: ASCO E262K184S1N01-24VCC, Solenoid Valve , 2 port(s) , NC, 24 V dc, 1/4in
Brand: Asco
SKU: E262K184S1N01-24VCC
Availability: OutOfStock

Part Number : E262K184S1N01-24VCC

Availability: Sold out

Detailed Description
Specifications

Two-way, Direct Operated, High Pressure, N/C Valves

Direct operated solenoid valves with a stainless steel or brass body and NBR rubber seals. Fitted with a manual override and suitable for use with air, inert gases oil and water. ASCO's 262 series process valves are ROHs compliant and do not require a minimum pressure to operate. Coils can easily be changed between AC and DC. Available normally open or normally closed.

Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left-hand side of the diagram describes the valves operation when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and is described on the right-hand side of the diagram. The 3 / 2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2 / 2-way valves as two ways. The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications indicates the appropriate connections and pressure capabilities when an alternative circuit function is required.

Brand	Asco
Supply Voltage	24 V dc
Number of Ports	2
Connection Size	1/4in
Connection	1/4 in G Female
Operation	Direct
Default Valve Position	NC
Suitable Applications	Air, Oil, Water
Type	2/2
Orifice Diameter	3.2mm
Series	E262K
Body Material	Stainless Steel
Maximum Working Pressure	6.5 (Oil) bar, 7 (Water) bar, 7.5 (Air) bar
Operating Temperature Range	-25 → +80 °C
Maximum Operating Temperature	+80°C
Thread Standard or Connection Type	G
Connection Gender	Female
Minimum Operating Temperature	-25°C
Maximum Opening Time	25ms
Flow Factor Kv	0.3m³/h
