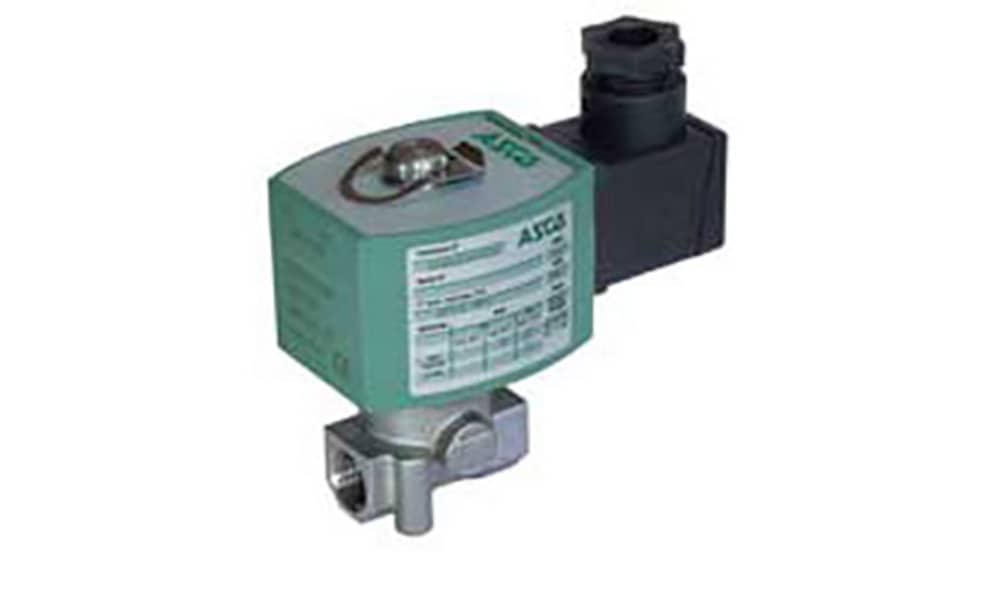

ASCO E262K262S1N00-230V 50HZ, Solenoid Valve , 2 port(s) , NO, 230 V ac, 1/4in

Name: ASCO E262K262S1N00-230V 50HZ, Solenoid Valve , 2 port(s) , NO, 230 V ac, 1/4in
Brand: Asco
SKU: E262K262S1N00-230V 50HZ
Availability: OutOfStock

Part Number : E262K262S1N00-230V 50HZ

Availability: Sold out

Detailed Description
Specifications

Two-way, Direct Operated, High Pressure, N/C Valves

Direct operated solenoid valves with a stainless steel or brass body and NBR rubber seals. Fitted with a manual override and suitable for use with air, inert gases oil and water. ASCO's 262 series process valves are ROHs compliant and do not require a minimum pressure to operate. Coils can easily be changed between AC and DC. Available normally open or normally closed.

Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left-hand side of the diagram describes the valves operation when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and is described on the right-hand side of the diagram. The 3 / 2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2 / 2-way valves as two ways. The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications indicates the appropriate connections and pressure capabilities when an alternative circuit function is required.

Brand	Asco
Supply Voltage	230 V ac
Number of Ports	2
Connection Size	1/4in
Connection	1/4 in G Female
Operation	Direct
Default Valve Position	NO
Suitable Applications	Air, Oil, Water
Type	2/2
Orifice Diameter	3.2mm
Body Material	Brass
Series	E262K
Maximum Working Pressure	4.5 (Oil) bar, 6.5 (Air) bar, 6.5 (Water) bar
Operating Temperature Range	-25 → +80 °C
Thread Standard or Connection Type	G
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C
Connection Gender	Female
Flow Factor Kv	0.3m³/h
Maximum Opening Time	25ms
