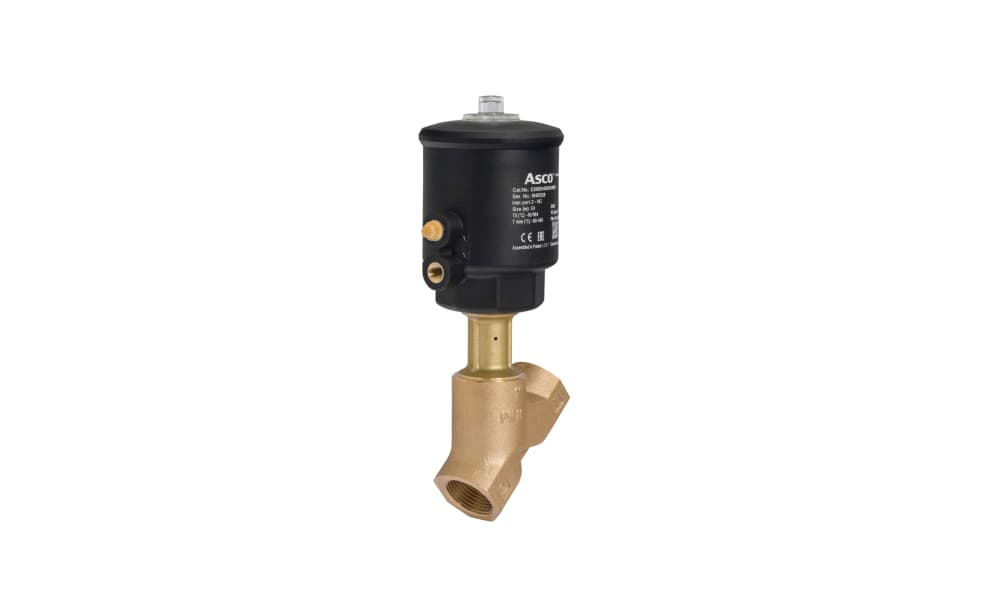

ASCO E290D0550DA0000, Angle Seat type Pneumatic Actuated Valve, ISO 1.25in

Name: ASCO E290D0550DA0000, Angle Seat type Pneumatic Actuated Valve, ISO 1.25in
Brand: Asco
SKU: E290D0550DA0000
Availability: OutOfStock

Part Number : E290D0550DA0000

Availability: Sold out

Detailed Description
Specifications

The Asco 290 series 290 pressure-operated, direct acting angle-body piston solenoid valve built for demanding applications. It's straight-through body design is available in bronze or stainless steel. The valve is suitable for general service applications (air, inert gas, water, oil, and light slurries), plus steam, hot water, and auxiliary fluids within the food and beverage industry.

Suitable for broad range of industrial machines and manufacturing process
High reliability, long service life and exceptional and repeatable tight shutoff
Adjustable actuator enables 360° access to pilot port
Modular design provides exceptional flexibility
Large piloting orifice and low hysteresis creates fast cycle times
Anti-water hammer design and back pressure resistant
Extensive range of actuators, options, certifications and accessories
High performance, maintenance-free actuator and stuffing box
Easy and fast maintenance without the need to remove valve body from pipework

Brand	Asco
Thread Size	1.25in
Valve Type	Angle Seat
Default Valve Position	Normally Closed
Return Type	Spring
Thread Standard	ISO
