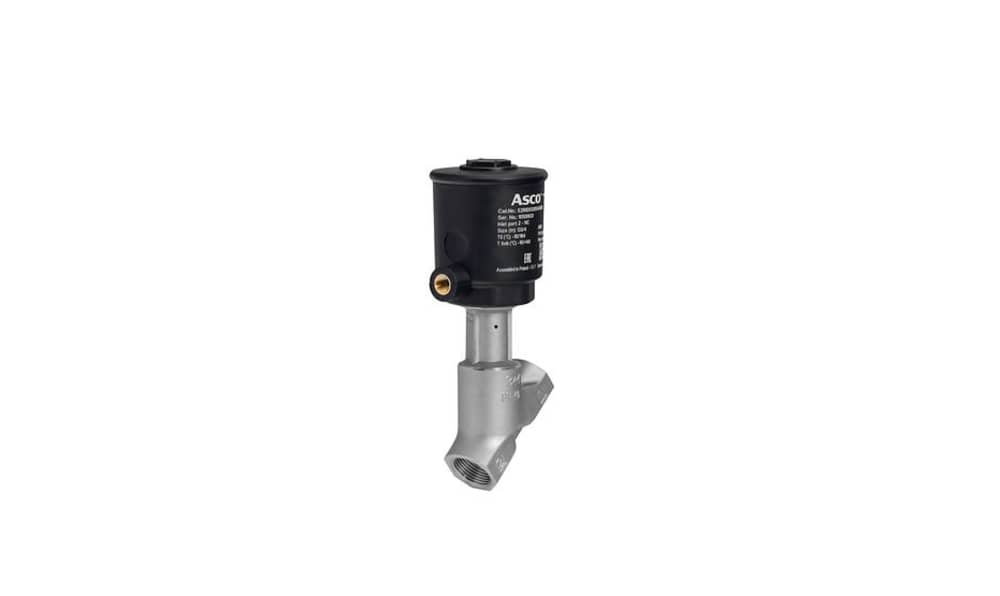

ASCO E290D33R0SA0000 | Pressure Operated Angle-Body Valve | 20 mm (3/4"), Stainless Steel Body, 2/2 NC

Name: ASCO E290D33R0SA0000 | Pressure Operated Angle-Body Valve | 20 mm (3/4"), Stainless Steel Body, 2/2 NC
Brand: Asco
SKU: E290D33R0SA0000
Availability: InStock

Part Number : E290D33R0SA0000

The ASCO E290D33R0SA0000 is a pressure-operated 2/2 normally closed, above the disc valve from the ASCO Series 290 range, with a stainless steel body and 20 mm (3/4") nominal diameter. It has a G/RP (ISO 228-1 / ISO 7-1) connection and a G 1/8 pilot connection. The valve is operated by pilot pressure and needs no electrical supply.

Key features

2/2 Normally Closed, above the disc, pressure operated
Threaded G/RP connection
Stainless Steel body, 20 mm (3/4") nominal diameter
Operator diameter Ø 50 mm, pilot G 1/8
ST-ST actuator actuator

Availability: low stock

Detailed Description
Specifications
Downloads

The Asco Pneumatic Valve is a 2-way, pressure-operated valve featuring a durable stainless steel body and an actuator, ideal for industrial machines and manufacturing processes. It offers high reliability, long service life, and exceptional tight shutoff, with an adjustable actuator that enables 360° access to the pilot port for ease of installation and maintenance. Certified under the Pressure Equipment Directive 2014/68/EU, EN ISO 13849-1, and IEC 61508 Standard (SIL 2), this valve also complies with Reach, RoHS, and EAC directives, making it suitable for high-safety, critical applications in diverse industries.

Modular design provides exceptional flexibility
Large piloting orifice and low hysteresis creates fast cycle times
Anti-water hammer design and back pressure resistant
High performance
Maintenance-free actuator and stuffing box
Easy and fast maintenance without the need to remove valve body from pipework

Part Number	E290D33R0SA0000
Brand	ASCO
Series	290 Series Next Gen
Valve Type	Pressure operated valve (pneumatically piloted)
Function	2/2 Normally Closed, above the disc
Nominal Diameter	20 mm (3/4")
Connection	G/RP (ISO 228-1 and ISO 7-1 combination)
Body Material	Stainless Steel
Body Type	Threaded body
Operator Diameter	Ø 50 mm
Pilot Connection	G 1/8
Actuator	ST-ST actuator
Third Port	Without third port (2-way)
Supply Voltage	None (pressure operated)

ASCO E290D33R0SA0000 | Pressure Operated Angle-Body Valve | 20 mm (3/4"), Stainless Steel Body, 2/2 NC

DOWNLOAD CATALOG

E290D33R0SA0000 Datasheet - E290D33R0SA0000 A700000013979490

E290D33R0SA0000 Datasheet - E290D33R0SA0000 A700000013979728
