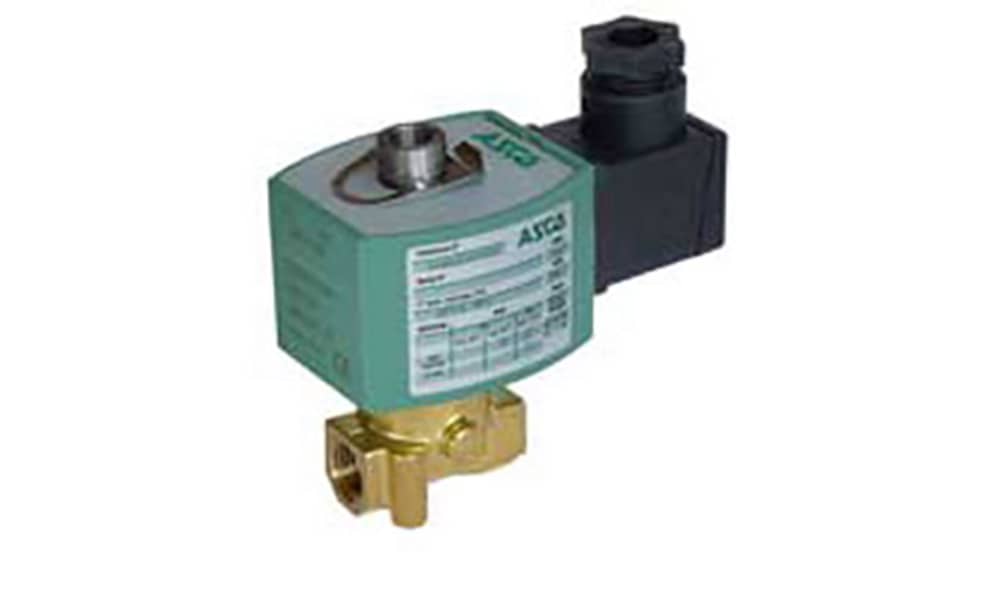

ASCO E314K035S1N01-24V CC, Solenoid Valve , 3 port(s) , NC, 24 V dc, 1/4in

Name: ASCO E314K035S1N01-24V CC, Solenoid Valve , 3 port(s) , NC, 24 V dc, 1/4in
Brand: Asco
SKU: E314K035S1N01-24V CC
Availability: OutOfStock

Part Number : E314K035S1N01-24V CC

Availability: Sold out

Detailed Description
Specifications

Three-way, Direct Operated Valves, N/C

Direct operated solenoid valves with a stainless steel or brass body and NBR rubber seals. Fitted with a manual override and suitable for use with air, inert gases oil and water. ASCOs 314 series solenoid valves provide a compact solution for controlling single-acting actuators or filling and draining systems.

Features and Benefits

• Compact valve intended for single acting actuator control
• High operating speed
• Valve optimised for general 3 way piloting applications, only one spring and two moving parts
• RoHS compliant
• Valves do not require a minimum operating pressure
• Satisfy all relevant EC directives

Installation

• Can be mounted in any position without affecting operation
• Solenoid valve has 2 mounting holes in body
• Pipe connections 1/4 (G) have standard combination thread according to ISO 228/1 and ISO 7/1. Pipe connections G 1/8 have standard thread according to ISO 228/1
• Installation / maintenance instructions included with each valve

3 Way Inert Gases and Fluid Valves

Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left hand side of the diagram describes the valves operation when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and this is described on the right hand side of the diagram, see the typical schematic diagram below.,The 3//2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2//2-way valves as two-way.,The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications will indicate the appropriate connections and pressure capabilities should an alternative circuit function be required.

Brand	Asco
Supply Voltage	24 V dc
Number of Ports	3
Connection Size	1/4in
Connection	1/4 in G Female
Operation	Direct
Default Valve Position	NC
Suitable Applications	Air, Oil, Water
Type	3/2
Orifice Diameter	2.4mm
Series	E314K
Body Material	Brass
Maximum Working Pressure	10 (Air) bar, 6 (Oil) bar, 8 (Water) bar
Operating Temperature Range	-25 → +90 °C
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+90°C
Connection Gender	Female
Thread Standard or Connection Type	G
Maximum Opening Time	25ms
Flow Factor Kv	0.17m³/h
