ASCO G256C134S1V01FH, Solenoid Valve , 2 port(s) , NC, 230 V, 1/8in

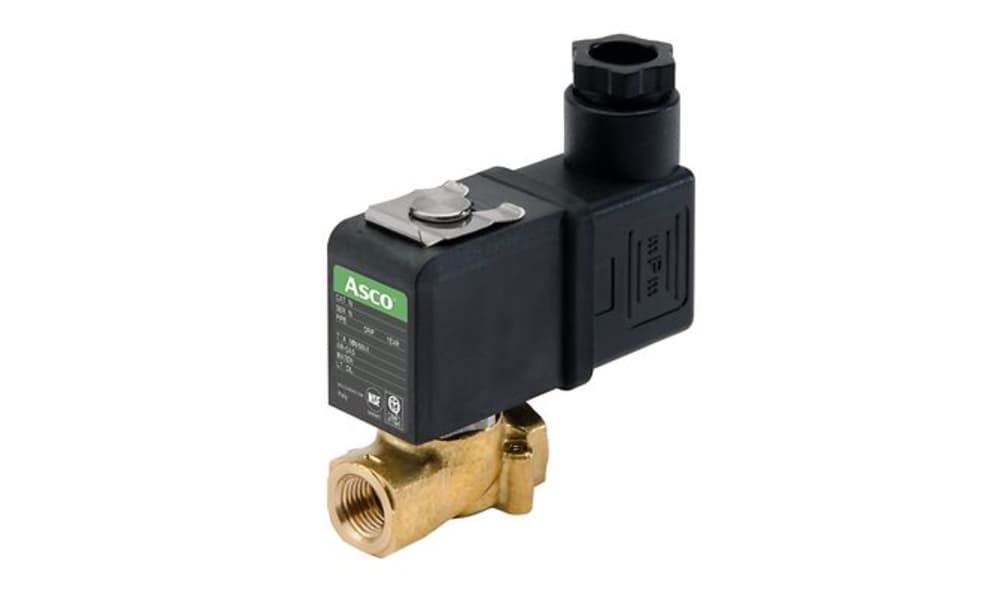

Name: ASCO G256C134S1V01FH, Solenoid Valve , 2 port(s) , NC, 230 V, 1/8in
Brand: Asco
SKU: G256C134S1V01FH
Availability: OutOfStock

Part Number : G256C134S1V01FH

Availability: Sold out

Detailed Description
Specifications

The Asco solenoid valve is engineered for precision control in various applications. Recognised for its reliability, the device functions as either normally closed or normally open, providing exceptional versatility. The compact design allows for quick installation, while the robust construction ensures longevity even in challenging environments. With options compatible with diverse fluids including air and water, it operates seamlessly across a wide range of flow and pressure ratings. The appliance not only simplifies maintenance with a quick-disassembly core tube but also meets stringent industry certifications, making it suitable for a myriad of applications where fluid control is paramount. Its lightweight design facilitates easy handling, making it an ideal solution for modern automation needs.

Wide compatibility with various fluid types enhances versatility
Quick-disassembly feature allows for effortless maintenance
Engineered to meet rigorous industry certifications, ensuring reliability
Lightweight, compact design promotes ease of installation
Manual operation option available for added convenience
Interchangeable AC/DC solenoid without disassembly simplifies conversions
Environmentally compliant construction addresses modern regulatory requirements

Brand	Asco
Supply Voltage	230 V
Number of Ports	2
Connection Size	1/8in
Connection	G 1/8
Operation	Direct
Default Valve Position	NC
Suitable Applications	Air, Inert Gas, Oil, Water
Type	Solenoid
Orifice Diameter	1.2mm
Body Material	Brass
Series	256
Maximum Working Pressure	20 bar
Operating Temperature Range	-10 → +60 °C
Servo Assist	No
Minimum Operating Temperature	-10°C
Thread Standard or Connection Type	G
Maximum Operating Temperature	+60°C
Flow Factor Kv	0.85L/min
