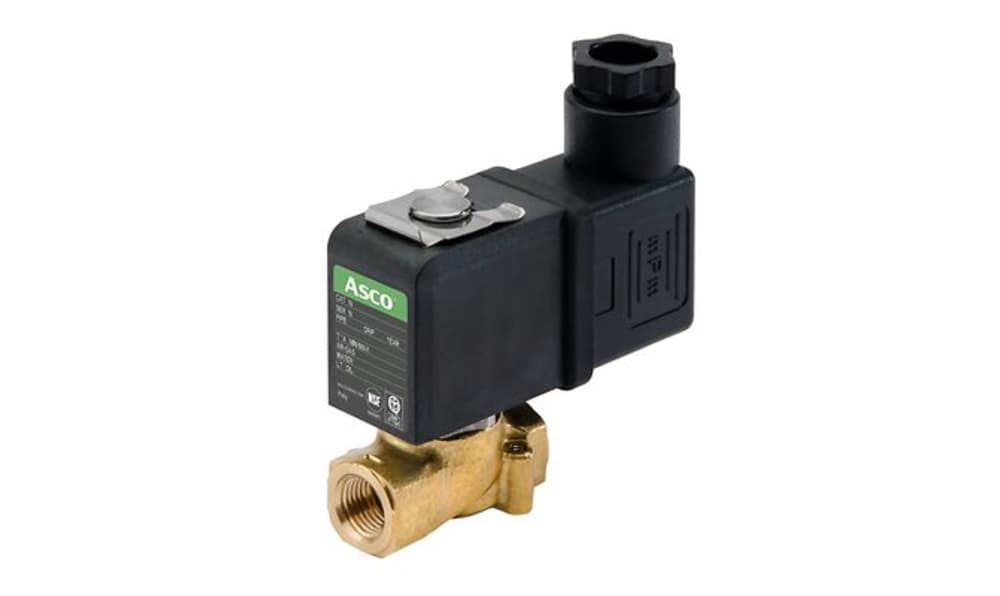

ASCO G256C135S0V00F1, Solenoid Valve , 2 port(s) , Normally Closed, 24 V dc, G1/8in

Name: ASCO G256C135S0V00F1, Solenoid Valve , 2 port(s) , Normally Closed, 24 V dc, G1/8in
Brand: Asco
SKU: G256C135S0V00F1
Availability: OutOfStock

Part Number : G256C135S0V00F1

Availability: Sold out

Detailed Description
Specifications

The Asco Compact valve is a normally closed, two-way design with a connection size of G1/8 inch. It has an orifice size of 1.6 millimeters and operates on 24V DC with a power consumption of 3.5 watts. The valve body is made of brass, providing durability, while the resilient sealing material is FPM. The coil is classified under Class F for efficient performance.

Connection size G1/8 inch
Nominal diameter of 5 millimeters
Spade plug without connector

Brand	Asco
Supply Voltage	24 V dc
Number of Ports	2
Connection Size	G1/8in
Connection	1/8 in G
Operation	Direct
Default Valve Position	Normally Closed
Suitable Applications	Air, Gas, Liquid, Oil, Water
Type	2/2
Orifice Diameter	1.6mm
Series	256
Body Material	Brass
Maximum Working Pressure	12 bar
Operating Temperature Range	-10 → +60 °C
Thread Standard or Connection Type	G
Connection Gender	Female
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+60°C
