ASCO G256C135S0V01FH, Solenoid Valve , 2 port(s) , Normally Closed, 230 V ac, G1/8in

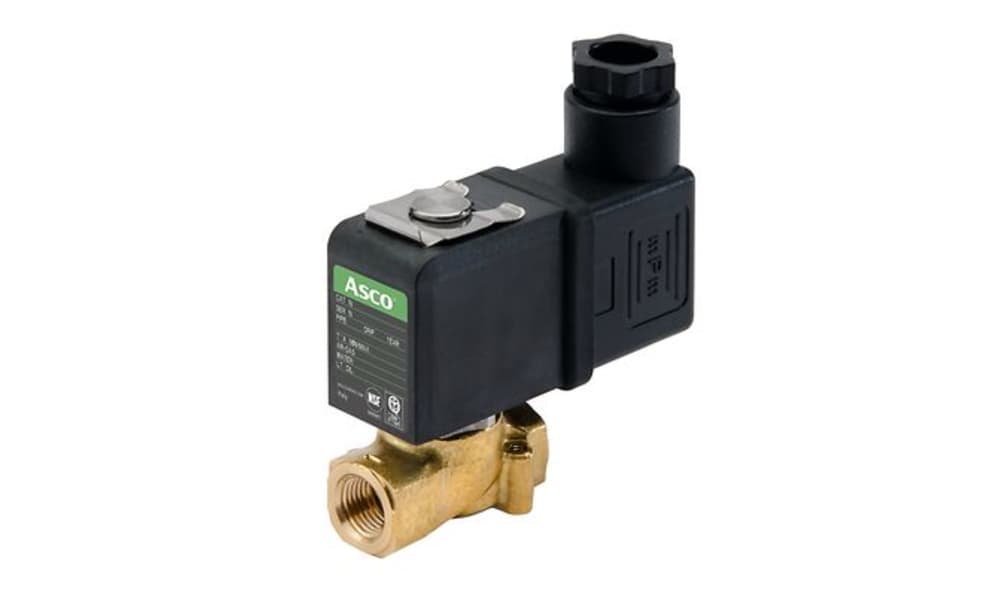

Name: ASCO G256C135S0V01FH, Solenoid Valve , 2 port(s) , Normally Closed, 230 V ac, G1/8in
Brand: Asco
SKU: G256C135S0V01FH
Availability: OutOfStock

Part Number : G256C135S0V01FH

Availability: Sold out

Detailed Description
Specifications

HB Series

Panasonic HB Series Type V electrolytic capacitors provide 2000 hours endurance at +105°C. These surface mount capacitors have a low profile.

AEC-Q200 qualified (some deviations apply)
Some capacitors within this range can withstand high reflow temperatures
High ripple current
High reliability
Low impedance
Long life
Surface mount

Applications

Panasonic HB Series Type V electrolytic capacitors are AEC-Q200 qualified and suitable for use in automotive applications. These Panasonic electrolytic capacitors are recommended for use in industrial infrastructure in power supplies, inverters, motor drivers, measuring instruments, HEMS, BEMS and FEMS. Other suitable applications include ICT applications such as PCs, base stations, data centres, non-contact charge. HB Series Type V aluminium capacitors can be utilised in home appliances including air conditioners, white goods and home information appliances. Other uses include lighting, medical equipment, OA equipment, electric tools and power management, safety, infotainment and comfort accessories in automotive applications.

The Asco Compact valve is a normally closed, two-way design with an orifice size of 1.6 millimeters. It operates on 230V at 50-60 Hz with a power consumption of 3.0 watts. The valve body is made from brass, ensuring durability, while the resilient sealing material is FPM. It features a Class F coil for reliable operation.

Connection size G1/8 inch
Nominal diameter of 5 millimeters
Spade plug without connector

Brand	Asco
Supply Voltage	230 V ac
Number of Ports	2
Connection Size	G1/8in
Connection	1/8 in G
Operation	Direct
Default Valve Position	Normally Closed
Suitable Applications	Air, Gas, Liquid, Oil, Water
Type	2/2
Orifice Diameter	1.6mm
Series	256
Body Material	Brass
Maximum Working Pressure	12 bar
Operating Temperature Range	-10 → +60 °C
Thread Standard or Connection Type	G
Maximum Operating Temperature	+60°C
Connection Gender	Female
Minimum Operating Temperature	-10°C
