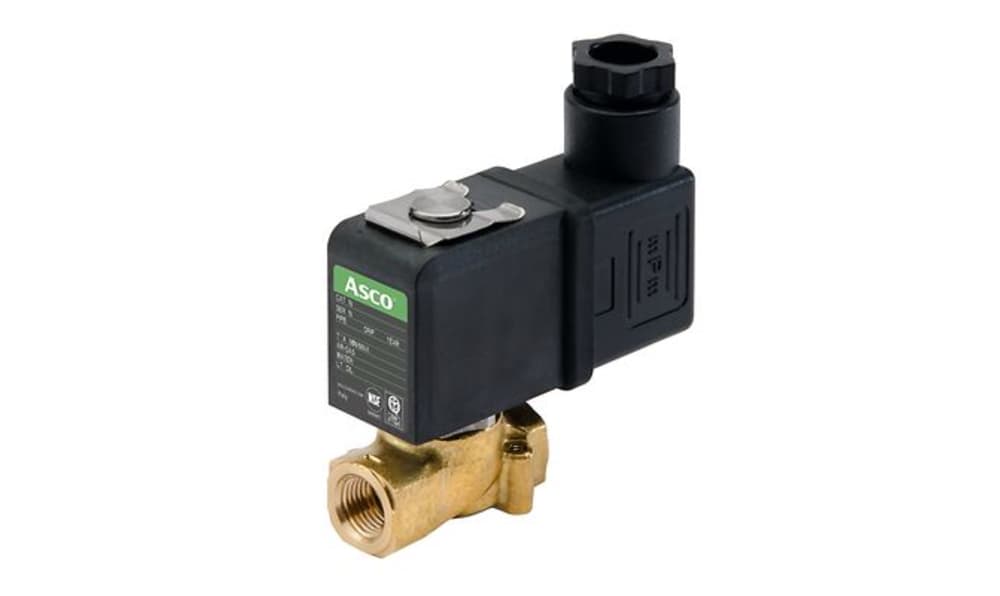

ASCO G256C136S1V01FQ, Solenoid Valve , 2 port(s) , NC, 24 V, 1/8in

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ASCO G256C136S1V01FQ, Solenoid Valve , 2 port(s) , NC, 24 V, 1/8in

Name: ASCO G256C136S1V01FQ, Solenoid Valve , 2 port(s) , NC, 24 V, 1/8in
Brand: Asco
SKU: G256C136S1V01FQ
Availability: OutOfStock

Part Number : G256C136S1V01FQ

Availability: Sold out

Detailed Description
Specifications

The Asco Solenoid Valves Series 256 represents the pinnacle of innovation in automation control. Designed to handle a multitude of applications, this direct-operated solenoid valve excels in efficiency and reliability. Constructed from durable materials, it offers versatile compatibility with various fluids, making it an essential component for industries ranging from food processing to manufacturing. Its lightweight design ensures easier installation while maintaining robust performance under a broad temperature range. Coupled with rapid responsiveness, this valve is engineered to enhance system integrity and operational safety.

Offers quick disassembly for straightforward maintenance
Standard manual operator simplifies installation for specific versions
Interchangeable solenoid design provides operational flexibility
Certified by UL429 and EN 60335 for added reliability
Compact construction reduces the overall footprint in installations
Ensures compliance with all relevant EU and EAC directives
Variety of seal and disc materials cater to diverse environmental conditions
Electrical enclosure protection rated at IP67 guarantees durability

Brand	Asco
Supply Voltage	24 V
Number of Ports	2
Connection Size	1/8in
Connection	G 1/8
Operation	Direct
Default Valve Position	NC
Suitable Applications	Air, Inert Gas, Oil, Water
Type	Solenoid
Orifice Diameter	2mm
Body Material	Brass
Series	256
Maximum Working Pressure	15 bar
Operating Temperature Range	-10 → +60 °C
Servo Assist	No
Maximum Operating Temperature	+60°C
Thread Standard or Connection Type	G
Minimum Operating Temperature	-10°C
Flow Factor Kv	1.99L/min
