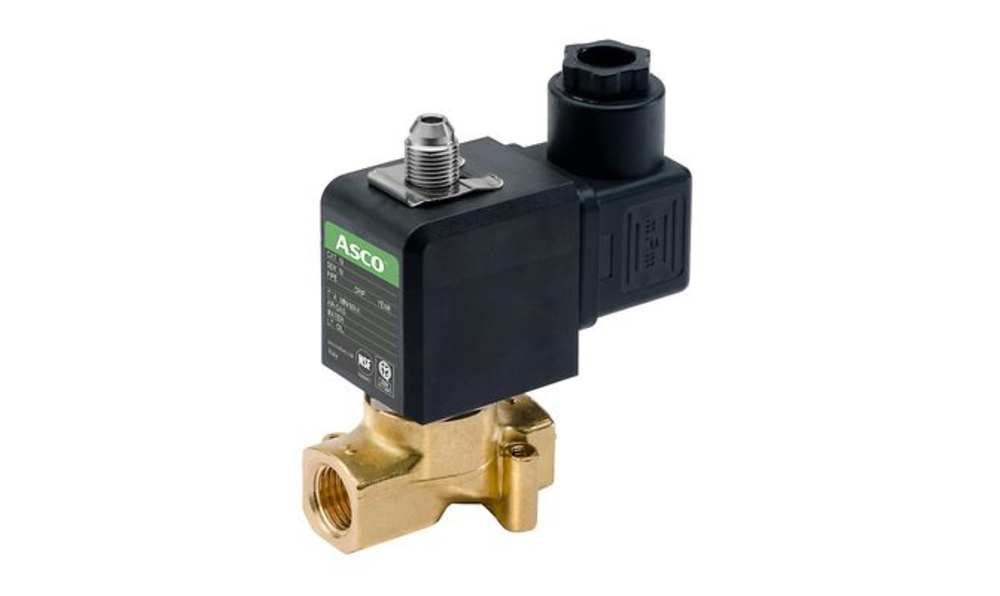

ASCO G356C134S1V01FH, Solenoid Valve , 3 port(s) , NC, 230 V, 1/4in

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ASCO G356C134S1V01FH, Solenoid Valve , 3 port(s) , NC, 230 V, 1/4in

Name: ASCO G356C134S1V01FH, Solenoid Valve , 3 port(s) , NC, 230 V, 1/4in
Brand: Asco
SKU: G356C134S1V01FH
Availability: OutOfStock

Part Number : G356C134S1V01FH

Availability: Sold out

Detailed Description
Specifications

The Asco solenoid valve exemplifies precision and efficiency, tailored for diverse applications. Designed as a 3-way, normally closed valve, it's engineered to provide reliable operation across varying flow and pressure conditions. Its compact and lightweight construction ensures seamless integration into existing systems without compromising functionality. With a robust build using materials such as brass and stainless steel, this valve not only stands up to the rigours of demanding environments but also adheres to industry standards, including certifications such as UL429 and EN 60335. This valve's easy maintenance features, including quick disassembly of the core tube, further enhance its operational efficiency, making it an ideal choice for those seeking reliability and performance.

Wide range of flow and pressure ratings for versatile applications
Quick disassembly allows for easy maintenance and minimal downtime
The manual operator facilitates straightforward installation, enhancing user experience
Interchangeability between AC and DC solenoids without disassembly optimises flexibility
Compact design reduces installation space requirements, making it suitable for constrained environments
Materials used ensure compatibility with a variety of fluids, expanding operational scope
Electrical safety standards provide peace of mind in operational scenarios

Brand	Asco
Supply Voltage	230 V
Number of Ports	3
Connection Size	1/4in
Connection	G 1/4
Operation	Direct
Default Valve Position	NC
Suitable Applications	Air, Inert Gas, Oil, Water
Type	Solenoid
Orifice Diameter	1.2mm
Body Material	Brass
Series	356
Maximum Working Pressure	15 bar
Operating Temperature Range	-10 → +60 °C
Servo Assist	No
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+60°C
Thread Standard or Connection Type	G
Flow Factor Kv	0.83L/min
