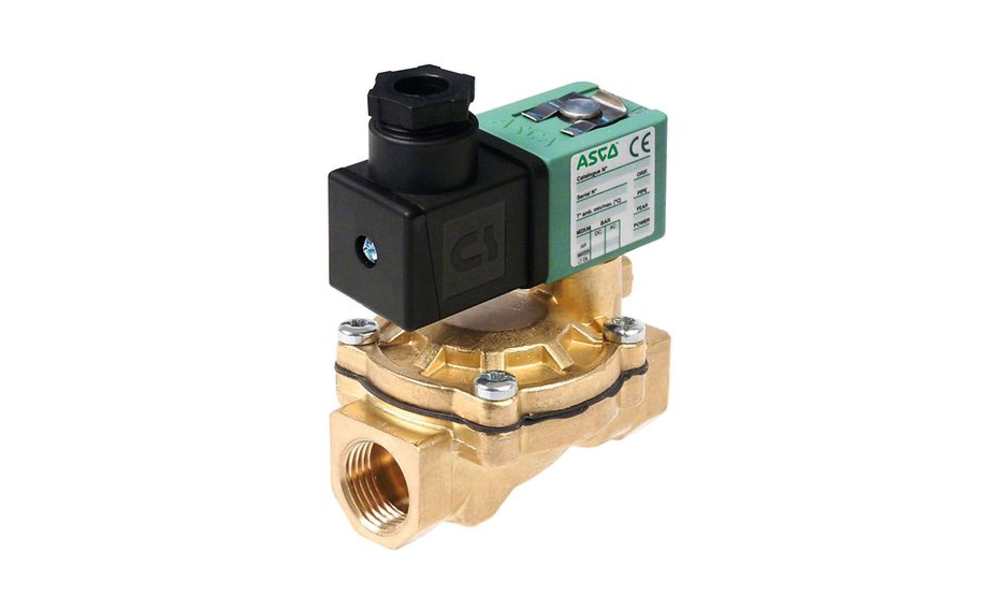

ASCO SCE238D001.12/DC, Solenoid Valve , 2 port(s) , NC, 12 V, 1/4in

Name: ASCO SCE238D001.12/DC, Solenoid Valve , 2 port(s) , NC, 12 V, 1/4in
Brand: Asco
SKU: SCE238D001.12/DC
Availability: OutOfStock

Part Number : SCE238D001.12/DC

Availability: Sold out

Detailed Description
Specifications

The Asco solenoid valve is a precision-engineered component designed for the reliable control of fluids and gases in a myriad of applications. This pilot-operated 2/2 normally closed valve features a robust built-in pilot and a floating diaphragm, ensuring consistent operation under varying conditions. With an expansive connectivity range from 3/8 to 2 inches and compatibility with several sealing materials, it stands out in its versatility and utility. The valve brings together modern design and practical functionality, effectively satisfying all relevant EU directives. Its ability to operate within a broad differential pressure range makes it ideal for diverse industrial environments, enhancing productivity and operational efficiency. Additionally, with certifications for electrical safety and enclosure protection, it prioritises user safety and equipment durability, embodying the high standards expected in contemporary engineering solutions.

Pilot-operated design guarantees enhanced control over fluid and gas flow
Interchangeable magnetic heads facilitate compatibility with both AC and DC systems
Designed to function effectively across a wide ambient temperature spectrum
Constructed from robust materials for longevity in demanding applications
Complies with essential EU directives, ensuring regulatory adherence
Can be mounted in any position without impacting operational efficiency
Available with optional sealing materials to suit specific service requirements
Electrical enclosure offering IP65 protection against dust and water ingress

Brand	Asco
Supply Voltage	12 V
Number of Ports	2
Connection Size	1/4in
Connection	G 1/4
Operation	Pilot
Default Valve Position	NC
Suitable Applications	Air, Inert Gas, Water
Type	Solenoid
Orifice Diameter	12mm
Series	238
Body Material	Brass
Maximum Working Pressure	10 bar
Operating Temperature Range	-10 → +60 °C
Servo Assist	No
Maximum Operating Temperature	+60°C
Minimum Operating Temperature	-10°C
Thread Standard or Connection Type	G
Flow Factor Kv	40L/min
