ASCO SCE238D003.24/DC, Solenoid Valve , 2 port(s) , NC, 24 V, 1/4in

Name: ASCO SCE238D003.24/DC, Solenoid Valve , 2 port(s) , NC, 24 V, 1/4in
Brand: Asco
SKU: SCE238D003.24/DC
Availability: OutOfStock

Part Number : SCE238D003.24/DC

Availability: Sold out

Detailed Description
Specifications

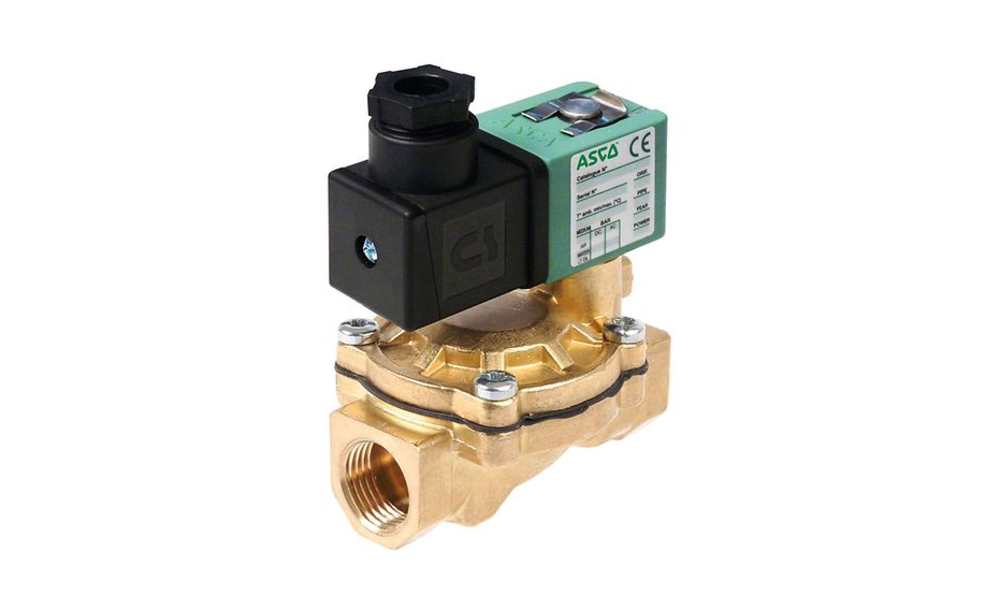

The Asco solenoid valve from the series 238 is engineered for optimal performance across a multitude of applications, effortlessly managing the control of water, air, and other compatible gases and liquids. Designed to operate seamlessly within ambient temperatures ranging from -10°C to +60°C, this valve combines durability and efficiency, ensuring consistent operation even in demanding environments. Its innovative pilot-operated design features a floating diaphragm, which is pivotal in enhancing responsiveness for critical operations. The integration of advanced materials not only guarantees reliability but also assures compliance with all relevant EU directives, making it a viable choice for those who prioritise safety and performance. This solenoid valve stands as a testament to precision engineering, thereby serving as an essential component for any automated control system.

Minimum operating pressure differential promotes efficient actuation
Interchangeable magnetic heads simplify maintenance and versatility
Crafted to meet stringent EU directives for peace of mind
Fits standard pipe connections for easy integration
Equipped with robust electrical characteristics to ensure safety
Designed for ambient temperature resilience, ensuring consistency
Offers a wide selection of voltage options for varying needs
Spade plug connectors provide a reliable connection standard
Explosion proof options available for enhanced operational safety
Can be mounted in any position without affecting functionality

Brand	Asco
Supply Voltage	24 V
Number of Ports	2
Connection Size	1/4in
Connection	G 1/4
Operation	Pilot
Default Valve Position	NC
Suitable Applications	Air, Inert Gas, Water
Type	Solenoid
Orifice Diameter	15mm
Body Material	Brass
Series	238
Maximum Working Pressure	10 bar
Operating Temperature Range	-10 → +60 °C
Servo Assist	No
Maximum Operating Temperature	+60°C
Minimum Operating Temperature	-10°C
Thread Standard or Connection Type	G
Flow Factor Kv	70L/min
