ASCO SCE238D005.230/50-60, Solenoid Valve , 2 port(s) , NC, 230 V ac, 1in

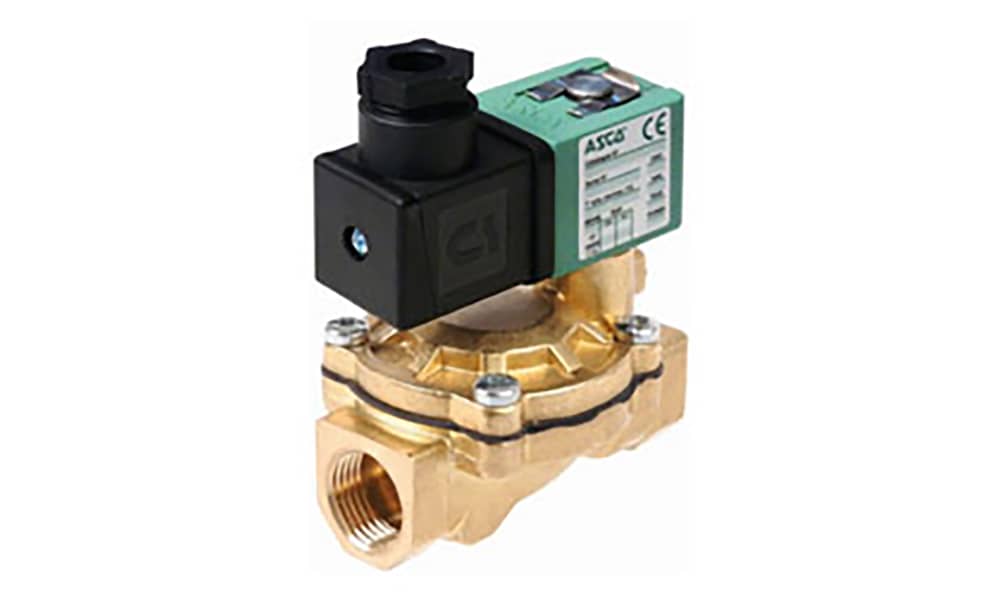

Name: ASCO SCE238D005.230/50-60, Solenoid Valve , 2 port(s) , NC, 230 V ac, 1in
Brand: Asco
SKU: SCE238D005.230/50-60
Availability: OutOfStock

Part Number : SCE238D005.230/50-60

Availability: Sold out

Detailed Description
Specifications

Assisted control 2//2 solenoid valves

Range of 2//2 NC solenoid valves with power assistance, non supported diaphragm.
Solenoid valve operation with minimum Δ P of 0.3 bar for the 238 series and 0.35 bar for the 210 series.
Brass body.

Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left-hand side of the diagram describes the valves operation when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and is described on the right-hand side of the diagram. The 3 / 2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2 / 2-way valves as two ways. The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications indicates the appropriate connections and pressure capabilities when an alternative circuit function is required.

Brand	Asco
Supply Voltage	230 V ac
Number of Ports	2
Connection Size	1in
Connection	1 in G Female
Operation	Pilot
Default Valve Position	NC
Suitable Applications	Air, Neutral Gas, Oil, Water
Type	2/2
Orifice Diameter	25mm
Body Material	Brass
Series	238
Maximum Working Pressure	10 bar
Operating Temperature Range	-10 → +85 °C
Minimum Operating Temperature	-10°C
Connection Gender	Female
Maximum Operating Temperature	+85°C
Thread Standard or Connection Type	G
Maximum Opening Time	70ms
Maximum Closing Time	200ms
