ASCO SCG238E016.24/DC, Solenoid Valve , 2 port(s) , NC, 24 V, 1.25in

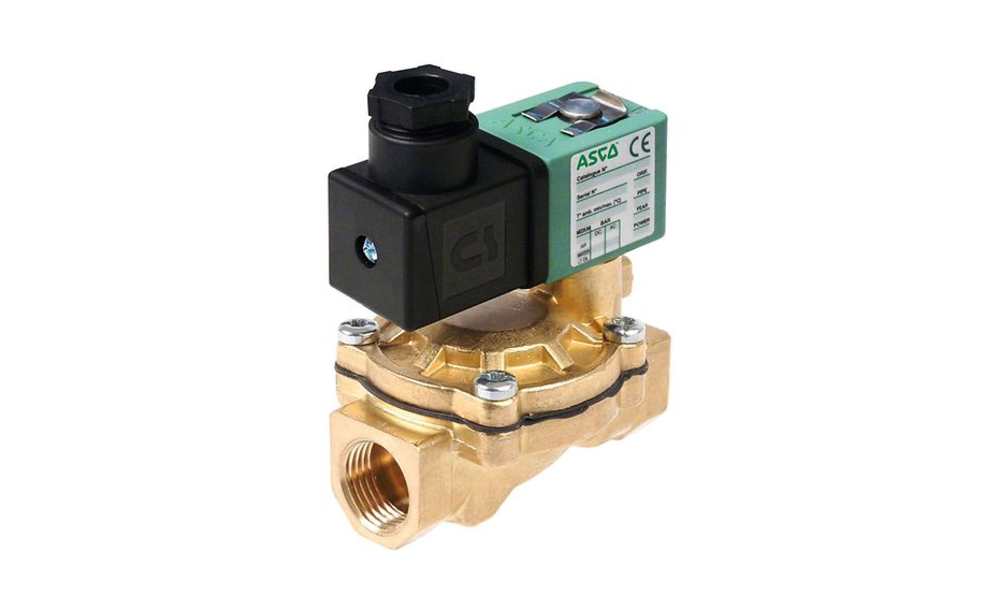

Name: ASCO SCG238E016.24/DC, Solenoid Valve , 2 port(s) , NC, 24 V, 1.25in
Brand: Asco
SKU: SCG238E016.24/DC
Availability: OutOfStock

Part Number : SCG238E016.24/DC

Availability: Sold out

Detailed Description
Specifications

The Asco Solenoid Valve is a pilot-operated valve with a built-in pilot and a floating diaphragm, designed for precise control in a variety of applications. Its body is made of durable brass, with internal parts crafted from stainless steel and brass for enhanced longevity. The valve features a high-performance NBR diaphragm and valve disc, along with FPM seals and pilot disc for tight sealing and reliable operation. The shading coil is made from copper to ensure efficient electrical conductivity. Operating within a temperature range of -10°C to +85°C, this solenoid valve is suitable for diverse industrial environments.

Two way valves for automatic control of water and other gases/liquids compatible with the sealing materials used
Interchangeability of magnetic heads AC and DC
Satisfies all relevant EU Directives

Brand	Asco
Supply Voltage	24 V
Number of Ports	2
Connection Size	1.25in
Connection	1-1/4 in G
Operation	Pilot
Default Valve Position	NC
Suitable Applications	Air, Inert Gas, Water
Type	Solenoid
Orifice Diameter	30mm
Series	238
Body Material	Brass
Maximum Working Pressure	10 bar
Operating Temperature Range	-10 → +60 °C
Servo Assist	No
Maximum Operating Temperature	+60°C
Thread Standard or Connection Type	G
Minimum Operating Temperature	-10°C
Flow Factor Kv	250L/min
