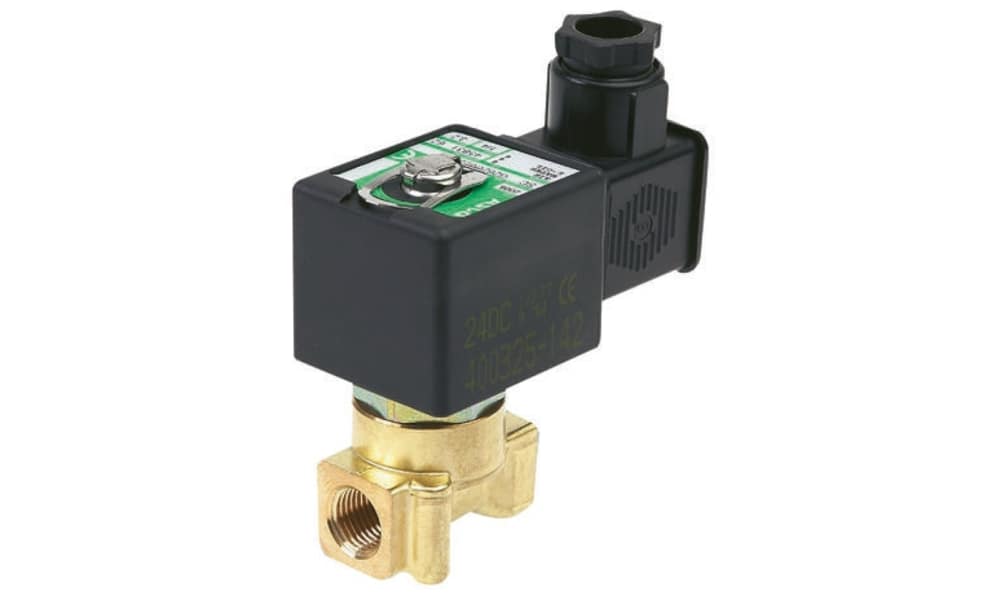

ASCO SCG262C090VM.24/50, Solenoid Valve , 2 port(s) , NC, 24 V ac, 1/4in

Name: ASCO SCG262C090VM.24/50, Solenoid Valve , 2 port(s) , NC, 24 V ac, 1/4in
Brand: Asco
SKU: SCG262C090VM.24/50
Availability: OutOfStock

Part Number : SCG262C090VM.24/50

Availability: Sold out

Detailed Description
Specifications

262 series 2 / 2 direct operated solenoid valves

2 / 2 N/C direct-operated solenoid valves for vacuum service, 1/4" outlet.
Special manufacturing procedures used to avoid molecular contamination.
Do not require a minimum operating pressure.
Suitable for low and medium vacuum service.
Rough vacuum up to 1.33.10-3 mbar.
Pluggable connectors.

Standards

ISO 4400 - IEC 335

Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left-hand side of the diagram describes the valves operation when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and is described on the right-hand side of the diagram. The 3 / 2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2 / 2-way valves as two ways. The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications indicates the appropriate connections and pressure capabilities when an alternative circuit function is required.

Brand	Asco
Supply Voltage	24 V ac
Number of Ports	2
Connection Size	1/4in
Connection	1/4 in G Female
Operation	Direct
Default Valve Position	NC
Suitable Applications	Air, Inert Gas, Oil, Water
Type	2/2
Orifice Diameter	7.1mm
Series	262
Body Material	Brass
Maximum Working Pressure	2.5 bar
Operating Temperature Range	-20 → +75 °C
Maximum Operating Temperature	+75°C
Thread Standard or Connection Type	G
Minimum Operating Temperature	-20°C
Connection Gender	Female
Maximum Opening Time	25ms
Flow Factor Kv	0.82m³/h
Maximum Closing Time	25ms
