ASCO SCG356A466VMS 24/50, Solenoid Valve , 3 port(s) , NC, 24 V ac, 1/4in

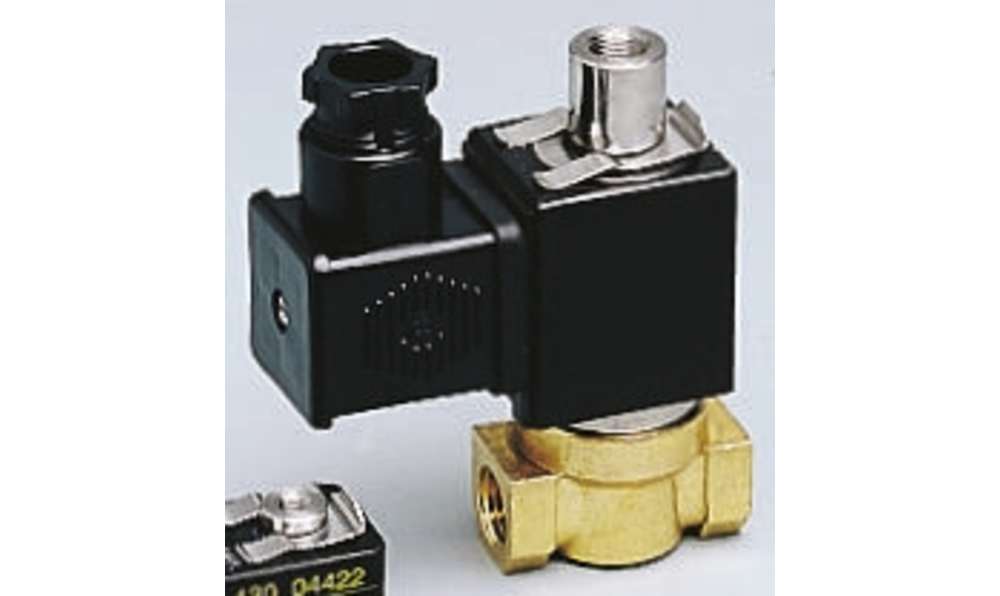

Name: ASCO SCG356A466VMS 24/50, Solenoid Valve , 3 port(s) , NC, 24 V ac, 1/4in
Brand: Asco
SKU: SCG356A466VMS 24/50
Availability: OutOfStock

Part Number : SCG356A466VMS 24/50

Availability: Sold out

Detailed Description
Specifications

Three-way, Zero Pressure, N/C Valves

Three-way solenoid valves with zero bar minimum operating pressure, normally closed with threaded port connection.

Brass body
Pressure not required for operation
Compact & lightweight
DIN plug connection
Ranging from -10°C to +100°C
Can be mounted in any position

3 Way Inert Gases and Fluid Valves

Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left hand side of the diagram describes the valves operation when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and this is described on the right hand side of the diagram, see the typical schematic diagram below.,The 3//2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2//2-way valves as two-way.,The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications will indicate the appropriate connections and pressure capabilities should an alternative circuit function be required.

Brand	Asco
Supply Voltage	24 V ac
Number of Ports	3
Connection Size	1/4in
Connection	1/4 in G Female
Operation	Direct
Default Valve Position	NC
Suitable Applications	Air, Inert Gas, Oil, Water
Type	3/2
Orifice Diameter	1.6mm
Body Material	Brass
Series	356
Maximum Working Pressure	10 bar
Operating Temperature Range	-10 → +60 °C
Maximum Operating Temperature	+60°C
Thread Standard or Connection Type	G
Connection Gender	Female
Minimum Operating Temperature	-10°C
Maximum Closing Time	10ms
Flow Factor Kv	0.08m³/h
Maximum Opening Time	10ms
