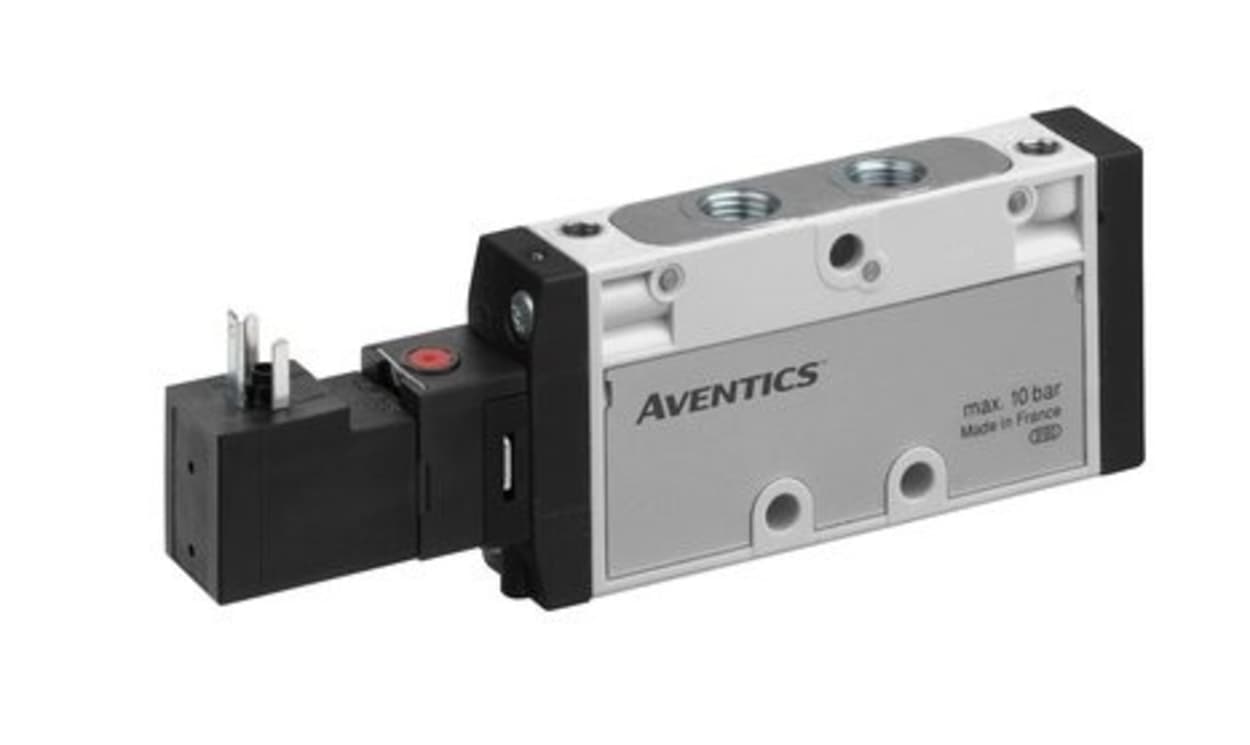

AVENTICS 0820060026 5/2 Pneumatic Solenoid Valve - Pilot/Pilot G 1/8 TC08 Series 24V dc

Name: AVENTICS 0820060026 5/2 Pneumatic Solenoid Valve - Pilot/Pilot G 1/8 TC08 Series 24V dc
Brand: Aventics
SKU: 0820060026
Availability: OutOfStock

Part Number : 0820060026

Availability: Sold out

Detailed Description
Specifications
Downloads

Aventics Pneumatic Solenoid Valve

The Aventics TC08 series 5/2 port directional valve has a maximum flow rate of 800L/min. This fibreglass reinforced PA pneumatic solenoid valve has a G1/8in and operating pressure ranging between 3bar and 10bar. Its solenoid voltage is 24VDC with 2W power consumption.

Features and Benefits

Duty cycle is 100%
External pilot option allowing vacuum applications
Form 'C' or M8 electrical connection options
Manifold mount
Manual override with detent
Maximum particle size is 5μm
Oil content of compressed air is up to 5mg/m3
Operating temperature ranging between -10°C and 50°C
Spool valve, non-overlapping

Certifications

IP65 rated
ISO 15217:2000

Brand	AVENTICS
Function	5/2
Connection Port Thread	G 1/8
Actuation Type	Pilot/Pilot
Manufacturer Series	TC08
Mounting Style	Manifold
Solenoid Voltage	24V dc
Solenoid Fitted	Yes
Number of Ports	5/2
Body Material	Fibreglass Reinforced PA
Maximum Flow Rate	800L/min
Solenoid Power Consumption	2W
Minimum Operating Pressure	3bar
Thread Size	1/8in
Maximum Operating Pressure	10bar
Maximum Operating Temperature	+50°C
Minimum Operating Temperature	-10°C
Thread Standard	G
