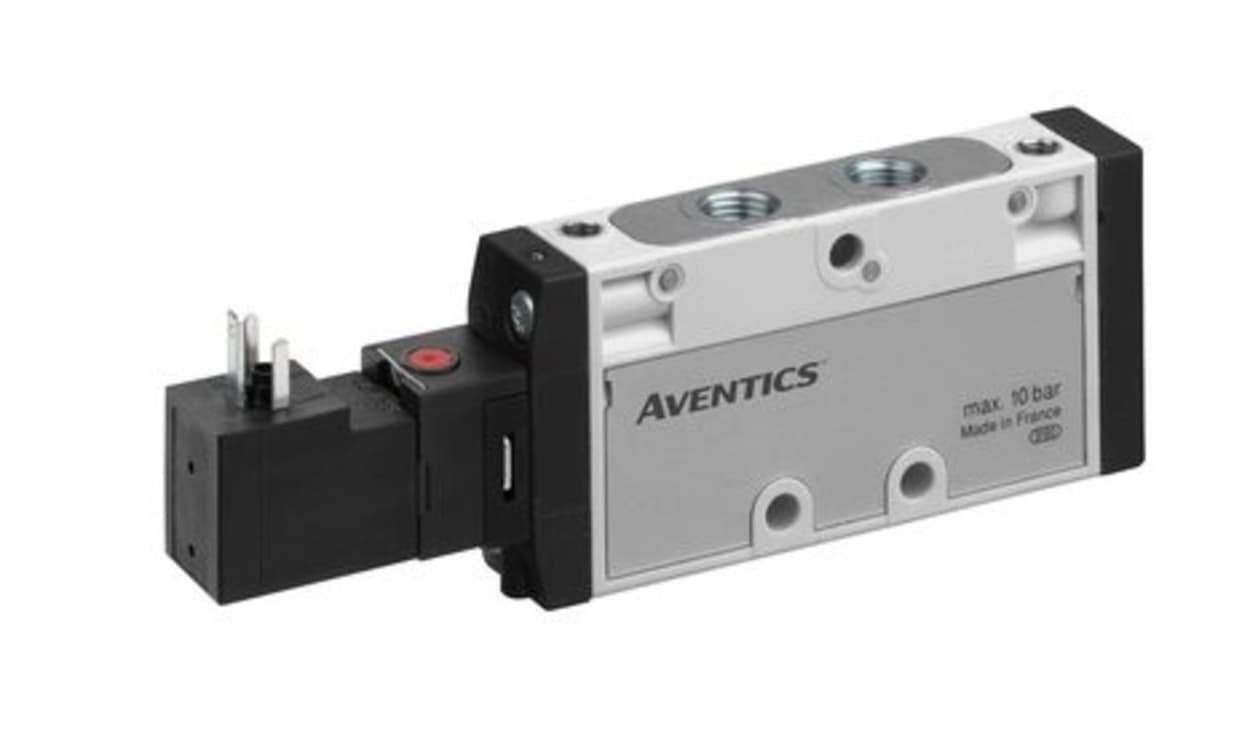

AVENTICS 0820060051 5/2 Pneumatic Solenoid Valve - Solenoid/Pilot G 1/8 TC08 Series 24V dc

Client Protection

Dedicated Support

Client Protection

Dedicated Support

AVENTICS 0820060051 5/2 Pneumatic Solenoid Valve - Solenoid/Pilot G 1/8 TC08 Series 24V dc

Name: AVENTICS 0820060051 5/2 Pneumatic Solenoid Valve - Solenoid/Pilot G 1/8 TC08 Series 24V dc
Brand: Aventics
SKU: 0820060051
Availability: OutOfStock

Part Number : 0820060051

Availability: Sold out

Detailed Description
Specifications

TC08 G1/8 Valves

A large flow from a 17mm wide body of 800 l/min for all 5 / 2 functions and 700 l/min for all 5 / 3 functions. This range of valves can also be mounted together on a 'P' stip manifold.

Spool valve, Non Overlapping
Form 'C' or M8 electrical connection options
External Pilot option allowing vacuum applications
Manual override with detent
Maximum partivle size 5μm
Oil content of compressed air 0 → 5mg/m³
100% duty cycle
Polyamide glass-fibre reinforced body

Rexroth TC08 Series

Brand	AVENTICS
Function	5/2
Connection Port Thread	G 1/8
Actuation Type	Solenoid/Pilot
Manufacturer Series	TC08
Mounting Style	Manifold
Solenoid Voltage	24V dc
Solenoid Fitted	Yes
Number of Ports	5/2
Body Material	Fibreglass Reinforced PA
Maximum Flow Rate	800L/min
Solenoid Power Consumption	2W
Minimum Operating Pressure	-0.9bar
Maximum Operating Temperature	+50°C
Maximum Operating Pressure	10bar
Thread Size	1/8in
Minimum Operating Temperature	-10°C
Thread Standard	G
