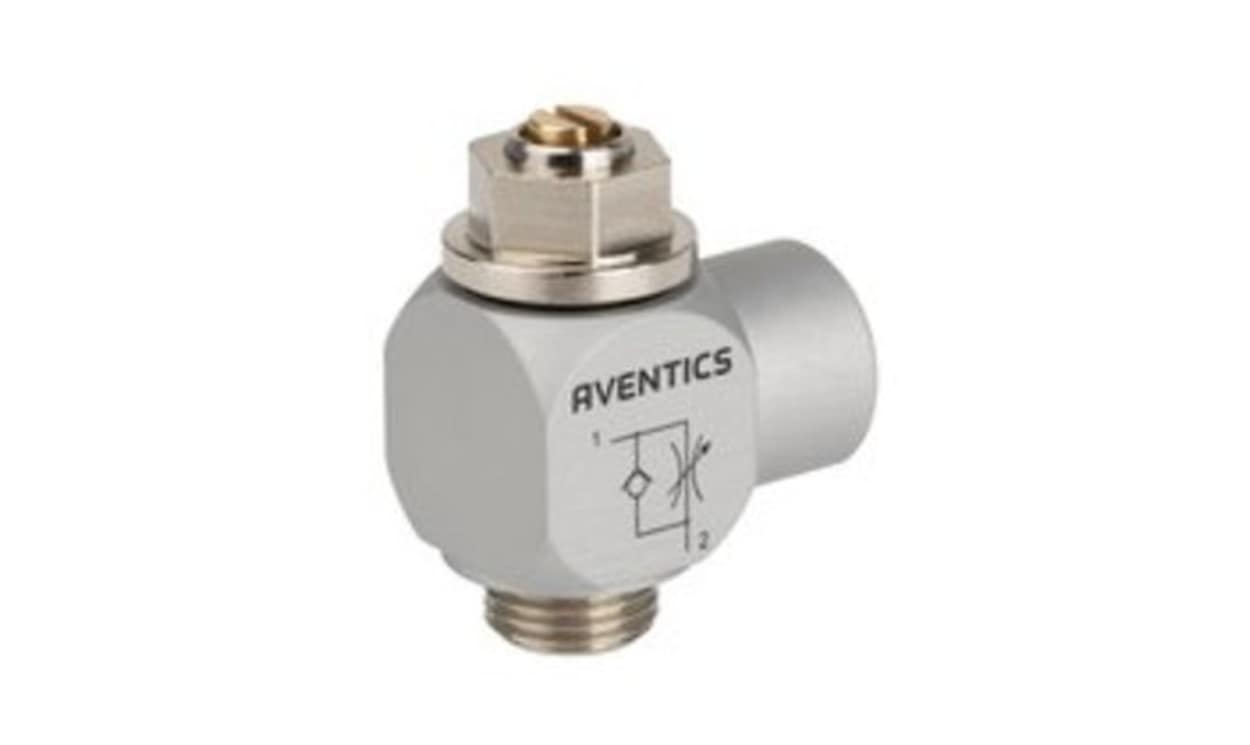

AVENTICS 0821200207 CC02-AL Series Threaded Flow Valve, G 1/2 Inlet Port x G 1/2 Female Outlet Port

Name: AVENTICS 0821200207 CC02-AL Series Threaded Flow Valve, G 1/2 Inlet Port x G 1/2 Female Outlet Port
Brand: Aventics
SKU: 0821200207
Availability: OutOfStock

Part Number : 0821200207

Availability: Sold out

Detailed Description
Specifications
Downloads

The Aventics Throttle Check Valve is a compact and lightweight solution designed for precise control of compressed air flow in industrial applications. It is available with internal and external thread.

Exhaust Air Throttling
Throttle bore diameter is 10 mm
Port diameters are G 1 by 2
Nominal flow is 2691 l per min

Brand	AVENTICS
Type	Valve
Inlet Port Type	Threaded
Threaded Inlet Port	G 1/2
Manufacturer Series	CC02-AL
Threaded Outlet Port	G 1/2 Female
Model Number p	0821200207

AVENTICS 0821200207 CC02-AL Series Threaded Flow Valve, G 1/2 Inlet Port x G 1/2 Female Outlet Port

DOWNLOAD CATALOG

0821200207 Datasheet - 0821200207 A700000012800272

0821200207 Datasheet - 0821200207 A700000012800805
