AVENTICS 0821200249 CC02-AL Series Tube Flow Valve, 10mm Tube Inlet Port x G 3/8 Outlet Port

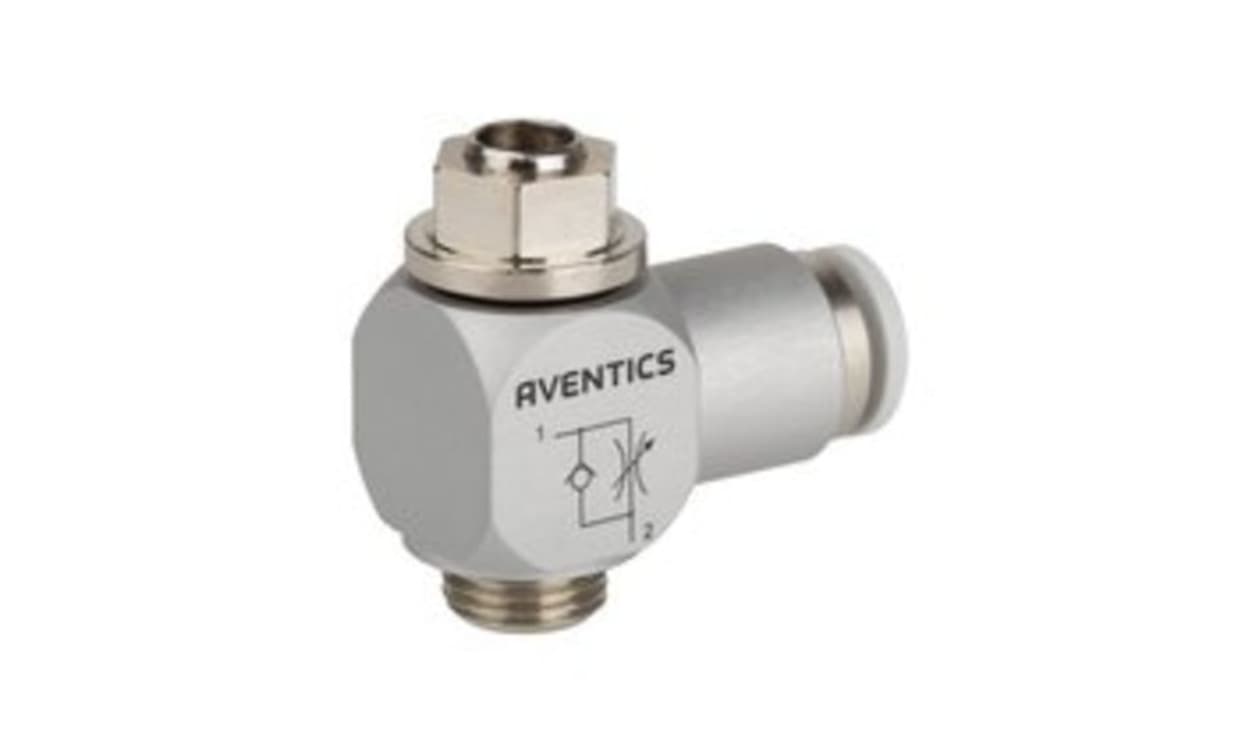

Name: AVENTICS 0821200249 CC02-AL Series Tube Flow Valve, 10mm Tube Inlet Port x G 3/8 Outlet Port
Brand: Aventics
SKU: 0821200249
Availability: OutOfStock

Part Number : 0821200249

Availability: Sold out

Detailed Description
Specifications
Downloads

The Aventics Throttle Check Valve is a compact and lightweight solution designed for precise control of compressed air flow in industrial applications. It is available with push in fitting and external thread.

Exhaust Air Throttling
Throttle bore diameter is 6.6 mm
Port diameters are 10 mm and G 3 by 8
Nominal flow is 900 l per min

Brand	AVENTICS
Type	Valve
Inlet Port Type	Tube
Tube Inlet Port	10mm
Manufacturer Series	CC02-AL
Threaded Outlet Port	G 3/8
Model Number p	0821200249

AVENTICS 0821200249 CC02-AL Series Tube Flow Valve, 10mm Tube Inlet Port x G 3/8 Outlet Port

DOWNLOAD CATALOG

0821200249 Datasheet - 0821200249 A700000012800414

0821200249 Datasheet - 0821200249 A700000012800950
