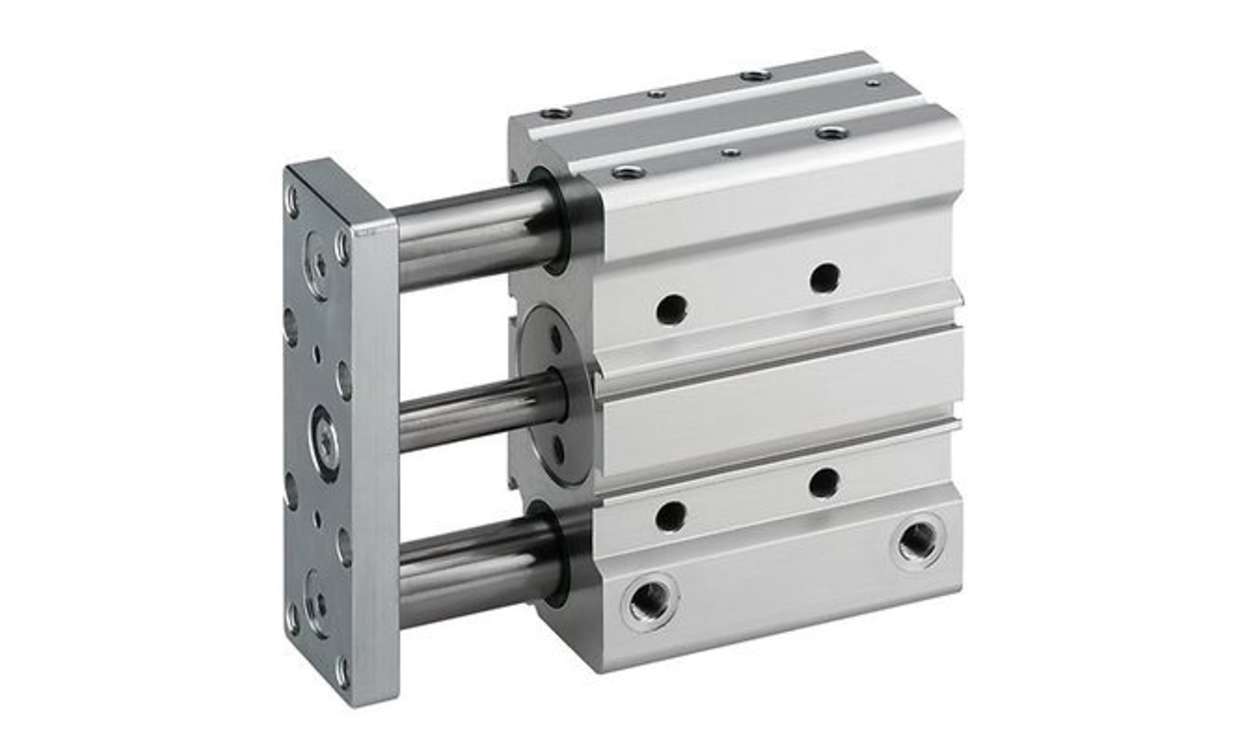

AVENTICS 0822067002 | GPC Pneumatic Guided Cylinder | 63 mm Bore, 75 mm Stroke, G 1/4 Port

Name: AVENTICS 0822067002 | GPC Pneumatic Guided Cylinder | 63 mm Bore, 75 mm Stroke, G 1/4 Port
Brand: Aventics
SKU: 0822067002
Availability: InStock

Part Number : 0822067002

AVENTICS 0822067002 pairs a 63 mm piston bore with 75 mm of stroke in a double-acting GPC guided cylinder body. Specified details for this 75 mm stroke, 63 mm bore model include G 1/4 ports, elastic cushioning and a 8 bar pressure rating.

Stroke 75 mm on a 63 mm bore (0822067002)
Double Acting, GPC series model, 63/75 mm
Temperature range of 0822067002: -10 °C to +70 °C
0822067002: maximum pressure 8 bar, piston speed 600 mm/s

Availability: low stock

Detailed Description
Specifications
Downloads

The Aventics Guide Cylinder from the GPC-BV series is engineered for robust performance in demanding industrial applications. This double-acting cylinder features a compact design expertly crafted to handle significant side loads and providing torsional stability. Designed to operate efficiently under various conditions, it delivers durability and precision thanks to its strong aluminium housing and high-quality polyurethane seals. Ideal for compressed air use, this cylinder is perfect for tasks requiring rapid retraction and extraction of loads.

Stainless steel piston rod enhance durability and longevity
Wide operating temperature range accommodates diverse working conditions
Integrated cushioning provides smooth and controlled piston movement
Adaptable design fits various mounting options for versatile use

Brand	AVENTICS
Manufacturer Series	GPC
Model Number p	0822067002
Stroke	75mm
Action	Double
Bore	63mm
Pneumatic Connection	G 1/4
Port Connection	G 1/4
Cushioning Type	Elastic
Maximum Operating Pressure	8 bar
Piston Speed	600mm/s
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+70°C

AVENTICS 0822067002 | GPC Pneumatic Guided Cylinder | 63 mm Bore, 75 mm Stroke, G 1/4 Port

DOWNLOAD CATALOG

0822067002 Datasheet - 0822067002 A700000012556396

0822067002 Datasheet - 0822067002 A700000012571637
