AVENTICS R480637957 | SSI Double-Acting Pneumatic Cylinder | 32 mm Bore, 10 mm Stroke, G 1/8 Ports
With a 32 mm bore and 10 mm stroke, AVENTICS R480637957 is a double-acting SSI cylinder. Maximum pressure for R480637957 is 10 bar, and it follows ISO 15524.
- Cylinder size 32 x 10 mm (bore x stroke)
- Air connection G 1/8, 10 mm stroke version
- Rod thread gender female, part R480637957
- Cushioning type elastic on R480637957
- Rated ambient -20 to +80 °C for part R480637957
- Series SSI, double acting, 32 x 10 mm
- Detailed Description
- Specifications
- Downloads
Robust aluminium and stainless steel materials ensure durability in industrial environments
Maintains performance across a varied temperature range
Designed to operate efficiently with compressed air as the working medium
| Brand | AVENTICS |
| Manufacturer Series | SSI |
| Model Number P | R480637957 |
| Action | Double |
| Bore | 32 mm (1.26 in) |
| Stroke | 10 mm (0.394 in) |
| Pneumatic Connection | G 1/8 |
| Port Connection | G 1/8 |
| Cushioning Type | Elastic |
| Maximum Operating Pressure | 10 bar (145 psi) |
| Maximum Operating Temperature | +80 °C (176 °F) |
| Minimum Operating Temperature | -20 °C (-4 °F) |
| Piston Rod Thread Gender | Female |
| ISO Standard | ISO 15524 |
| Stroke Interval Weight | 0.039 @ 10 mm kg/mm |
| Test Weight | 0.216 kg (0.48 lb) |
Related Products

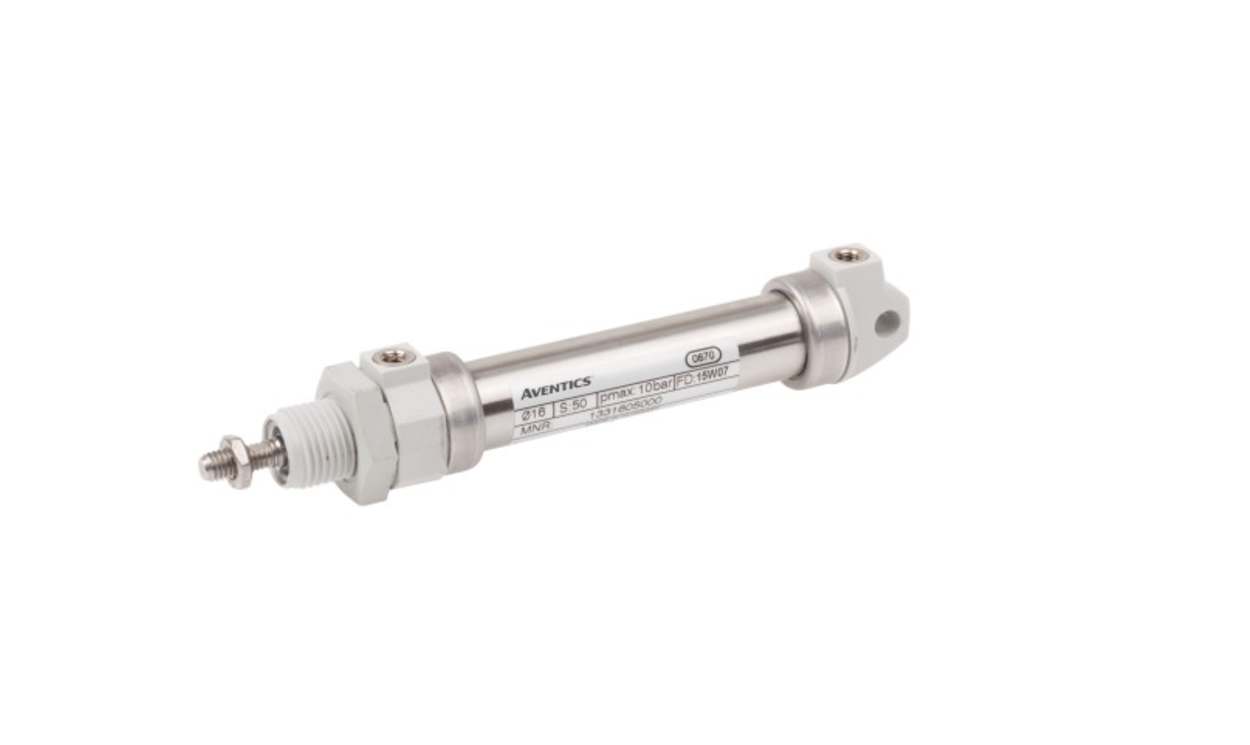

AVENTICS 1332010000 | ICM Double-Acting Roundline Cylinder | 20 mm Bore, 100 mm Stroke
AVENTICS 1332010000 | ICM Double-Acting Roundline Cylinder | 20 mm Bore, 100 mm Stroke

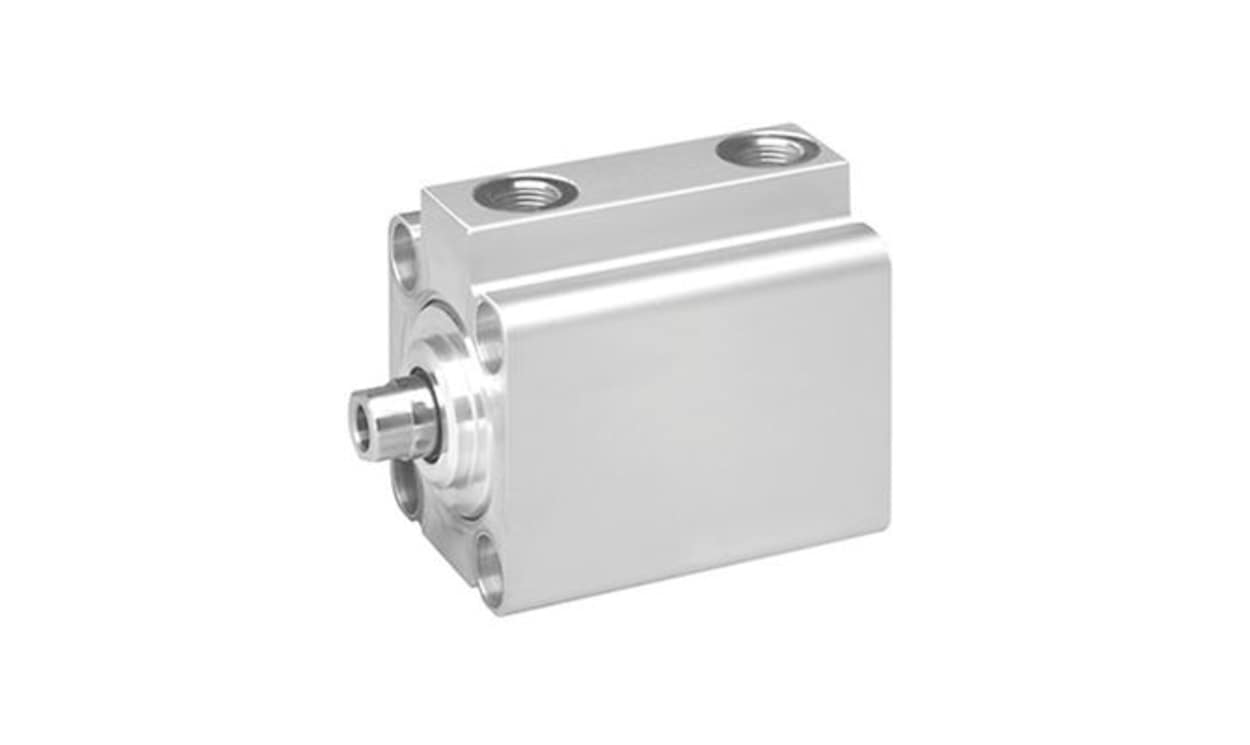

AVENTICS 822010504 | KHZ Piston Rod Cylinder | 12 mm Bore, 25 mm Stroke, Double Acting
AVENTICS 822010504 | KHZ Piston Rod Cylinder | 12 mm Bore, 25 mm Stroke, Double Acting

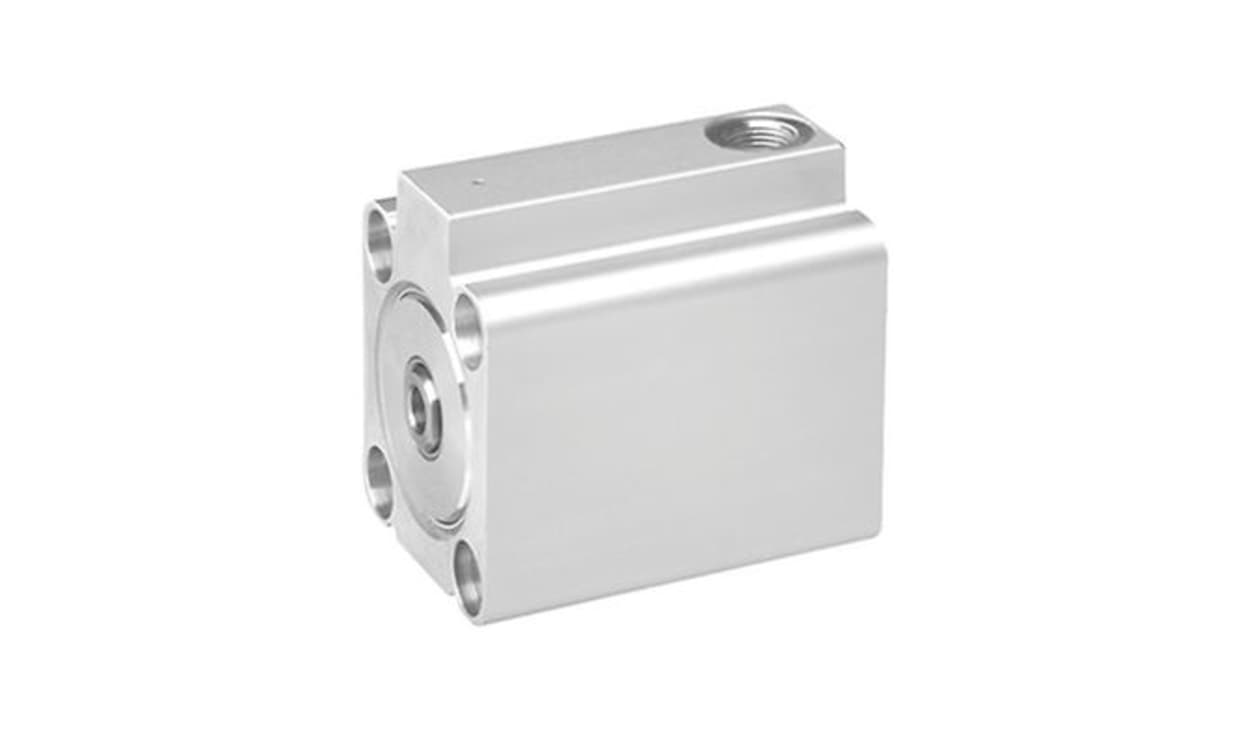

AVENTICS 0822406342 | KHZ Single Acting Piston Rod Cylinder | 32 mm Bore, 25 mm Stroke, G 1/8 Port
AVENTICS 0822406342 | KHZ Single Acting Piston Rod Cylinder | 32 mm Bore, 25 mm Stroke, G 1/8 Port

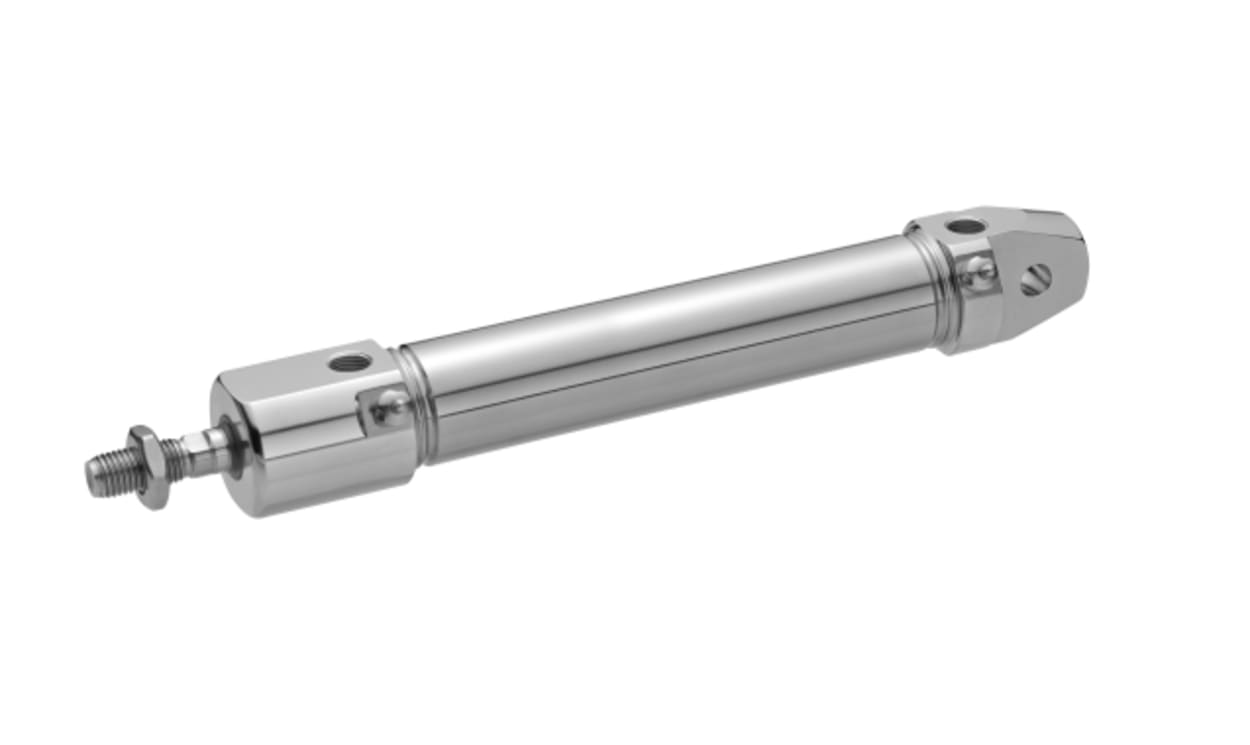

AVENTICS R412020438 | CSL-RD Double-Acting Round Cylinder | 16 mm Bore, 250 mm Stroke, Adjustable Cushioning
AVENTICS R412020438 | CSL-RD Double-Acting Round Cylinder | 16 mm Bore, 250 mm Stroke, Adjustable Cushioning

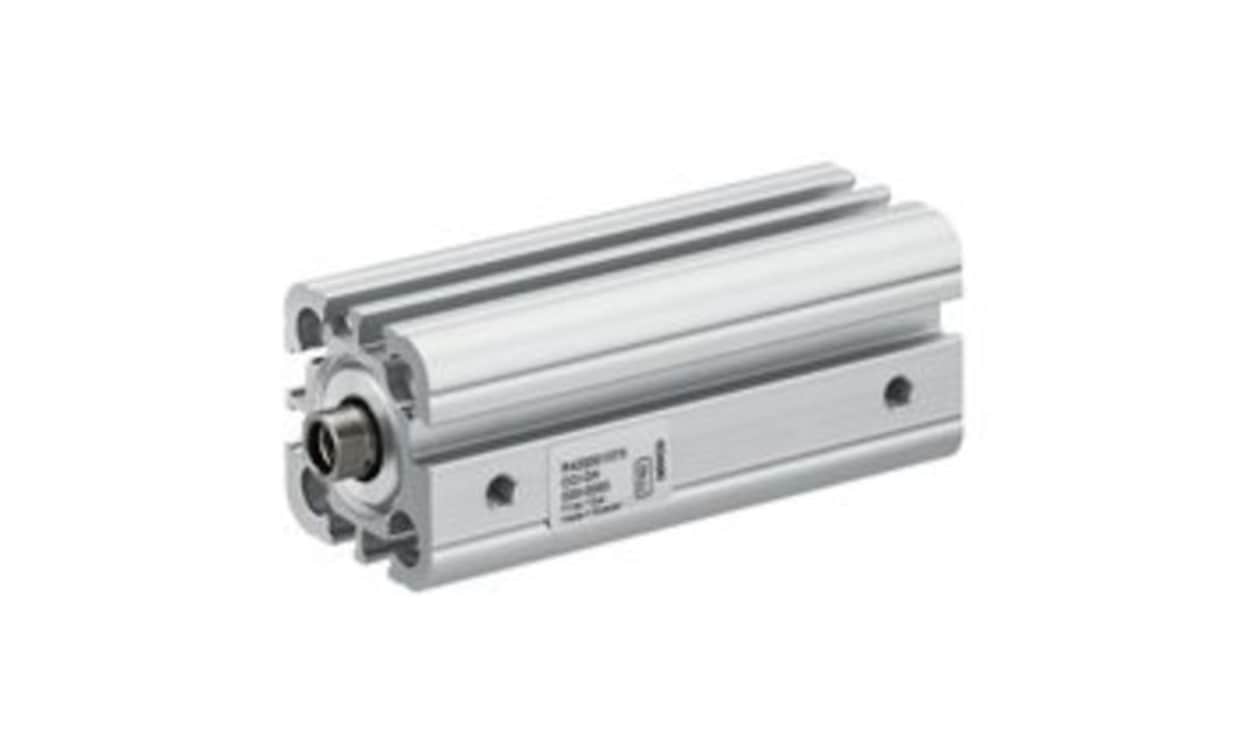

AVENTICS R422001002 | CCI Double-Acting Compact Cylinder | 16 mm Bore, 5 mm Stroke
AVENTICS R422001002 | CCI Double-Acting Compact Cylinder | 16 mm Bore, 5 mm Stroke

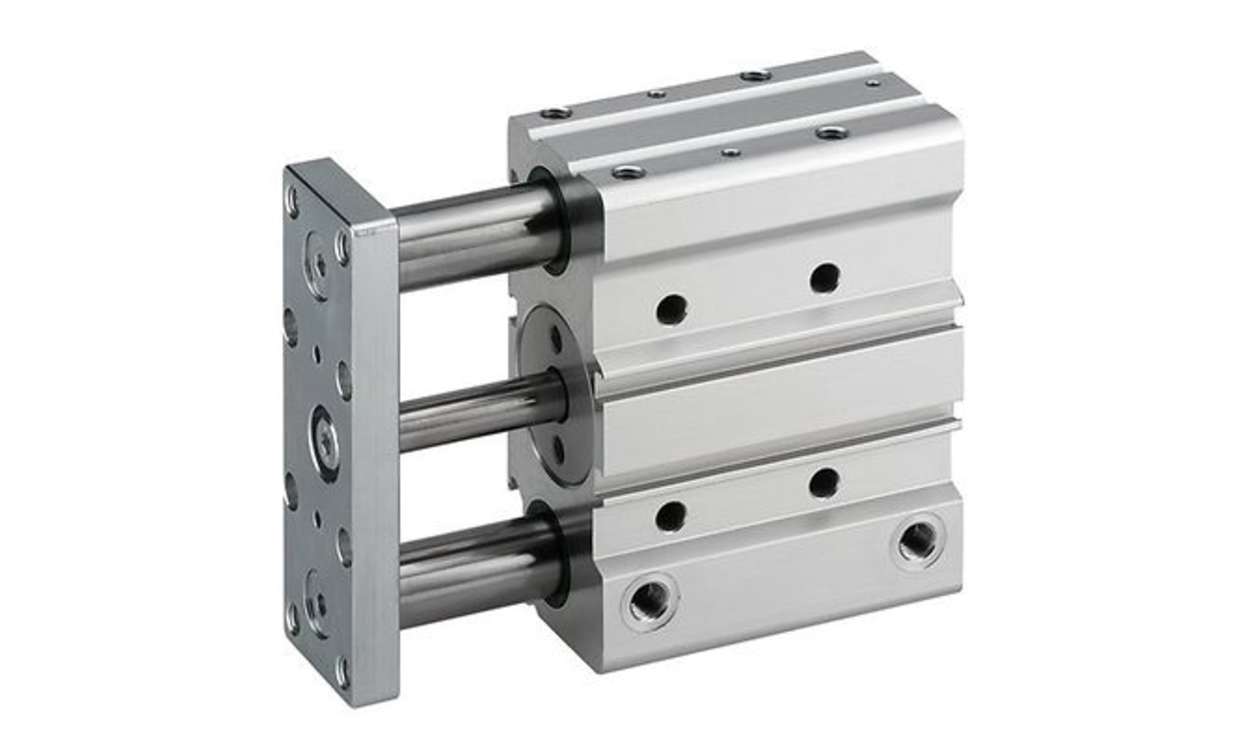

AVENTICS R402000296 | GPC Double-Acting Guided Cylinder | 10 mm Bore, 20 mm Stroke
AVENTICS R402000296 | GPC Double-Acting Guided Cylinder | 10 mm Bore, 20 mm Stroke

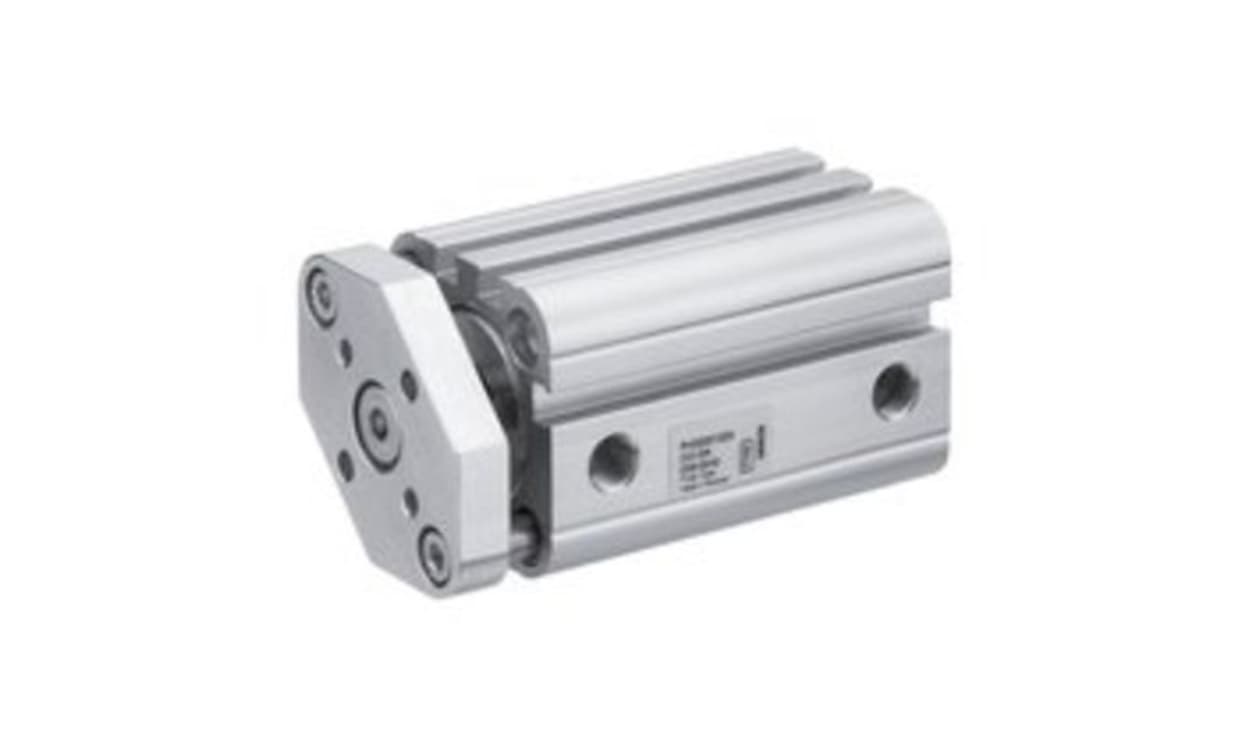

AVENTICS R422001300 | 100 mm Bore, 20 mm Stroke CCI Compact Cylinder | Double Acting, G 1/8
