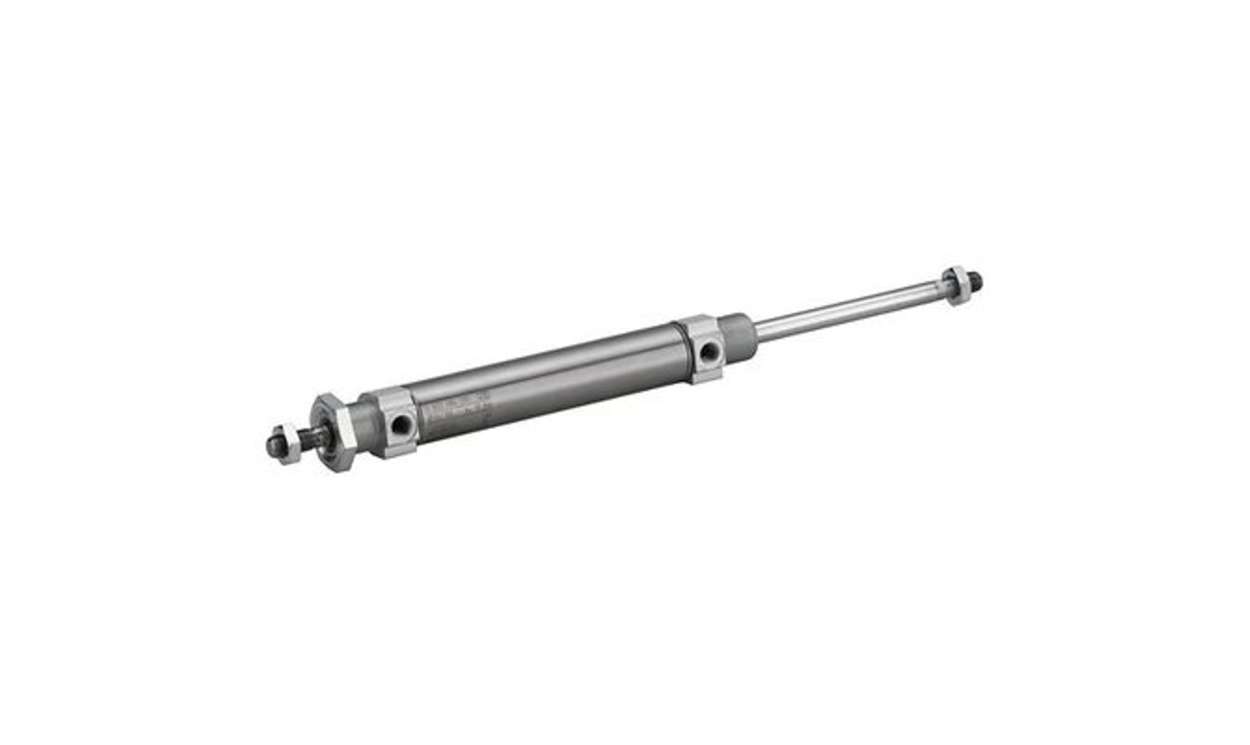

AVENTICS 0822083202 Roundline Cylinder - , 20mm Bore, 25mm Stroke, MNI Series, Double Acting

Name: AVENTICS 0822083202 Roundline Cylinder - , 20mm Bore, 25mm Stroke, MNI Series, Double Acting
Brand: Aventics
SKU: 0822083202
Availability: OutOfStock

Part Number : 0822083202

Availability: Sold out

Detailed Description
Specifications

The Aventics mini cylinder from aventics is expertly designed to meet the rigorous demands of general machine construction. Combining a robust build with an impressive service life, the Series MNI mini cylinders offer seamless performance in various industrial applications. Engineered to ISO 6432 standards, this double-acting cylinder is particularly suited for environments that require reliable operation under fluctuating conditions. The emphasis on safety and compliance is evident with features like elastic cushioning and the optional ATEX certification, making it a versatile option for handling compressed air in diverse settings. Its compact dimensions and lightweight construction further enhance installation flexibility, ensuring that it fits seamlessly into your machinery without compromising strength or efficiency.

Designed for general machine construction with robust durability
Complies with ISO 6432 standards for dependable performance
Double-acting functional principle ensures efficient operation
Elastic cushioning provides enhanced impact absorption
Lightweight design facilitates easy installation and handling
ATEX certification option available for use in hazardous areas
Wide ambient temperature range caters to diverse industrial environments
Various materials used for components ensure longevity and reliability
Minimal maintenance required, promoting prolonged service intervals
Optimal performance with compressed air across varying pressures

Brand	AVENTICS
Manufacturer Series	MNI
Model Number p	0822083202
Action	Double
Stroke	25mm
Bore	20mm
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Piston Rod Thread Gender	Male
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C
