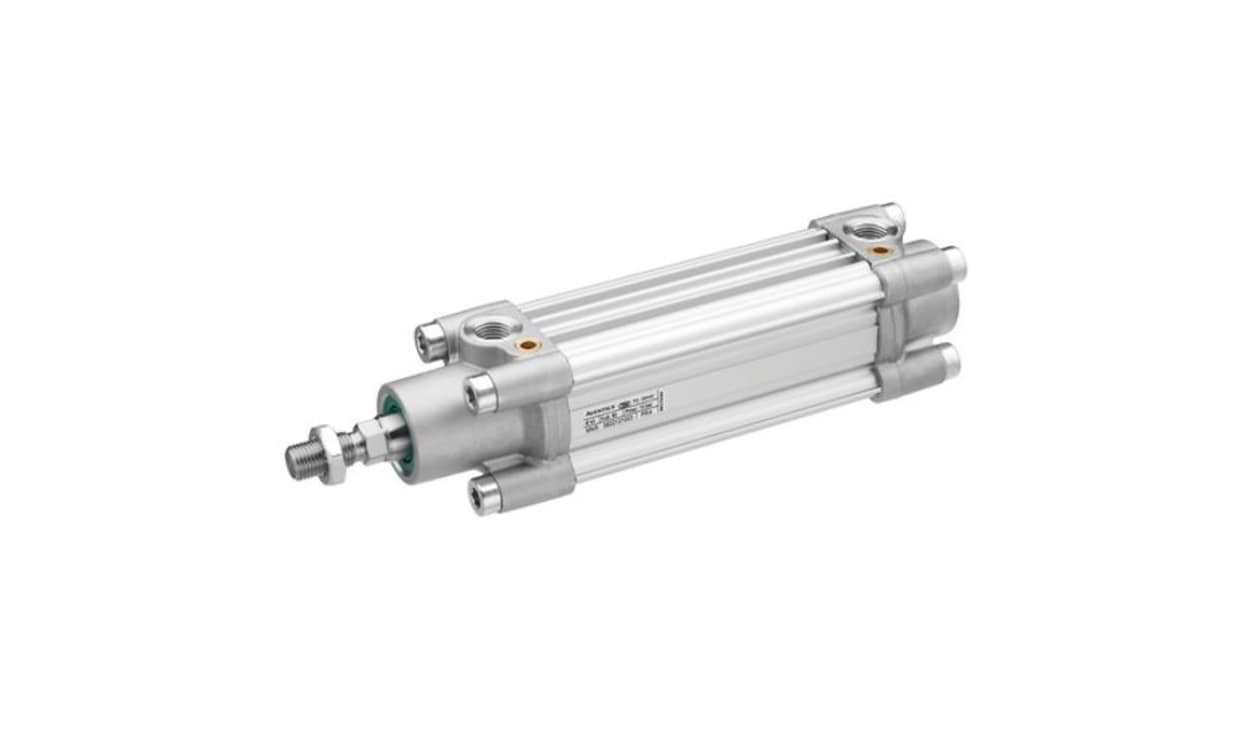

AVENTICS 0822124002 | PRA Pneumatic Piston Rod Cylinder | 80 mm Bore, 50 mm Stroke, G 3/8 Port
This double-acting AVENTICS piston rod cylinder, part number 0822124002, belongs to the PRA series and combines a 80 mm bore with a 50 mm stroke. At 50 mm stroke it is supplied with G 3/8 ports, pneumatic cushioning and a 10 bar pressure rating.
- 80 mm bore with 50 mm stroke (0822124002)
- Double Acting, PRA series design, 80/50 mm
- Rated for -20 °C to +80 °C ambient (0822124002)
- 0822124002: maximum pressure 10 bar
- Standard: ISO 15552, male piston rod thread on the 80 mm bore, 50 mm stroke model
- Detailed Description
- Specifications
- Downloads
Modular sealing system allows for adaptability
Advanced pneumatic end position cushioning
Additional elastic damping elements
Wide range of variants and accessories available in the configurator
| Brand | AVENTICS |
| Manufacturer Series | PRA |
| Model Number P | 0822124002 |
| Action | Double |
| Bore | 80 mm (3.15 in) |
| Stroke | 50 mm (1.97 in) |
| Pneumatic Connection | G 3/8 |
| Port Connection | G 3/8 |
| Cushioning Type | Pneumatic Cushioning |
| Maximum Operating Pressure | 10 bar (145 psi) |
| Maximum Operating Temperature | +80 °C (176 °F) |
| Minimum Operating Temperature | -20 °C (-4 °F) |
| Piston Rod Thread Gender | Male |
| ISO Standard | 15552 |
| Dimensions | 128 x 30 mm (5.04×1.18 in) |
| Length | 128 mm (5.04 in) |
| Diameter | 30 mm (1.18 in) |
| VDMA Standard | ISO 15552 |
