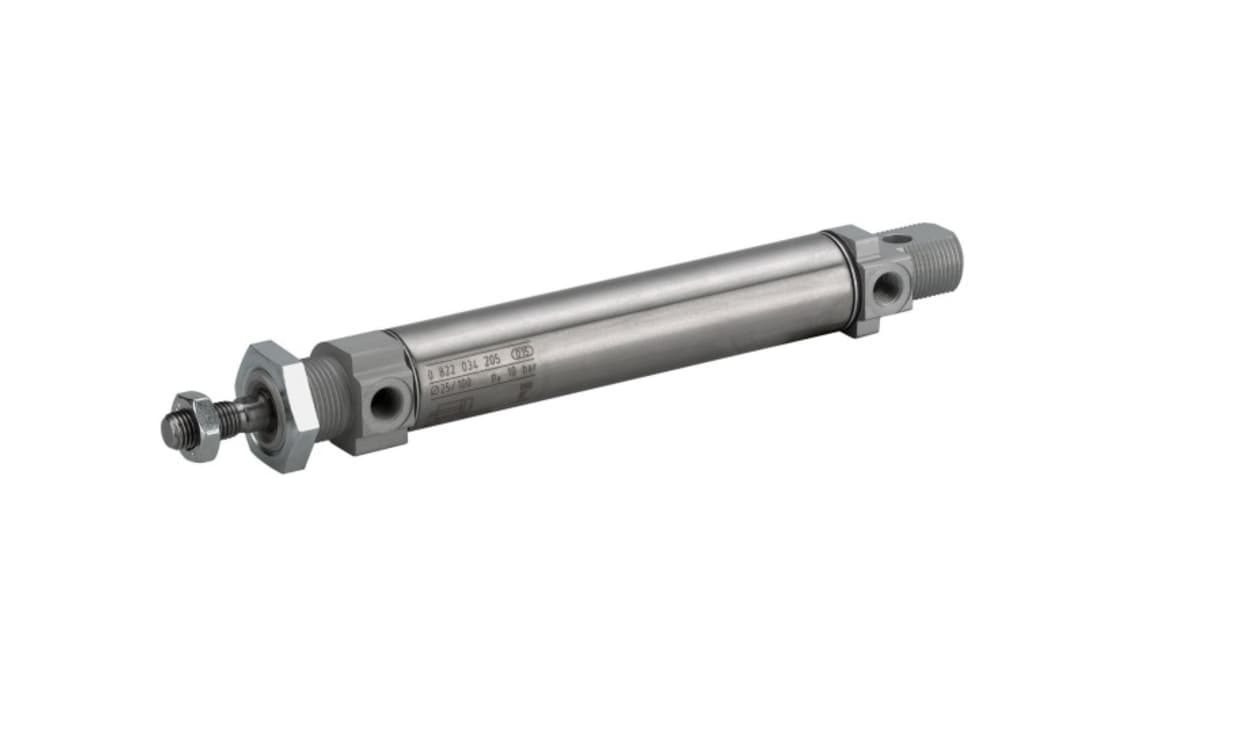

AVENTICS 0822331206 | Roundline Cylinder | 12 mm Bore, 125 mm Stroke, MNI Series

Name: AVENTICS 0822331206 | Roundline Cylinder | 12 mm Bore, 125 mm Stroke, MNI Series
Brand: Aventics
SKU: 0822331206
Availability: InStock

Part Number : 0822331206

The AVENTICS 0822331206 pairs a 125 mm stroke with a 12 mm bore in a double-acting Roundline cylinder from the MNI series. Its ISO 6432 design with M5 ports suits the 12 mm bore and 125 mm stroke combination.

12 mm bore, 125 mm stroke
Maximum operating pressure: 10 bar (12 x 125 mm)
Temperature range -25 to +80 °C (12 x 125 mm)
ISO 6432 cylinder design (12 x 125 mm)
Air connection thread M5
Cushioning: elastic for the 12 mm bore

Availability: low stock

Detailed Description
Specifications
Downloads

The Aventics Mini Cylinder from the Series MNI exemplifies precision engineering designed specifically for diverse industrial applications. The robust construction ensures a long service life, making it ideal for general machine construction tasks. Engineered to conform with ISO 6432 standards, this double-acting cylinder features a compact design without compromising on performance. It is equipped with elastic cushioning for smooth operation and includes a magnetic piston, ensuring enhanced functionality.

Compatible with ATEX certification for hazardous locations
Standardised connection ports facilitate easy integration
Wide temperature range allows for versatility in different conditions
Lightweight design assists in reducing overall system weight

Brand	AVENTICS
Manufacturer Series	MNI
Model Number p	0822331206
Action	Double
Bore	12mm
Stroke	125mm
Pneumatic Connection	M5
Port Connection	M5
Piston Rod Thread Gender	Male
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-25°C

AVENTICS 0822331206 | Roundline Cylinder | 12 mm Bore, 125 mm Stroke, MNI Series

DOWNLOAD CATALOG

0822331206 Datasheet - 0822331206 A700000012557634

0822331206 Datasheet - 0822331206 A700000012572369
